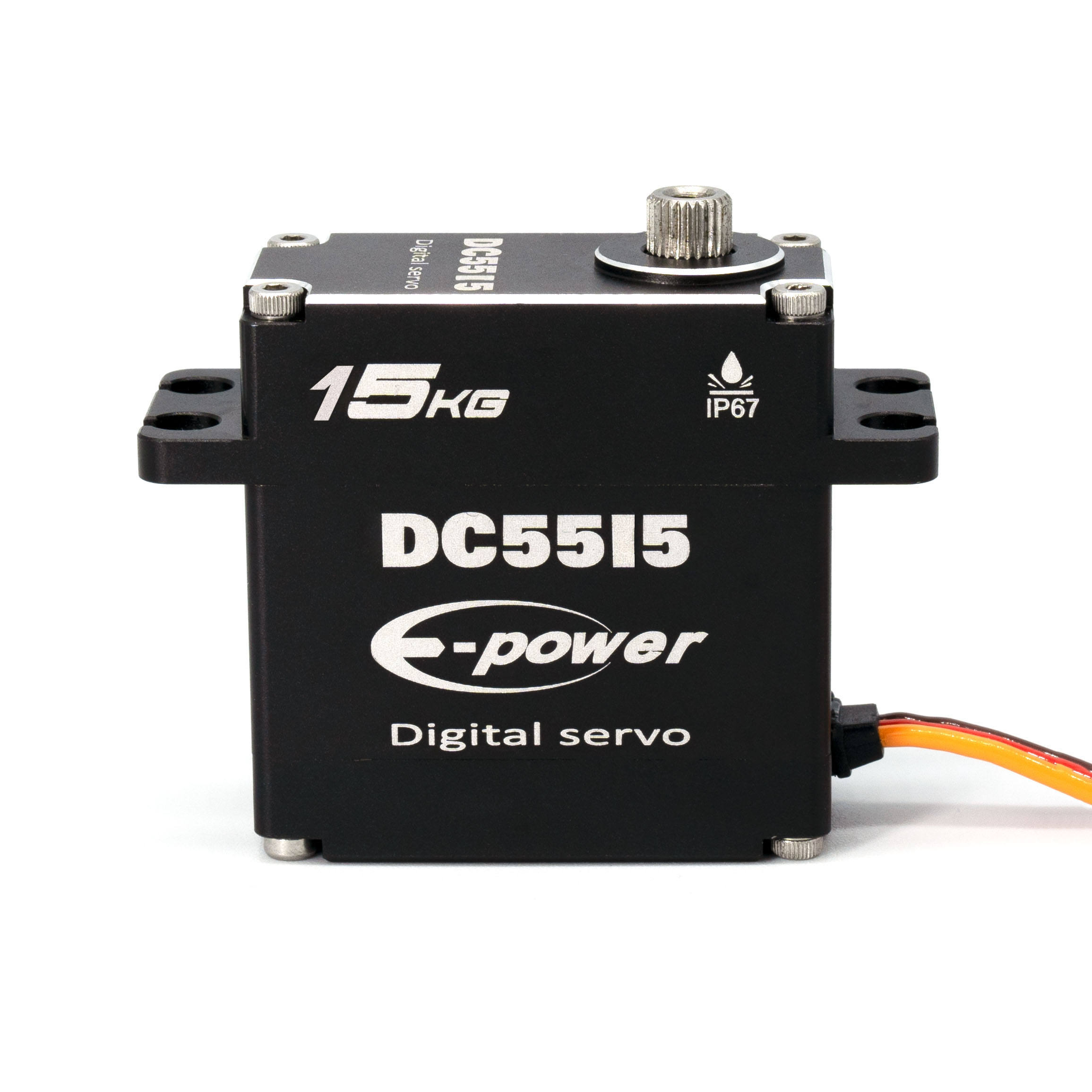

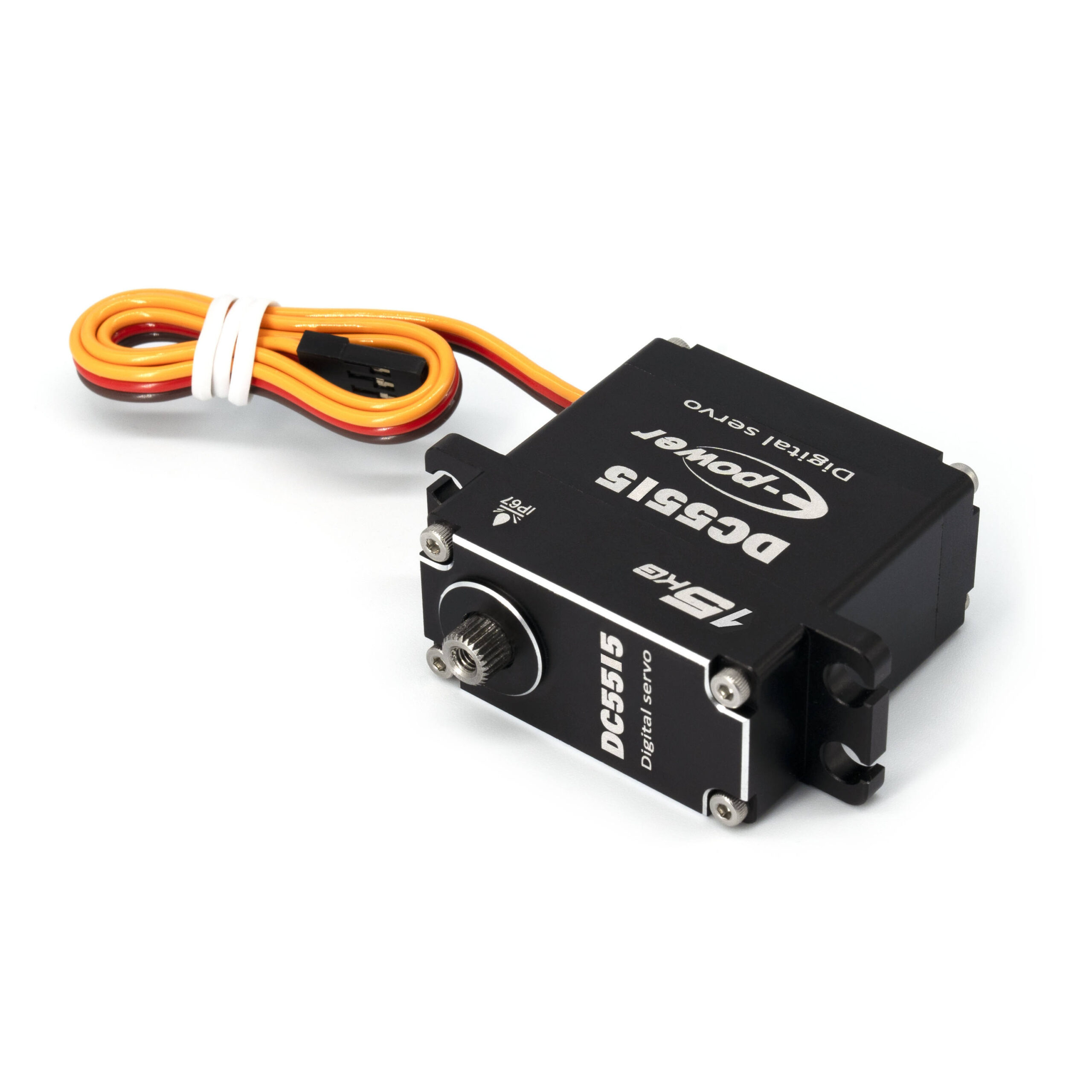

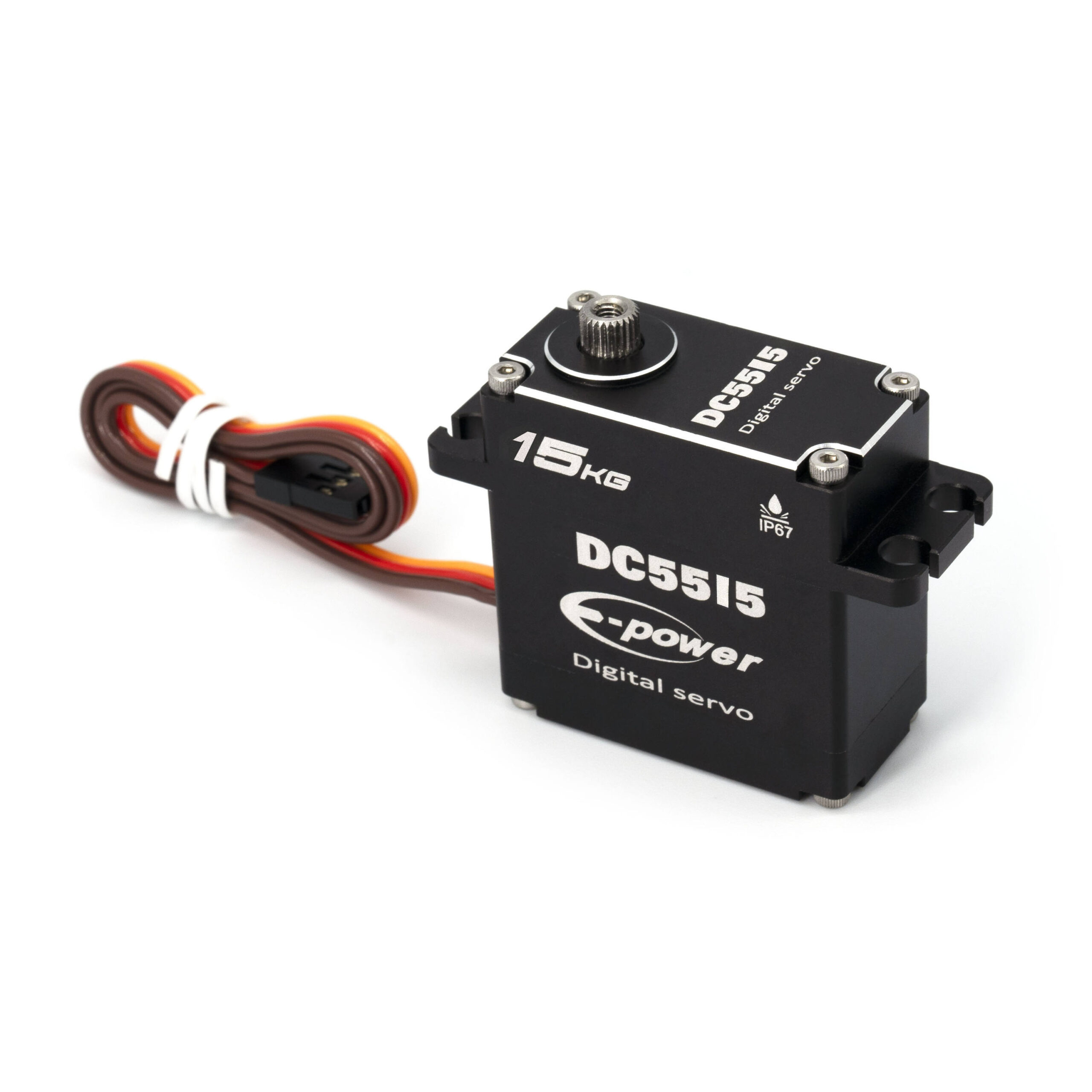

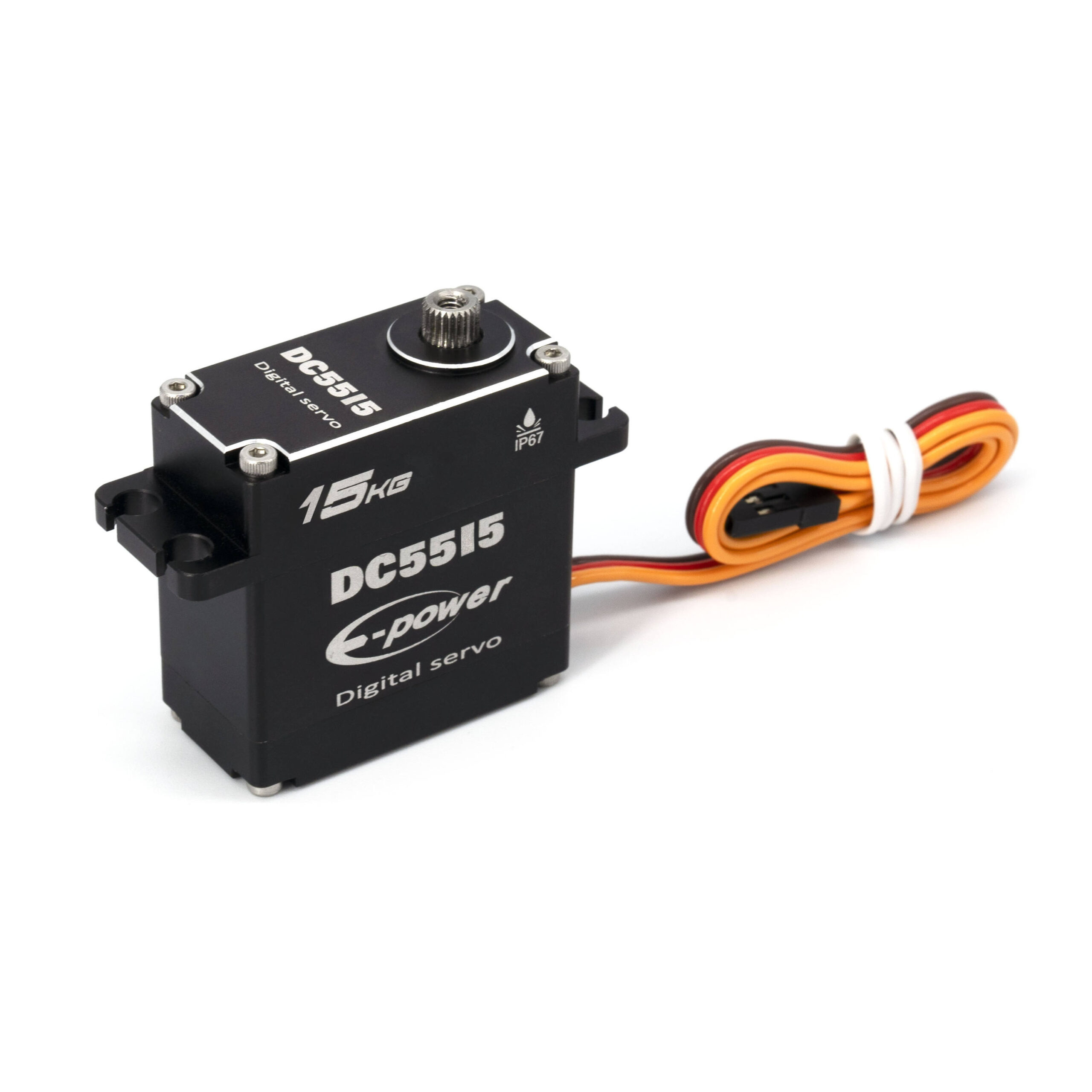

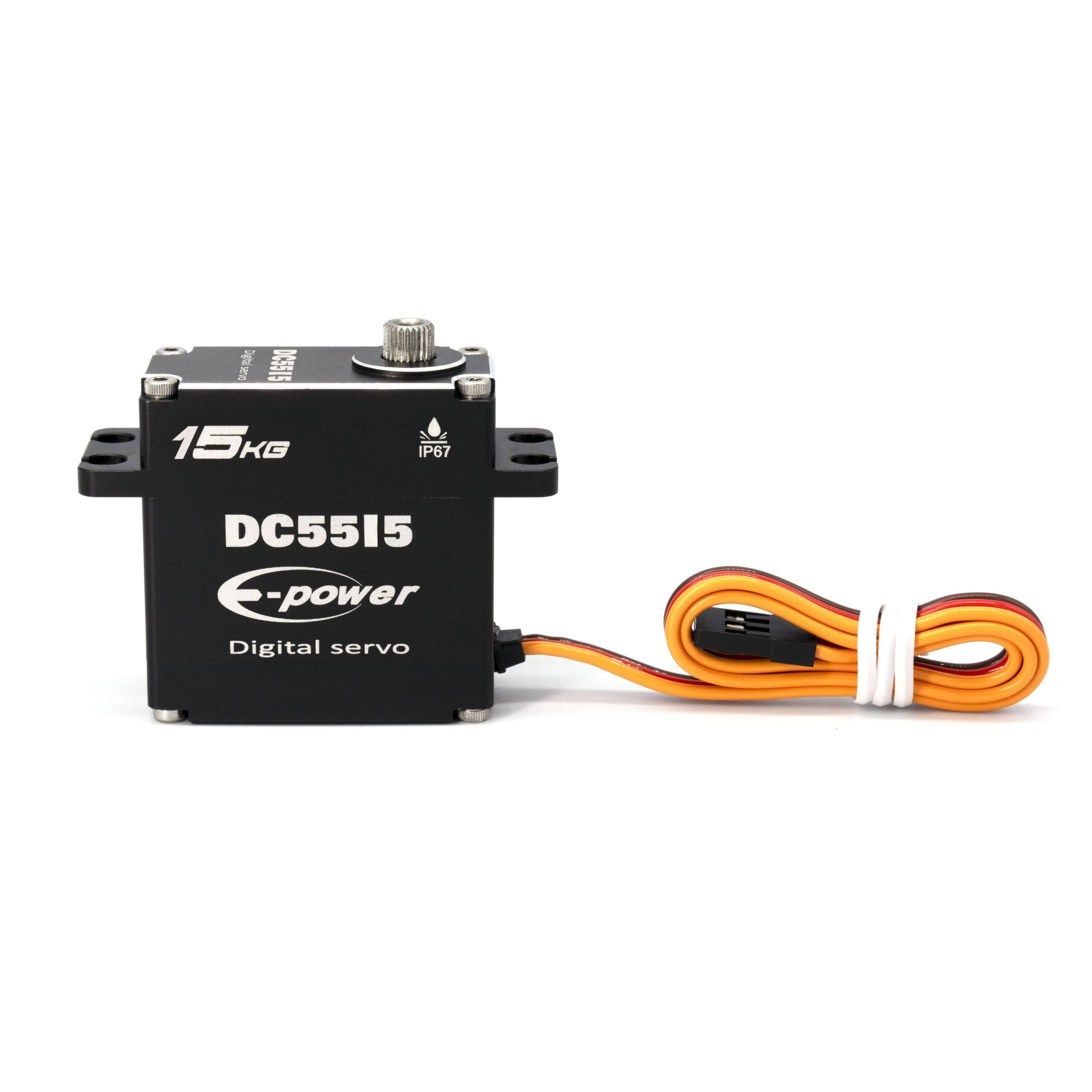

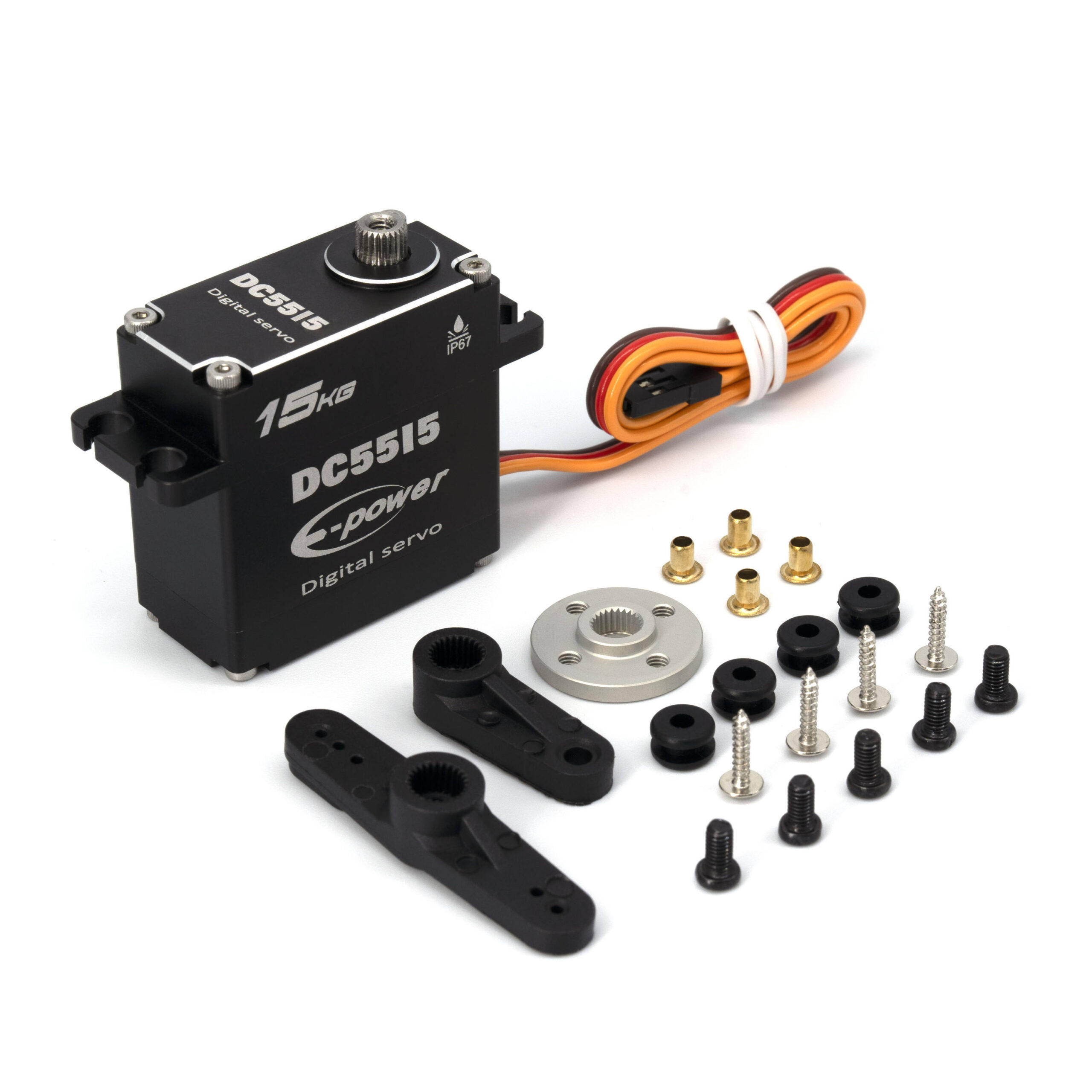

DC5515 15KG Waterproof Digital Servo for RC Cars & Boats

Description

The DC5515 15KG Waterproof Digital Servo for RC Cars & Boats delivers 15.2kg·cm @8.4V with a 0.11sec/60° @8.4V transit time, running on 4.8-8.4V.

It is built with a Metal Gear train, Aluminum Alloy case, dual ball bearings (2BB), waterproof construction, 80g weight, 40x20x40.5mm body, JR JST 300mm connector as standard.

A brushless motor removes the brushes entirely, which means less internal wear and more consistent torque over a long service life.

Rated for 4.8-8.4V: confirm that your BEC or receiver pack can supply the stall current of this servo before you install it, especially if you are driving several servos from one source.

Operating angle is available in 180°/270°/360° Optional, so the same body can be ordered for standard control-surface work or for winch and robot-joint applications that need more than 180°.

This torque class is the standard fit for 1:10 and 1:8 RC cars, boats and general robotics – enough holding force for rough terrain without adding excess weight.

Ordering for a build or a distribution line? Tell us the torque, voltage range and connector you need and we will quote it. See also the full Yadovex range and our guides on choosing 6S long-range motors and 7-inch vs 9-inch propulsion.

Key specifications

The DC5515 digital servo delivers 15.2kg·cm of torque with a waterproof high-speed design, engineered for 1/8, 1/10 and 1/12 RC cars, robotic DIY projects, boats and aircraft. It features a MOS drive, digital control amplifier and an ultra-low 1usec dead band for sharp, accurate response.

Built with a full metal gear train, aluminum alloy case and dual ball bearings (2BB), it supports control angles of 180°/270°/360° to match your project needs.

Specifications

• Model: DC5515
• Ball Bearing: 2BB
• Driver Type: MOS Drive
• Motor Type: Brushless motor
• Potentiometer Type: Direct Drive
• Amplifier Type: Digital Control
• Dead Band Width: 1 usec
• Gear Material: Metal Gear
• Case Material: Aluminum Case
• Operation Voltage Range: 4.8V – 8.4V
• Operation Temperature Range: -20°C ~ +60°C
• Control Angle: 180°/270°/360° Optional
• Direction: Re-clockwise / Pulse Travel 500→2500 usec
• Control System: PWM Control (1500usec at center)
• Cycle Life: More than 80,000 times without load
• Operation Travel: 60°±1
• Limit Angle: 180°±1 / 270°±1 Optional
• Dimensions: 40 x 20 x 40.5 mm
• Weight: 80g (without servo horn)
• Standing Torque: 0.16sec/60°, 11.2kg·cm @5V; 0.13sec/60°, 13.3kg·cm @6V; 0.11sec/60°, 15.2kg·cm @8.4V
• Idle Current: 270mA @5V; 320mA @6V; 320mA @8.4V
• Running Current: 1.9A @5V; 2.3A @6V; 2.8A @8.4V
• Connector Wire Length: 300mm, JR JST plug
• Connector Wire Gauge: 22AWG
• Wire Info (Brown): Negative
• Wire Info (Red): Positive
• Wire Info (Black): Negative
• Wire Info (Yellow): Signal

Related models and guides

Same series: DC5525 25KG Waterproof Dig | DC5535 35KG Waterproof Dig

Browse: Waterproof Digital Servos | all RC servos

Related ranges: brushless waterproof servos | robot arm and bionic hand servos | micro servos

Read: Brushless vs Brushed Motors for Drones

Frequently asked questions

What does the 5515 in DC5515 mean?

5515 describes the stator: 55 mm diameter and 15 mm stack height. A larger stator gives more torque and heat capacity, which is what lets the motor turn a bigger propeller.

What torque does the 15kg servo deliver?

It is rated at 15.2kg-cm @8.4V. Transit time is 0.11sec/60° @8.4V. This torque class covers 1:10 and 1:8 RC cars, boats and general robotics.

What voltage does this servo need?

It runs 4.8-8.4V. Check that your BEC or receiver pack can supply the stall current before you install it.

Is this servo waterproof?

Yes, it is rated waterproof, which makes it suitable for cars, boats and outdoor robots.

Do you supply these servos in bulk?

Yes. We supply samples for validation and then repeat bulk orders with custom wiring, connectors and OEM packaging.
