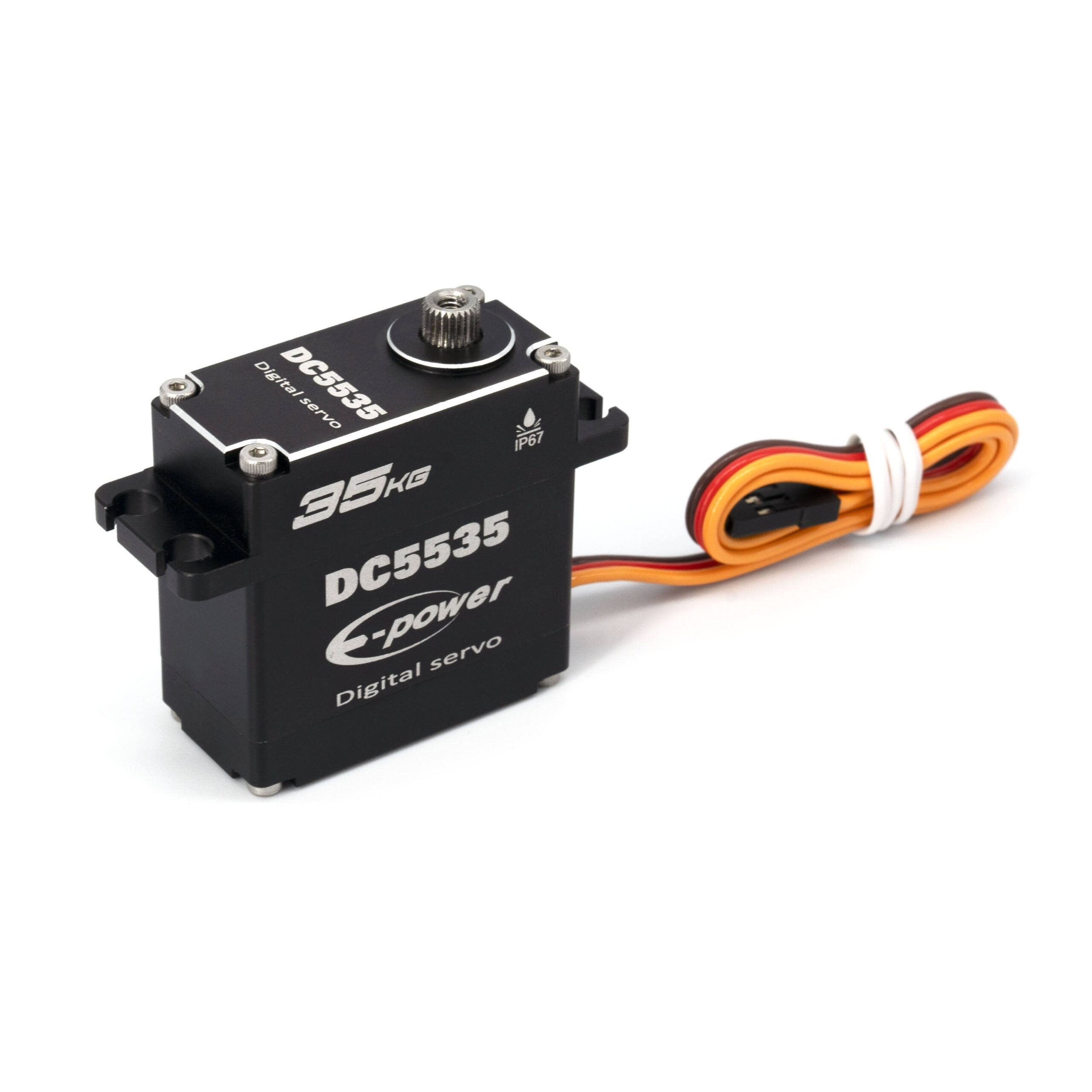

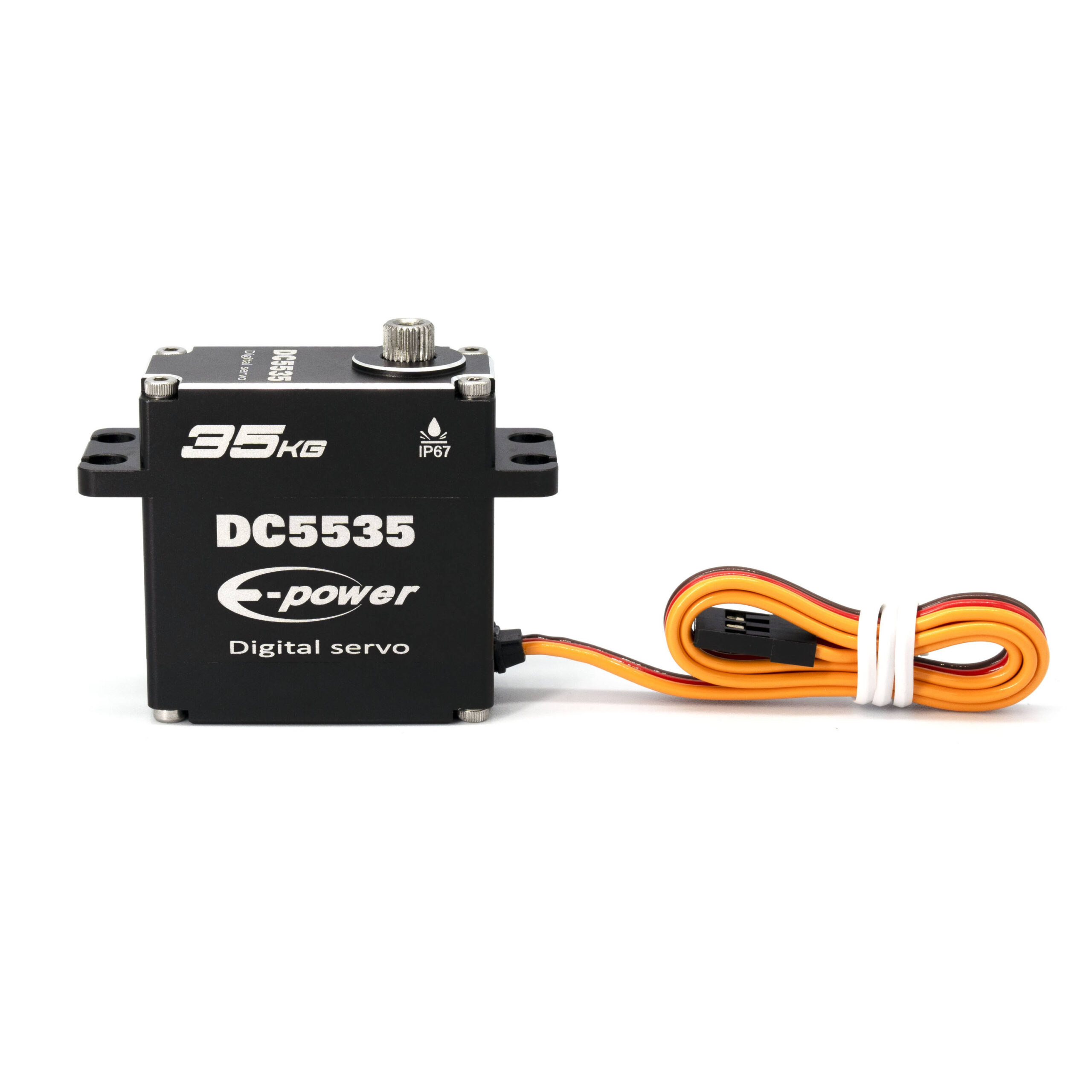

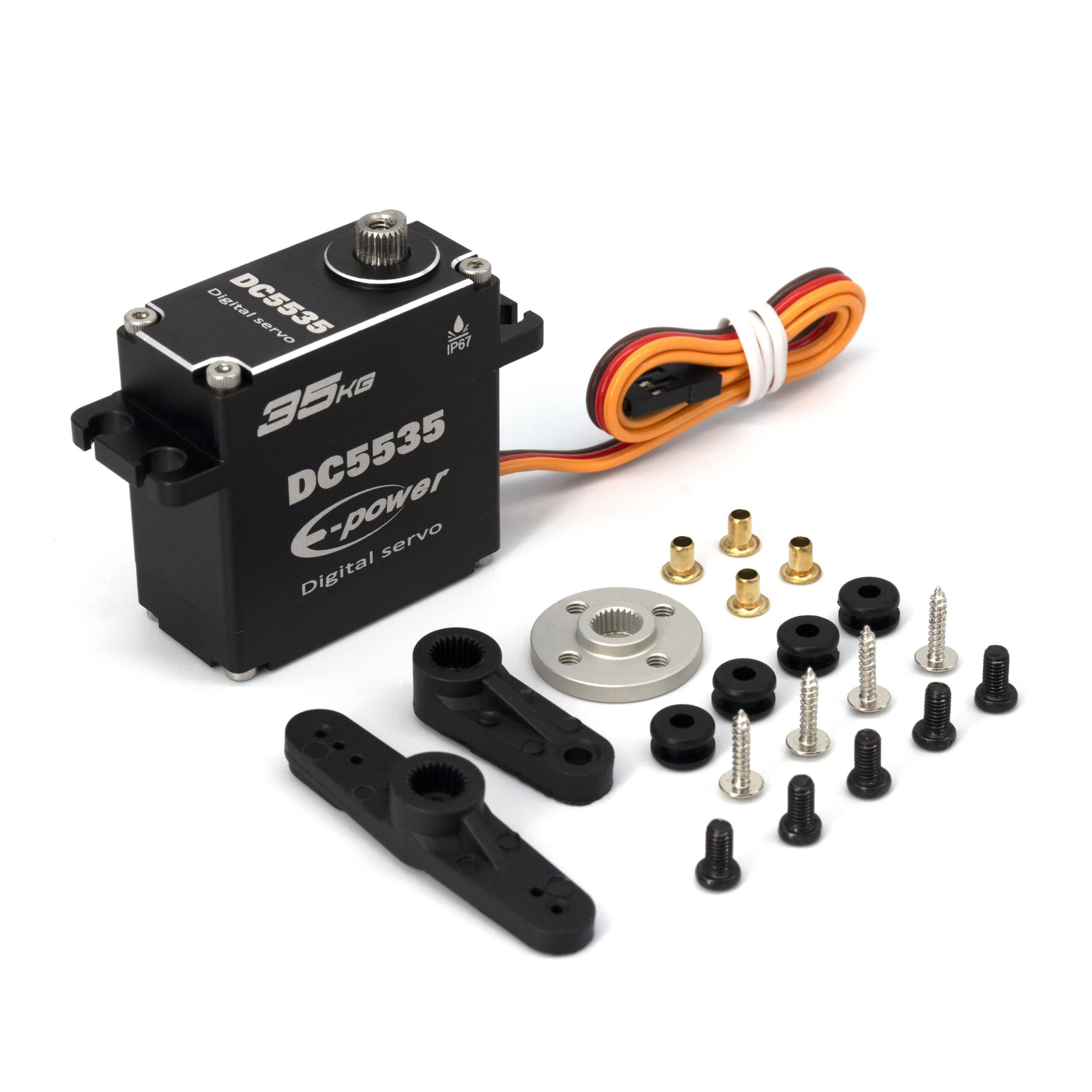

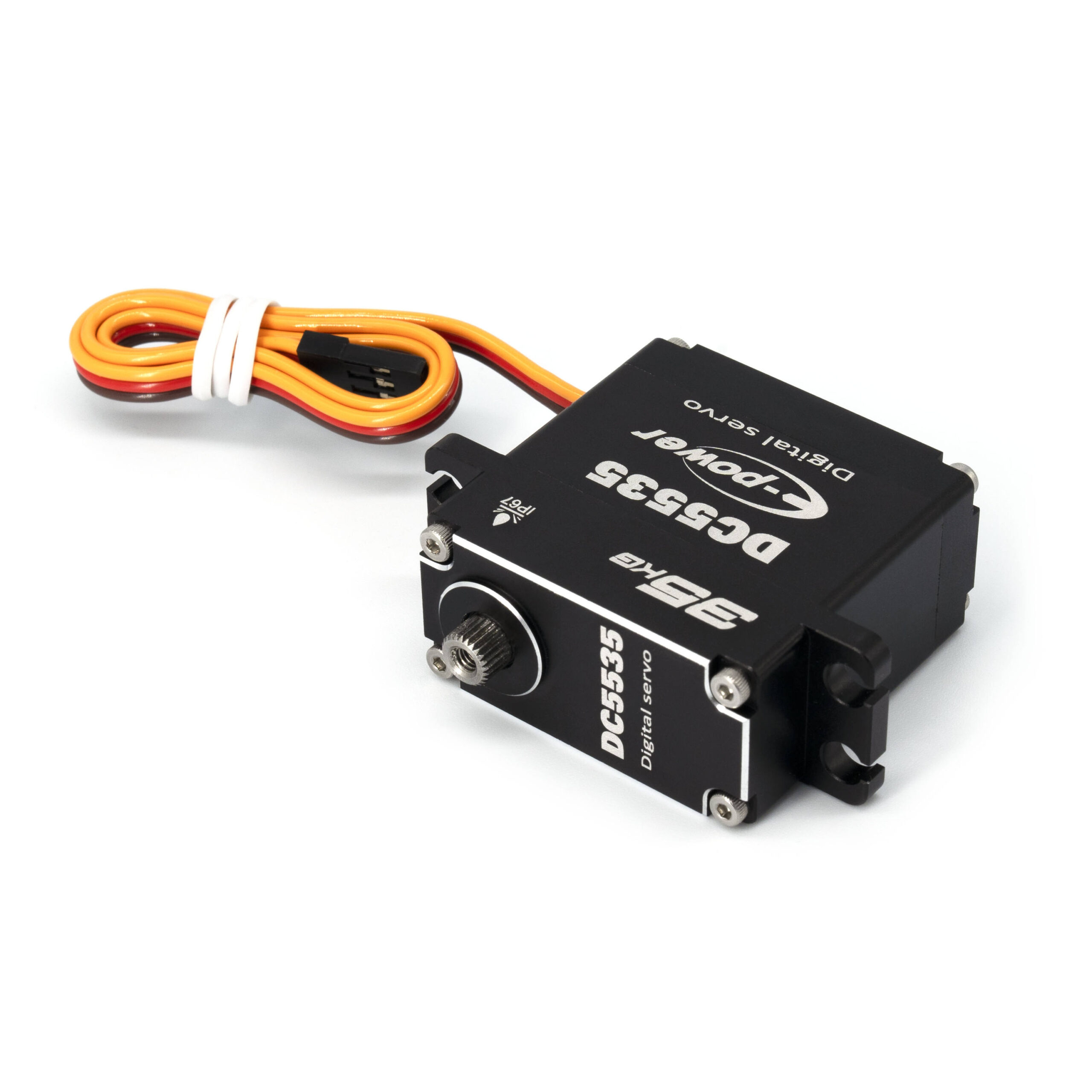

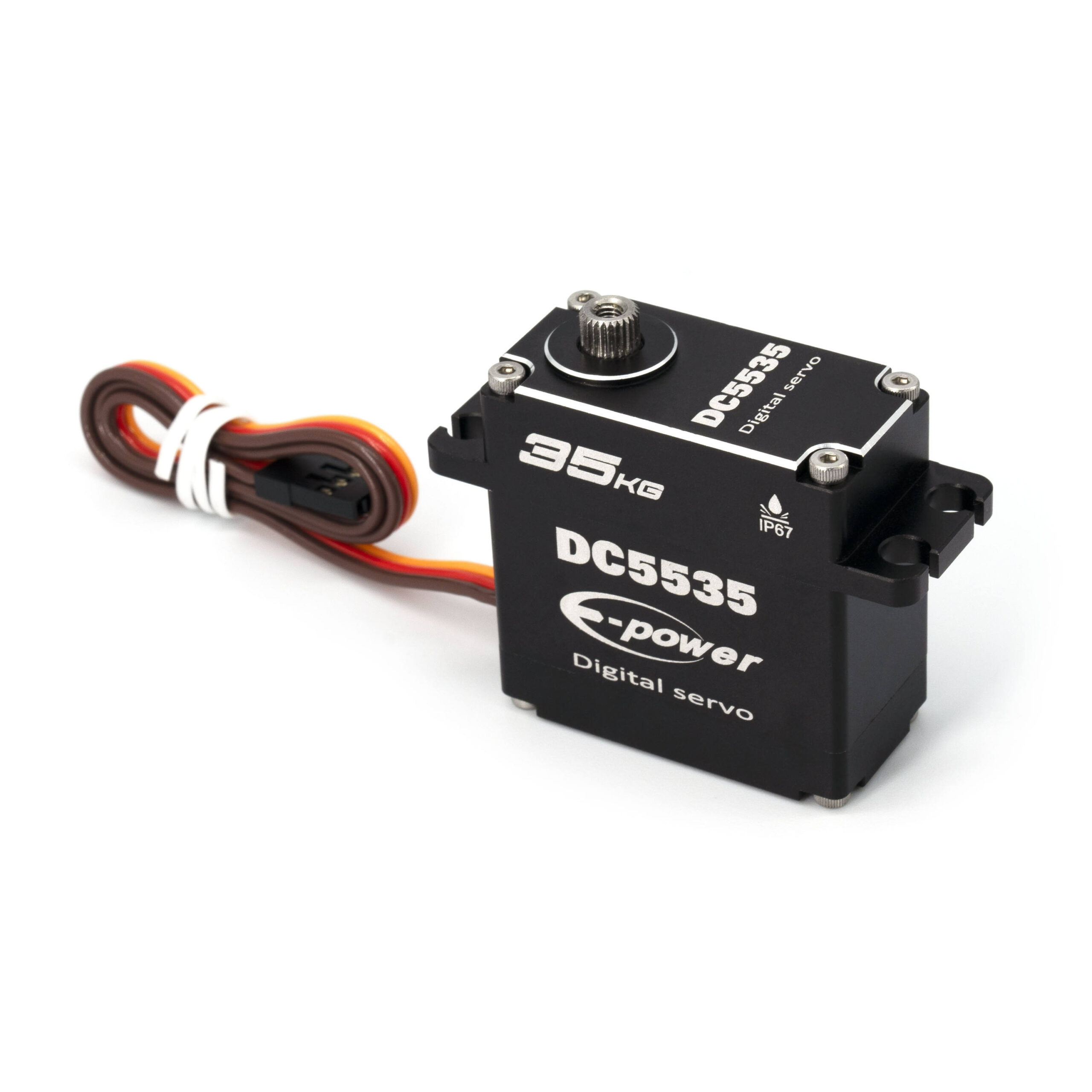

DC5535 35KG Waterproof Digital Servo for RC Cars & Boats
35kg·cm waterproof digital servo, metal gear, aluminum case, 4.8-8.4V, 0.11s/60° @8.4V. Ideal for 1/6 1/8 1/10 1/12 RC cars and Arduino projects.
THE BENEFITS OF CHOOSING US
Description
The DC5535 35KG Waterproof Digital Servo for RC Cars & Boats delivers 35kg·cm @8.4V with a 0.11sec/60° @8.4V transit time, running on 4.8-8.4V.
It is built with a Metal Gear train, Aluminum Alloy case, dual ball bearings (2BB), waterproof construction, 78g weight, 40x20x40.5mm body, JR JST 300mm connector as standard.
A conventional brushed DC motor keeps the cost down and the torque curve predictable, which suits general-purpose RC and robotics use.
Rated for 4.8-8.4V: confirm that your BEC or receiver pack can supply the stall current of this servo before you install it, especially if you are driving several servos from one source.
Operating angle is available in 180°/270°/360° Optional, so the same body can be ordered for standard control-surface work or for winch and robot-joint applications that need more than 180°.
At this torque level you are into 1:8 and 1:6 crawlers, rock racers, large-scale models and heavier UAV control surfaces, where the linkage can stall a weaker servo.
Ordering for a build or a distribution line? Tell us the torque, voltage range and connector you need and we will quote it. See also the full Yadovex range and our guides on choosing 6S long-range motors and 7-inch vs 9-inch propulsion.
Key specifications
| Torque | 35kg·cm @8.4V |
| Speed | 0.11sec/60° @8.4V |
| Voltage Range | 4.8-8.4V |
| Operating Angle | 180°/270°/360° Optional |
| Motor Type | DC Motor |
| Gear Material | Metal Gear |
| Case Material | Aluminum Alloy |
| Bearing | 2BB |
| Waterproof Rating | Waterproof |
| Weight | 78g |
| Dimensions | 40x20x40.5mm |
| Connector | JR JST 300mm |
The DC5535 digital servo delivers 35kg·cm of torque with a waterproof high-speed design, engineered for 1/6, 1/8, 1/10 and 1/12 RC cars, Arduino projects and robotic applications. It features a full aluminum case, stainless steel gear train and dual ball bearings (2BB) for long service life.
With a MOS drive and digital control amplifier (1usec dead band), it responds quickly and precisely, and supports control angles of 180°/270°/360°.
Specifications
- Model: DC5535
- Ball Bearing: 2BB
- Driver Type: MOS Drive
- Motor Type: DC motor
- Potentiometer Type: Direct Drive
- Amplifier Type: Digital Control
- Dead Band Width: 1 usec
- Gear Material: Metal Gear
- Case Material: Aluminum Case
- Operation Voltage Range: 4.8V – 8.4V
- Operation Temperature Range: -20°C ~ +60°C
- Control Angle: 180°/270°/360° Optional
- Direction: Re-clockwise / Pulse Travel 500→2500 usec
- Control System: PWM Control (1500usec at center)
- Cycle Life: More than 80,000 times without load
- Operation Travel: 60°±1
- Limit Angle: 180°±1 / 270°±1 Optional
- Dimensions: 40 x 20 x 40.5 mm
- Weight: 78g (without servo horn)
- Standing Torque: 0.2sec/60°, 28kg·cm @6V; 0.14sec/60°, 31kg·cm @7.4V; 0.11sec/60°, 35kg·cm @8.4V
- Idle Current: 270mA @6V; 320mA @7.4V; 350mA @8.4V
- Running Current: 2200mA @6V; 2800mA @7.4V; 3200mA @8.4V
- Connector Wire Length: 300mm, JR JST plug
- Connector Wire Gauge: 22AWG
- Wire Info (Brown): Negative
- Wire Info (Red): Positive
- Wire Info (Black): Negative
- Wire Info (Yellow): Signal
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Same series: DC5515 15KG Waterproof Dig | DC5525 25KG Waterproof Dig
Browse: Waterproof Digital Servos | all RC servos
Related ranges: brushless waterproof servos | robot arm and bionic hand servos | micro servos
Read: Brushless vs Brushed Motors for Drones
Frequently asked questions
What does the 5535 in DC5535 mean?
5535 describes the stator: 55 mm diameter and 35 mm stack height. A larger stator gives more torque and heat capacity, which is what lets the motor turn a bigger propeller.
What torque does the 35kg servo deliver?
It is rated at 35kg-cm @8.4V. Transit time is 0.11sec/60° @8.4V. At this torque level you are into 1:8 and 1:6 crawlers, large-scale models and heavier UAV control surfaces.
What voltage does this servo need?
It runs 4.8-8.4V. Check that your BEC or receiver pack can supply the stall current before you install it.
Is this servo waterproof?
Yes, it is rated waterproof, which makes it suitable for cars, boats and outdoor robots.
Do you supply these servos in bulk?
Yes. We supply samples for validation and then repeat bulk orders with custom wiring, connectors and OEM packaging.
