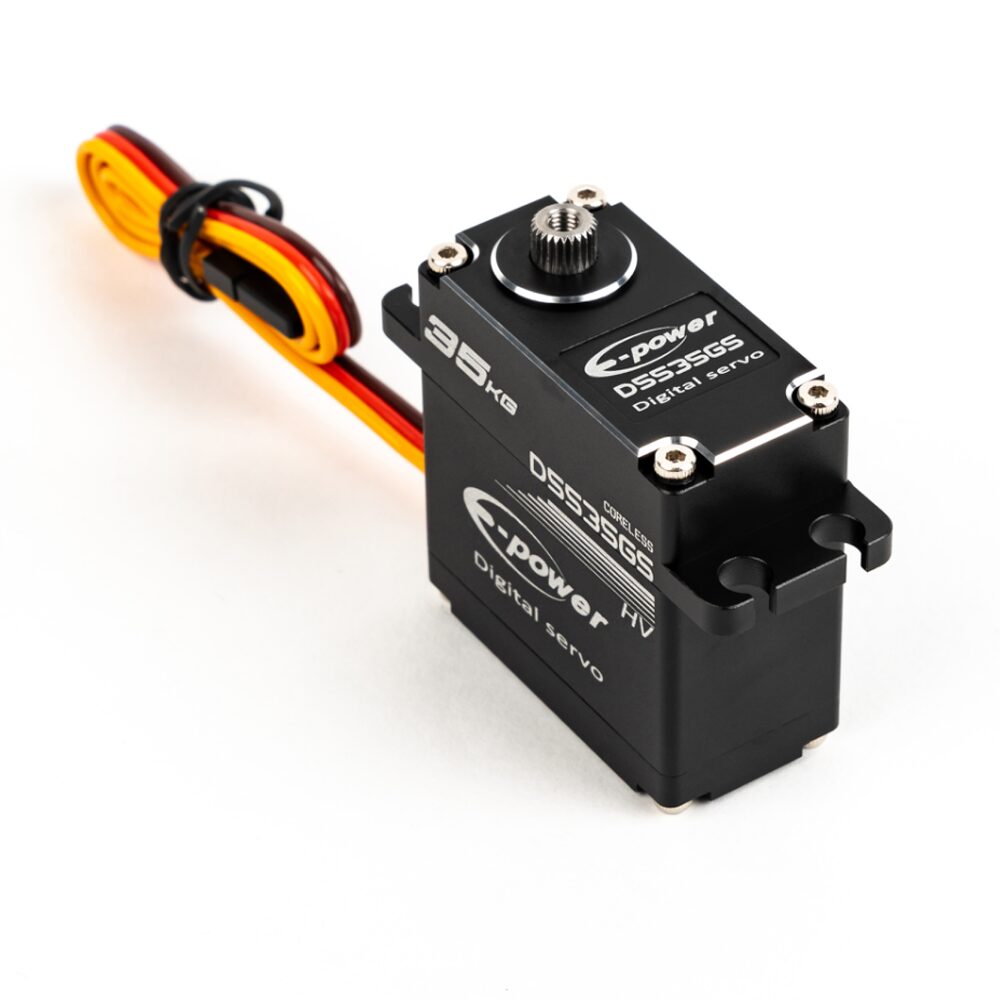

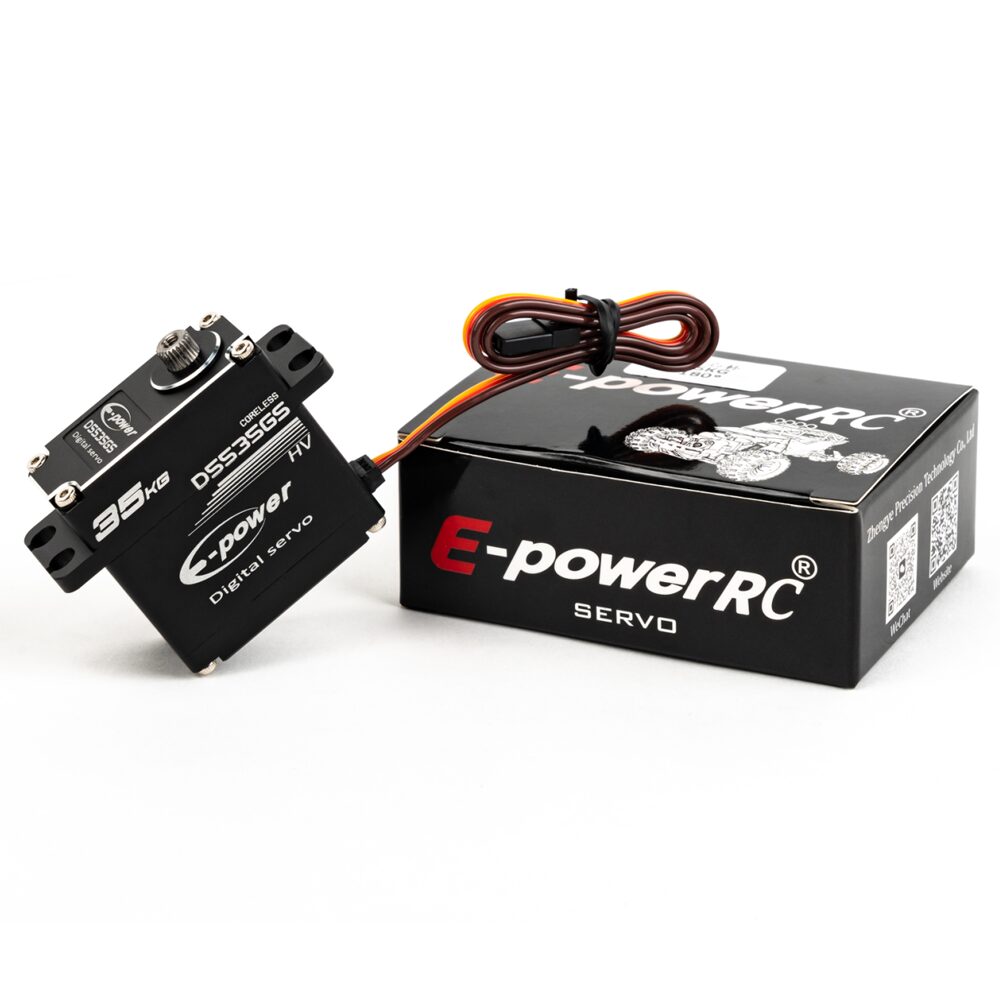

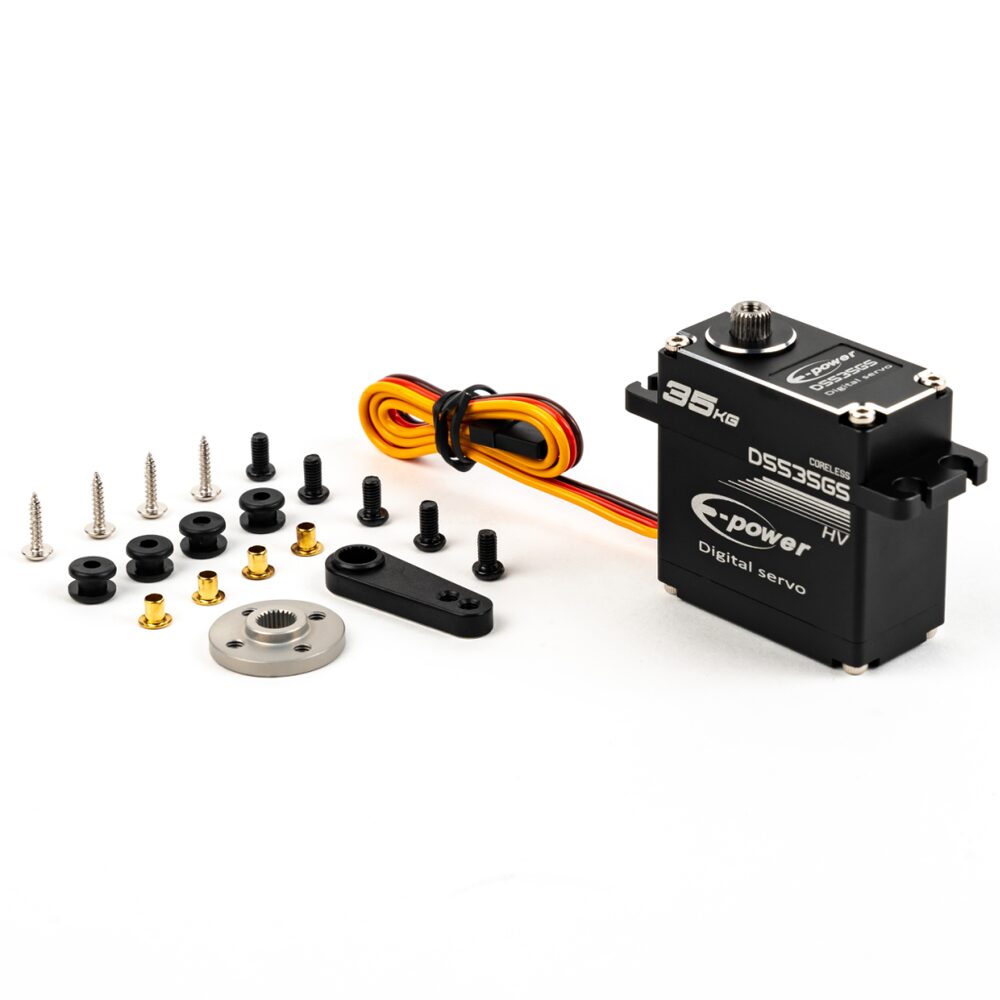

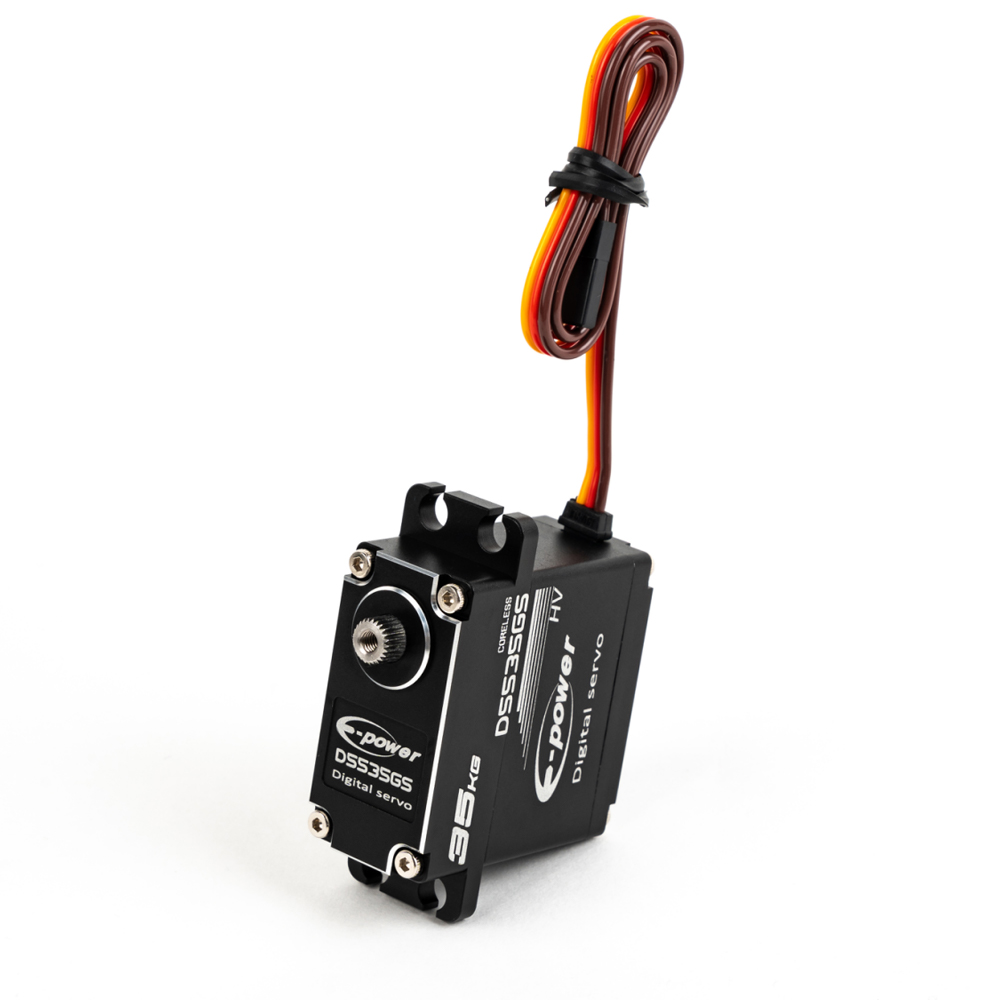

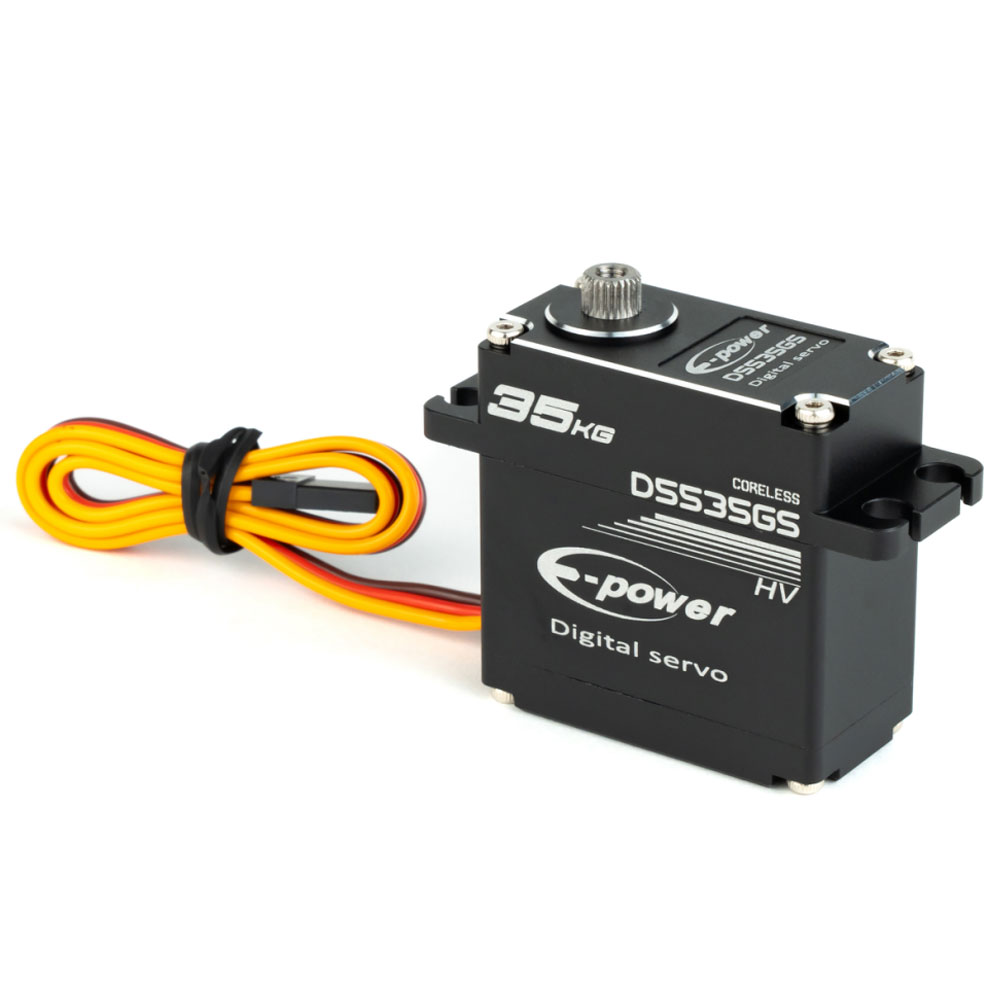

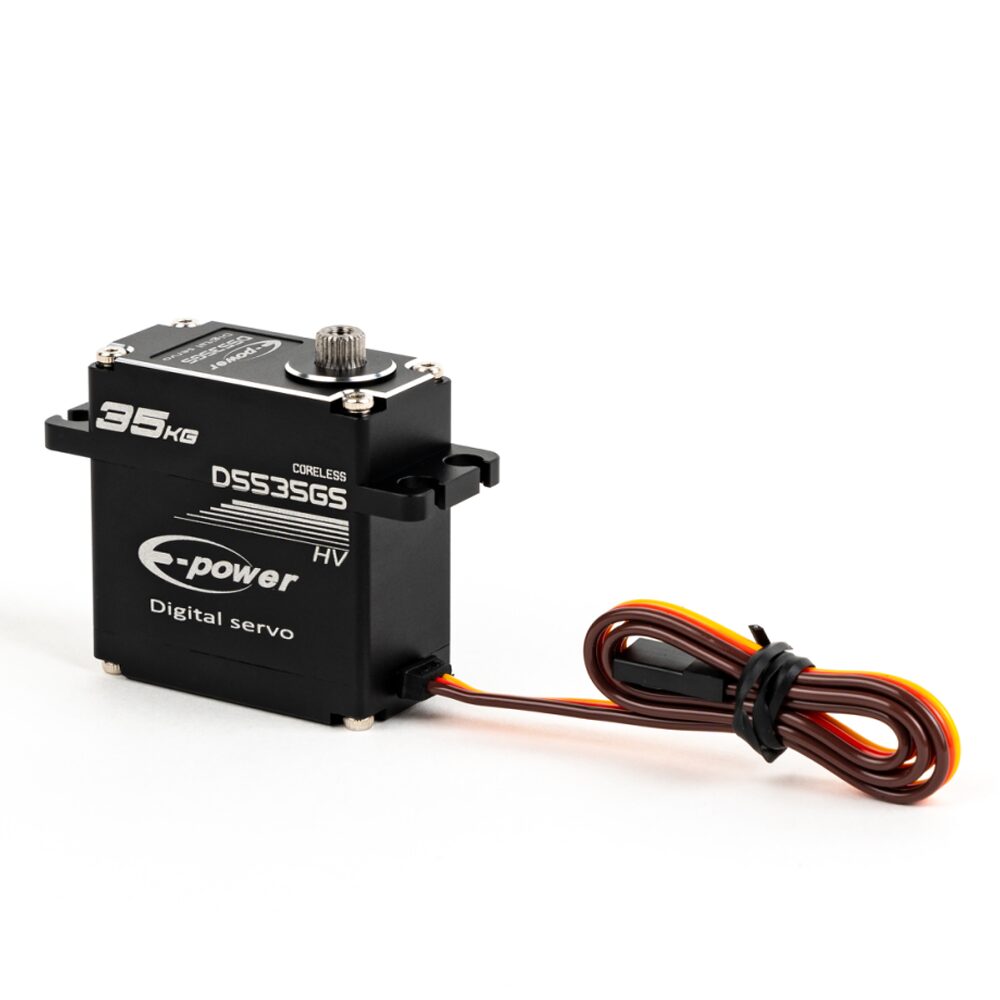

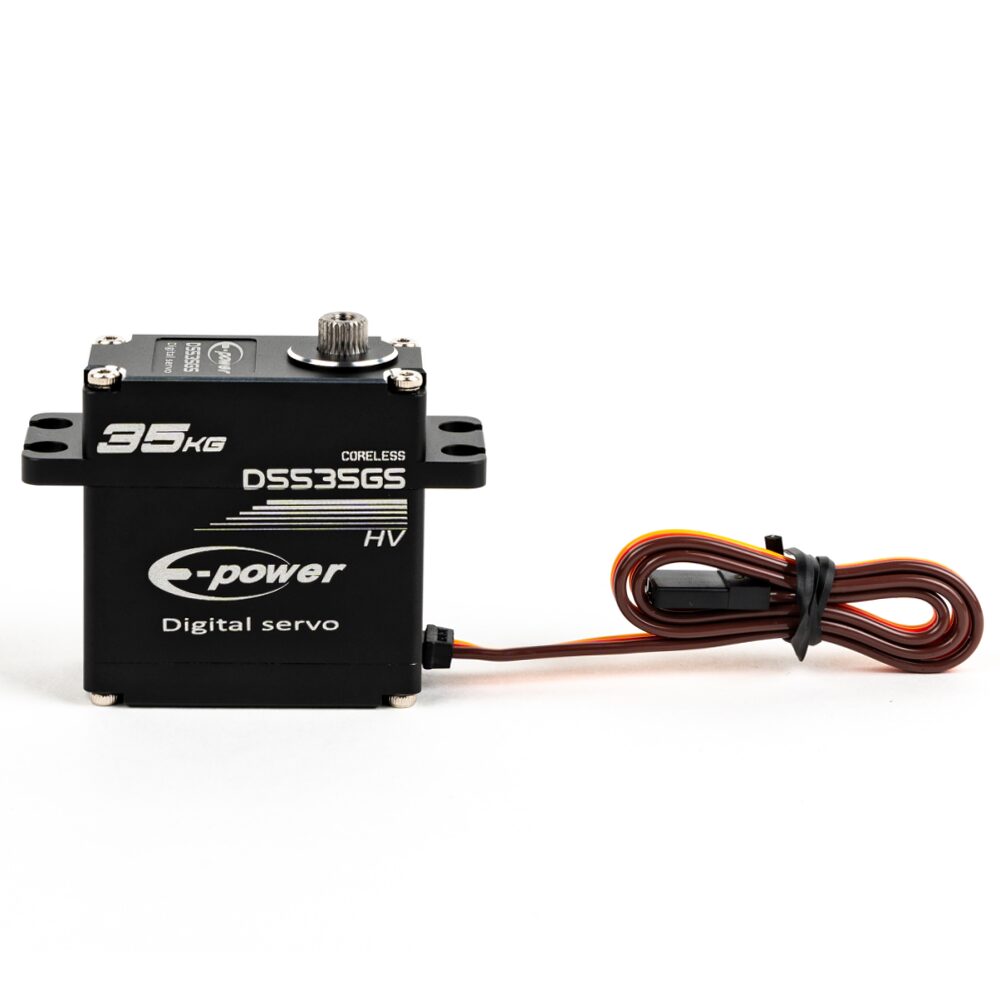

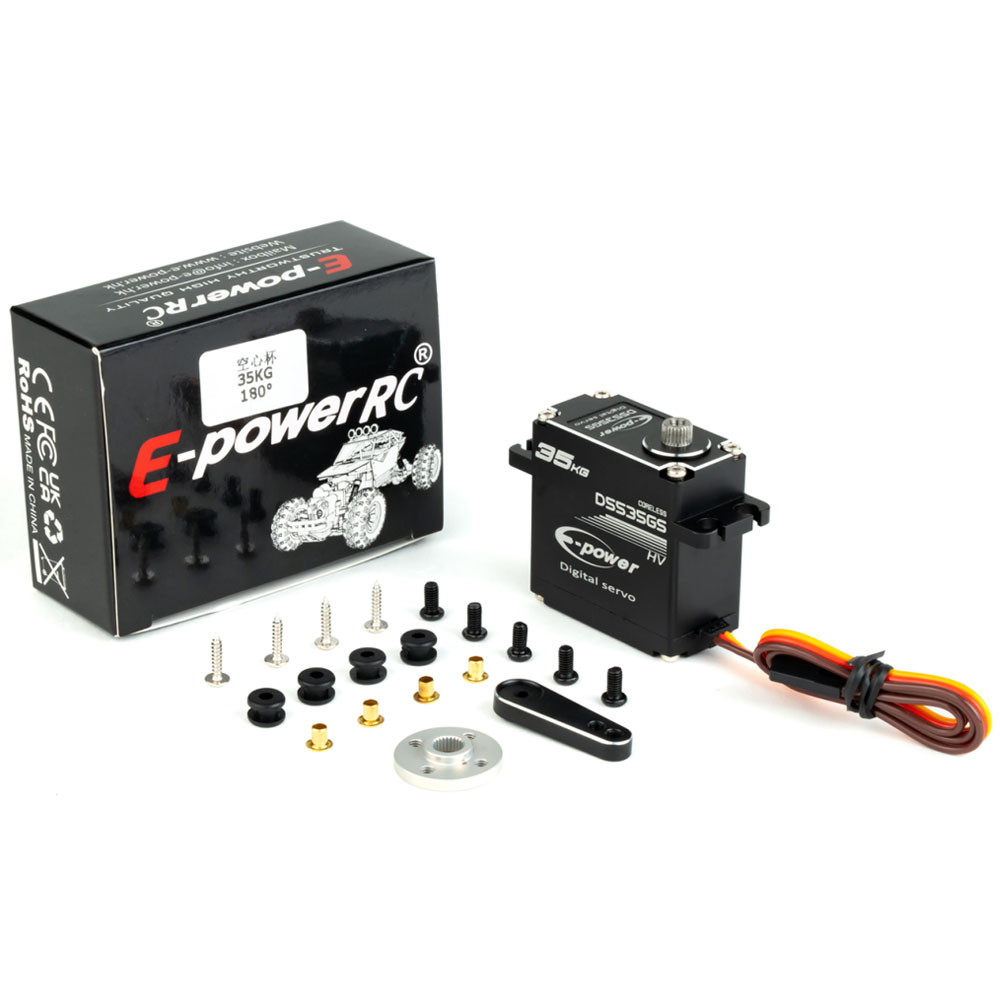

D5535GS 35KG Coreless Waterproof Digital Servo for RC Models

Description

The D5535GS 35KG Coreless Waterproof Digital Servo for RC Models delivers 35kg·cm @7.4V with a 0.07sec/60° @7.4V transit time, running on 6.0-7.4V.

It is built with a Metal Gear train, Aluminum Alloy case, dual ball bearings (2BB), waterproof construction, 75g weight, 40x20x40.5mm body, JR JST 300mm connector as standard.

A coreless brushless motor is the premium option: no cogging, lower rotor inertia and much faster response than a conventional brushed motor, which is why this class is used where the servo has to make many small corrections per second.

Rated for 6.0-7.4V: confirm that your BEC or receiver pack can supply the stall current of this servo before you install it, especially if you are driving several servos from one source.

Operating angle is available in 180°/270°/360° Optional, so the same body can be ordered for standard control-surface work or for winch and robot-joint applications that need more than 180°.

At this torque level you are into 1:8 and 1:6 crawlers, rock racers, large-scale models and heavier UAV control surfaces, where the linkage can stall a weaker servo.

Ordering for a build or a distribution line? Tell us the torque, voltage range and connector you need and we will quote it. See also the full Yadovex range and our guides on choosing 6S long-range motors and 7-inch vs 9-inch propulsion.

Key specifications

The D5535GS coreless digital servo delivers 35kg·cm of torque with a waterproof high-speed design, engineered for RC cars, crawlers, rock racers, robot arms, RC boats and UAV applications. Its coreless brushless motor with MOS drive and digital control offers fast response, smooth operation and exceptional holding power.

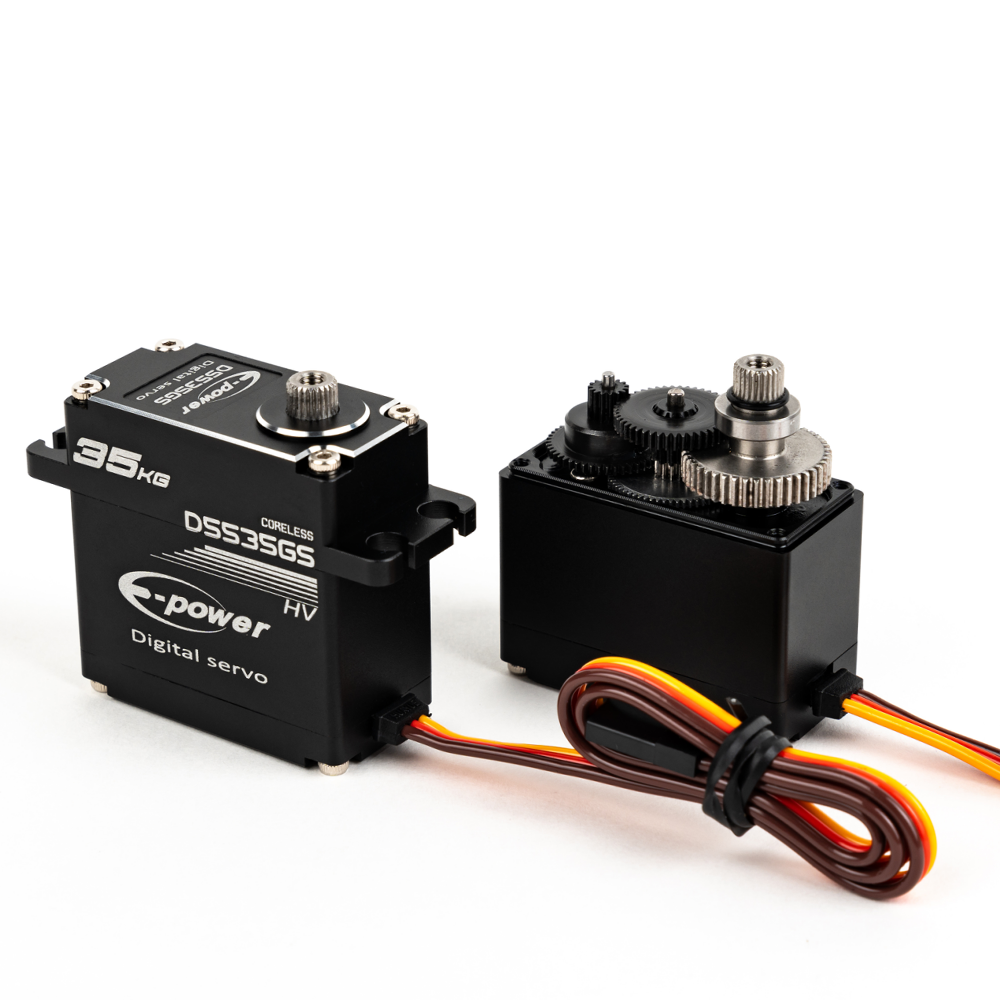

Built with a full metal gear train, aluminum alloy case and dual ball bearings (2BB), it features a 1usec dead band for sharp, accurate response. Rated for over one million no-load cycles, it is engineered for long service life even under continuous heavy load.

Operating from 6.0V to 7.4V, the servo delivers 30kg·cm @6.0V and a peak 35kg·cm @7.4V with a fast 0.07sec/60° transit speed, making it ideal for heavy steering, pan/tilt gimbals, robotic joints and other high-torque applications. Control angle options of 180°, 270° and 360° are available to match your project needs.

Specifications

• Model: D5535GS
• Ball Bearing: 2BB
• Driver Type: MOS Drive
• Motor Type: Coreless brushless motor
• Potentiometer Type: Direct Drive
• Amplifier Type: Digital Control
• Dead Band Width: 1 usec
• Gear Material: Metal Gear
• Case Material: Aluminum Case
• Operation Voltage Range: 6.0V ~ 8.4V
• Operation Temperature Range: -20°C ~ +60°C
• Control Angle: 180°/270°/360° Optional
• Direction: Re-clockwise / Pulse Travel 500→2500 usec
• Control System: PWM Control (1500usec at center)
• Cycle Life: More than one million times without load
• Operation Travel: 60°±1
• Limit Angle: 180°±1
• Dimensions: 40 x 20 x 40.5 mm
• Weight: 75g (without servo horn)
• Standing Torque: 0.09sec/60°, 30kg·cm @6.0V; 0.07sec/60°, 35kg·cm @7.4V
• Idle Current: 300mA @6.0V; 320mA @8.4V
• Running Current: 3200mA @6.0V; 4200mA @8.4V
• Connector Wire Length: 300mm, JR JST plug
• Connector Wire Gauge: 22AWG
• Wire Info (Brown): Negative
• Wire Info (Red): Positive
• Wire Info (Black): Negative
• Wire Info (Yellow): Signal

Related models and guides

Same series: D5545GS 45KG Coreless Wate | D5555GS 55KG Coreless Digi

Browse: Coreless Digital Servos | all RC servos

Related ranges: brushless waterproof servos | robot arm and bionic hand servos | micro servos

Read: Brushless vs Brushed Motors for Drones

Frequently asked questions

What torque does the 35kg servo deliver?

It is rated at 35kg-cm @7.4V. Transit time is 0.07sec/60° @7.4V. At this torque level you are into 1:8 and 1:6 crawlers, large-scale models and heavier UAV control surfaces.

What voltage does this servo need?

It runs 6.0-7.4V. Check that your BEC or receiver pack can supply the stall current before you install it.

Is this servo waterproof?

Yes, it is rated waterproof, which makes it suitable for cars, boats and outdoor robots.

Do you supply these servos in bulk?

Yes. We supply samples for validation and then repeat bulk orders with custom wiring, connectors and OEM packaging.
