MG30KG 30KG 180° High Torque Full Steel Gear Digital Servo for RC Crawler
THE BENEFITS OF CHOOSING US
Description
The MG30KG 30KG 180° High Torque Full Steel Gear Digital Servo for RC Crawler delivers 30.0kg·cm, running on DC 5-8.4V.
It is built with a Full Steel Gear (All Metal) train, Half Aluminum Alloy case, Top & Bottom Bearings, not waterproof construction, 68g weight, 40x20x46mm body.
A conventional brushed DC motor keeps the cost down and the torque curve predictable, which suits general-purpose RC and robotics use.
Rated for DC 5-8.4V: confirm that your BEC or receiver pack can supply the stall current of this servo before you install it, especially if you are driving several servos from one source.
Operating angle is available in 180° (270°/360° customizable), so the same body can be ordered for standard control-surface work or for winch and robot-joint applications that need more than 180°.
At this torque level you are into 1:8 and 1:6 crawlers, rock racers, large-scale models and heavier UAV control surfaces, where the linkage can stall a weaker servo.
Ordering for a build or a distribution line? Tell us the torque, voltage range and connector you need and we will quote it. See also the full Yadovex range and our guides on choosing 6S long-range motors and 7-inch vs 9-inch propulsion.
Key specifications
| Torque | 30.0kg·cm |
| Voltage Range | DC 5-8.4V |
| Operating Angle | 180° (270°/360° customizable) |
| Motor Type | Digital |
| Gear Material | Full Steel Gear (All Metal) |
| Case Material | Half Aluminum Alloy |
| Bearing | Top & Bottom Bearings |
| Waterproof Rating | Not Waterproof |
| Weight | 68g |

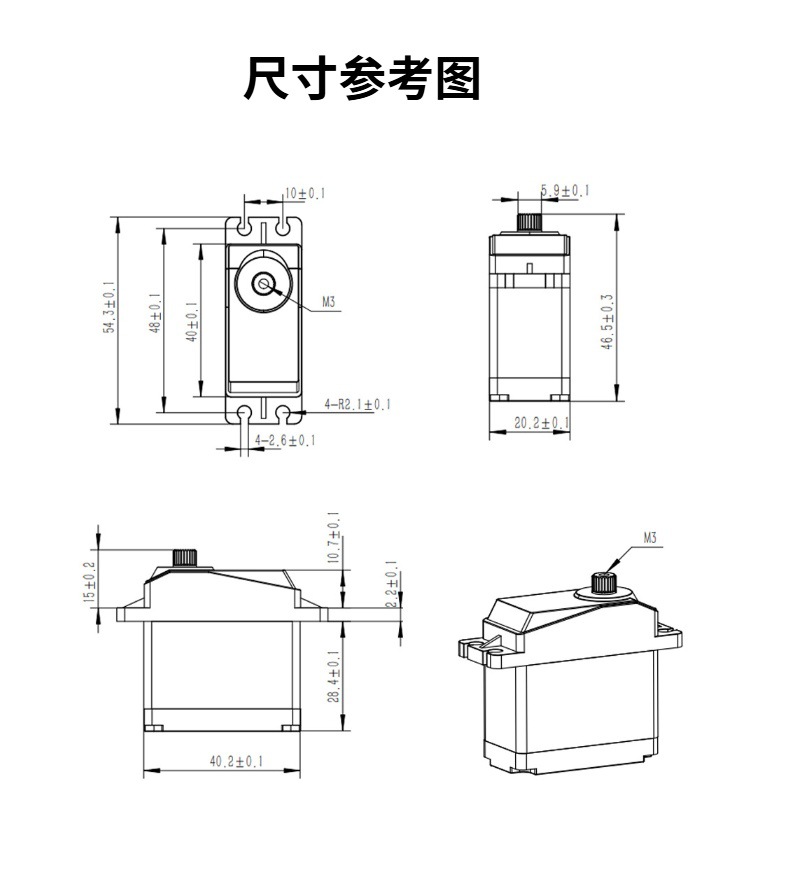

| Dimensions | 40x20x46mm |

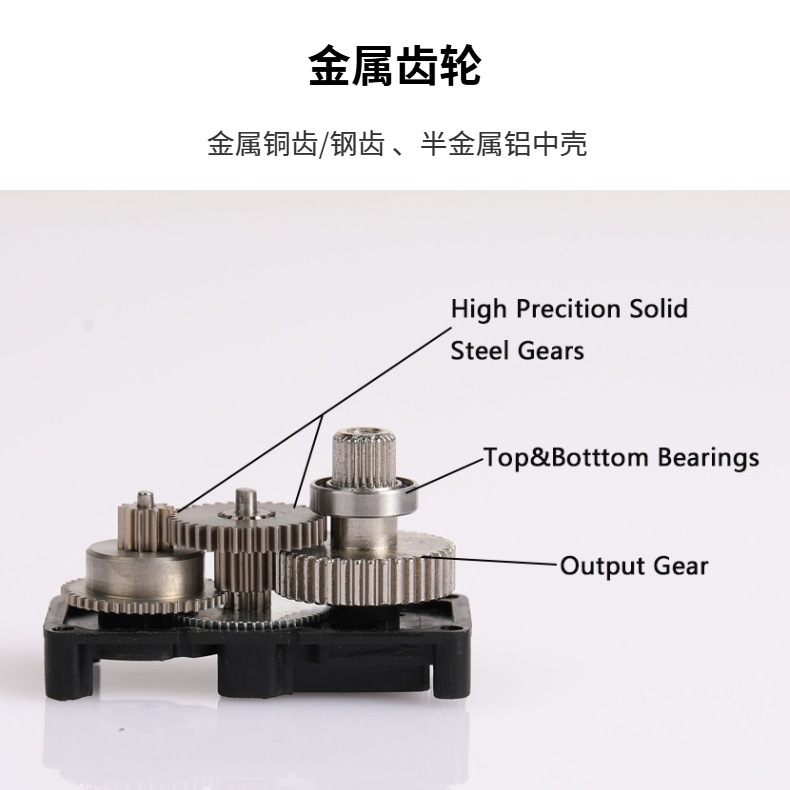

The MG30KG is a high-torque 30kg·cm full steel gear digital servo with a half aluminum body, built for RC crawlers, robot arms and heavy-duty mechanical applications. Full metal steel gears with top and bottom bearings deliver smooth, durable and accurate motion control.
This model is factory set to 180° rotation. 270° and 360° rotation versions are available on request for customization.
Specifications
| Model | MG30KG (30KG series) |
| Servo Type | Digital Servo |
| Torque | 30.0 kg·cm |
| Operating Voltage | DC 5-8.4V |
| Operating Angle | 180° (270°/360° customizable) |
| Gear Type | Full Steel Gear (All Metal) |
| Case Material | Half Aluminum Alloy |
| Bearing | Top & Bottom Bearings |
| Operating Temperature | -20°C ~ +50°C |
| Dimensions | 40 x 20 x 46mm |
| Weight | 68g |
| Color | Red / Blue |

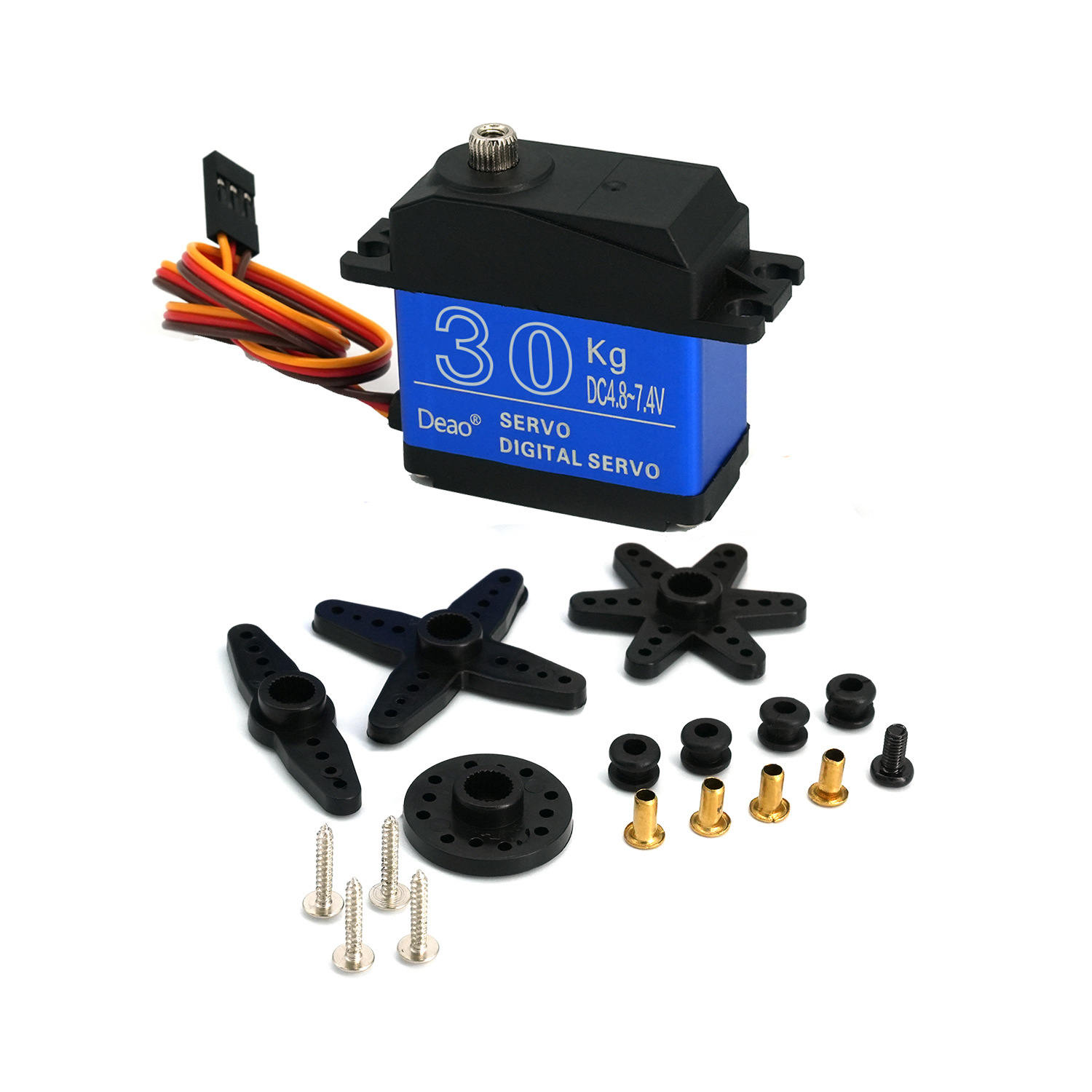

Package includes: 1x servo, 4x servo arms, damping rubber feet, aluminum sleeve, mounting screws.
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Same series: MG20KG 20KG 180° High Torq | MG25KG 25KG 180° High Torq | MG35KG 35KG 180° High Torq
Browse: Robot Arm & Bionic Hand Servos | all RC servos
Related ranges: brushless waterproof servos | robot arm and bionic hand servos | micro servos
Read: Brushless vs Brushed Motors for Drones
Frequently asked questions
What torque does the 30kg servo deliver?
It is rated at 30.0kg-cm. At this torque level you are into 1:8 and 1:6 crawlers, large-scale models and heavier UAV control surfaces.
What voltage does this servo need?
It runs DC 5-8.4V. Check that your BEC or receiver pack can supply the stall current before you install it.
Is this servo waterproof?
This model is not sealed, so keep it away from water. For wet conditions choose a waterproof servo from our brushless waterproof range.
Do you supply these servos in bulk?
Yes. We supply samples for validation and then repeat bulk orders with custom wiring, connectors and OEM packaging.
Related products in this range
D5545GS 45KG Coreless Waterproof Digital Servo for RC Models | DC5515 15KG Waterproof Digital Servo for RC Cars & Boats | DC5525 25KG Waterproof Digital Servo for RC Cars & Boats
Additional information
| Torque | 30.0kg·cm |
|---|---|
| Voltage Range | DC 5-8.4V |
| Operating Angle | 180° (270°/360° customizable) |
| Motor Type | Digital |
| Gear Material | Full Steel Gear (All Metal) |
| Case Material | Half Aluminum Alloy |
| Bearing | Top & Bottom Bearings |
| Waterproof Rating | Not Waterproof |
| Weight | 68g |
| Dimensions | 40x20x46mm |
| Color | Red / Blue |
| Operating Temperature | -20°C ~ +50°C |
