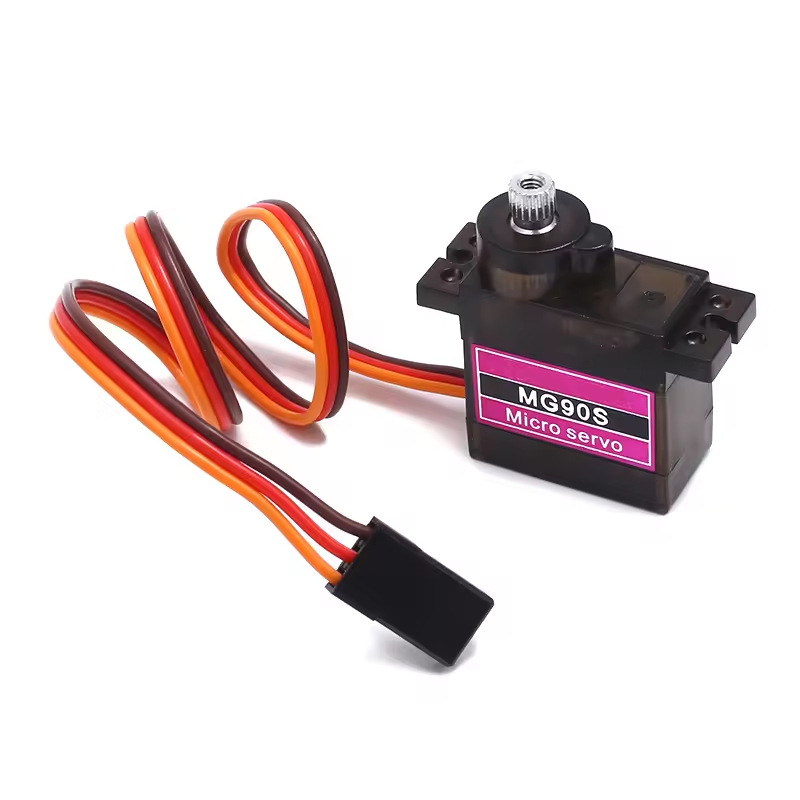

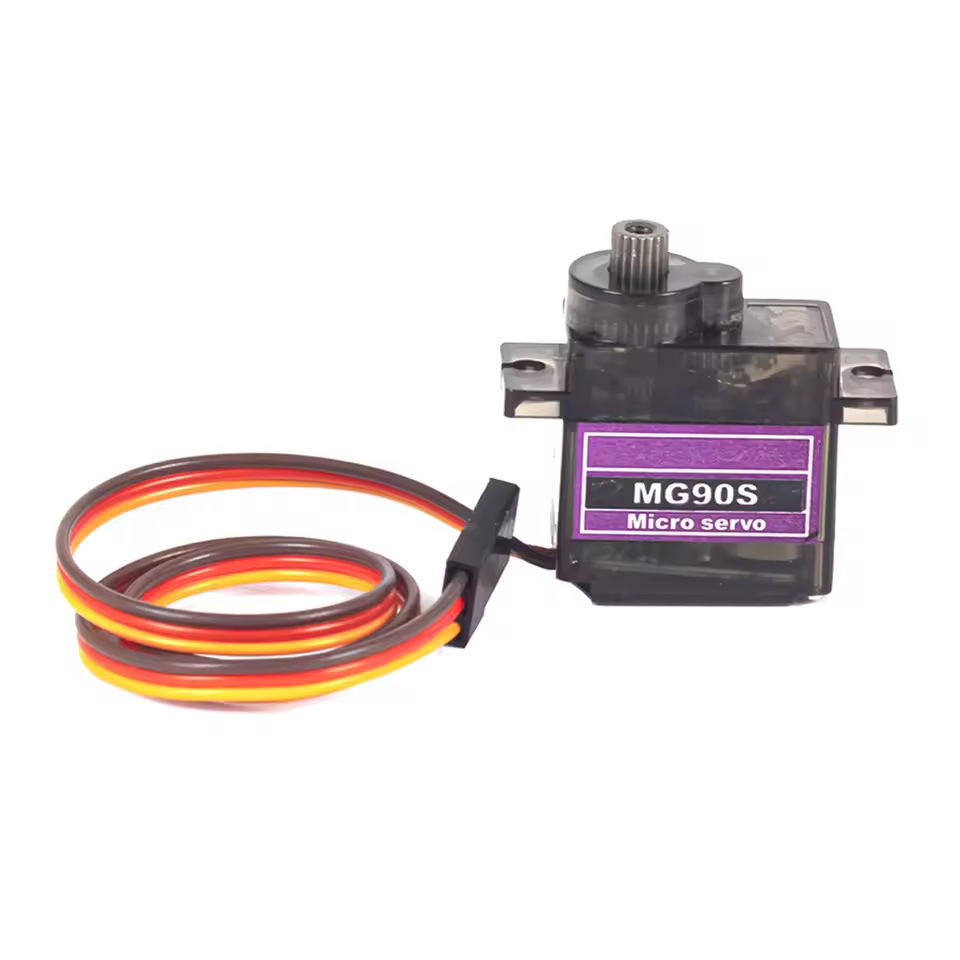

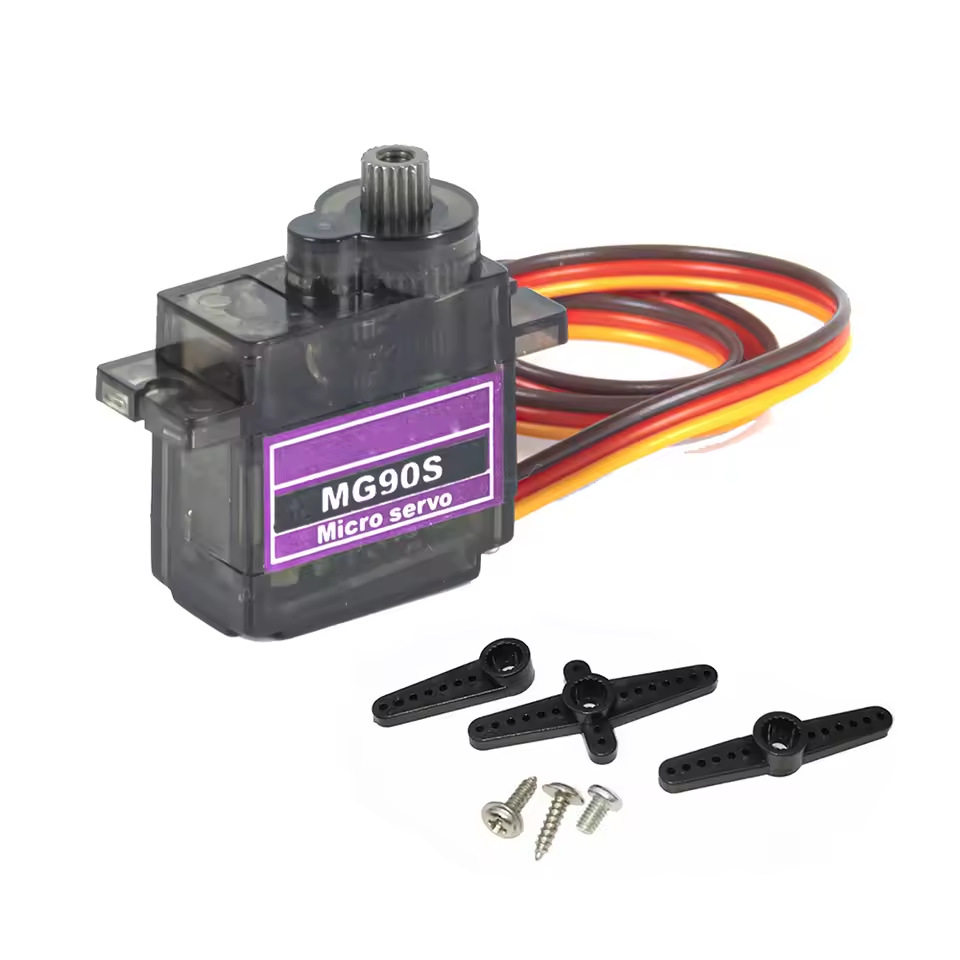

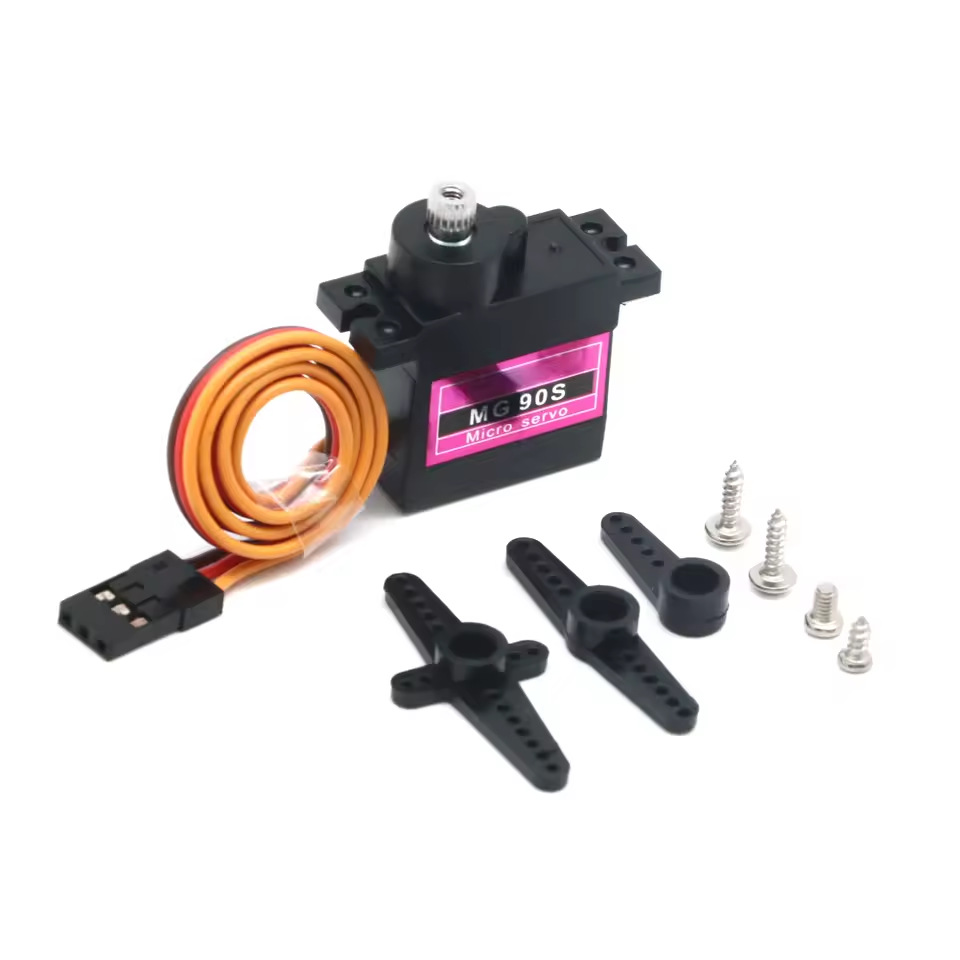

MG90S 14g Micro Servo for Robot Arm & RC Models
THE BENEFITS OF CHOOSING US
Description
The MG90S 14g Micro Servo for Robot Arm & RC Models delivers 1.8kg·cm @4.8V / 2.2kg·cm @6.0V with a 0.10s/60° @4.8V / 0.08s/60° @6.0V transit time, running on 4.8V – 6V.
It is built with a Plastic train, not waterproof construction, 13.4g weight, 22.8×12.2×28.5mm body.
A conventional brushed DC motor keeps the cost down and the torque curve predictable, which suits general-purpose RC and robotics use.
Rated for 4.8V – 6V: confirm that your BEC or receiver pack can supply the stall current of this servo before you install it, especially if you are driving several servos from one source.
Operating angle is available in 180°, so the same body can be ordered for standard control-surface work or for winch and robot-joint applications that need more than 180°.
This torque class suits 1:16–1:18 cars, small fixed-wing models, micro robot arms and camera gimbals, where weight matters more than holding force.
Ordering for a build or a distribution line? Tell us the torque, voltage range and connector you need and we will quote it. See also the full Yadovex range and our guides on choosing 6S long-range motors and 7-inch vs 9-inch propulsion.
Key specifications
| Torque | 1.8kg·cm @4.8V / 2.2kg·cm @6.0V |
| Speed | 0.10s/60° @4.8V / 0.08s/60° @6.0V |
| Voltage Range | 4.8V – 6V |
| Operating Angle | 180° |
| Motor Type | Analog |
| Gear Material | Plastic |
| Waterproof Rating | Not Waterproof |
| Weight | 13.4g |
| Dimensions | 22.8×12.2×28.5mm |
The MG90 is a compact 14g micro servo with plastic gears, designed for robot arms, boat models, car models, fixed-wing aircraft, helicopters and gliders. It delivers up to 2.2kg·cm of torque and a fast 0.08s/60° response at 6.0V.
Wire colors: Red = power, Brown = ground, Orange = signal.
Specifications
| Model | MG90 |
| Servo Type | Micro Servo |
| Torque | 1.8kg·cm @4.8V / 2.2kg·cm @6.0V |
| Operating Speed | 0.10s/60° @4.8V / 0.08s/60° @6.0V |
| Operating Voltage | 4.8V – 6V |
| Dead Band | 5μs |
| Gear Material | Plastic |
| Operating Temperature | 0°C ~ 55°C |
| Dimensions | 22.8 x 12.2 x 28.5mm |
| Weight | 13.4g |
Applications: robot arms/hands, boat models, car models, fixed-wing aircraft, helicopters, gliders and other RC models.
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Same series: MG20KG 20KG 180° High Torq | MG25KG 25KG 180° High Torq | MG30KG 30KG 180° High Torq
Browse: Micro Servos | all RC servos
Related ranges: brushless waterproof servos | robot arm and bionic hand servos | micro servos
Read: Brushless vs Brushed Motors for Drones
Frequently asked questions
What torque does the 14g servo deliver?
It is rated at 1.8kg-cm @4.8V / 2.2kg-cm @6.0V. Transit time is 0.10s/60° @4.8V / 0.08s/60° @6.0V. This torque class suits 1:16 to 1:18 cars, small fixed-wing models, micro robot arms and camera mounts.
What voltage does this servo need?
It runs 4.8V - 6V. Check that your BEC or receiver pack can supply the stall current before you install it.
Is this servo waterproof?
This model is not sealed, so keep it away from water. For wet conditions choose a waterproof servo from our brushless waterproof range.
Do you supply these servos in bulk?
Yes. We supply samples for validation and then repeat bulk orders with custom wiring, connectors and OEM packaging.
Related products in this range
D5545GS 45KG Coreless Waterproof Digital Servo for RC Models | DC5515 15KG Waterproof Digital Servo for RC Cars & Boats | DC5525 25KG Waterproof Digital Servo for RC Cars & Boats
Additional information
| Torque | 1.8kg·cm @4.8V / 2.2kg·cm @6.0V |
|---|---|
| Speed | 0.10s/60° @4.8V / 0.08s/60° @6.0V |
| Voltage Range | 4.8V – 6V |
| Operating Angle | 180° |
| Motor Type | Analog |
| Gear Material | Plastic |
| Waterproof Rating | Not Waterproof |
| Weight | 13.4g |
| Dimensions | 22.8×12.2×28.5mm |
| Dead Band | 5μs |
| Operating Temperature | 0°C ~ 55°C |
