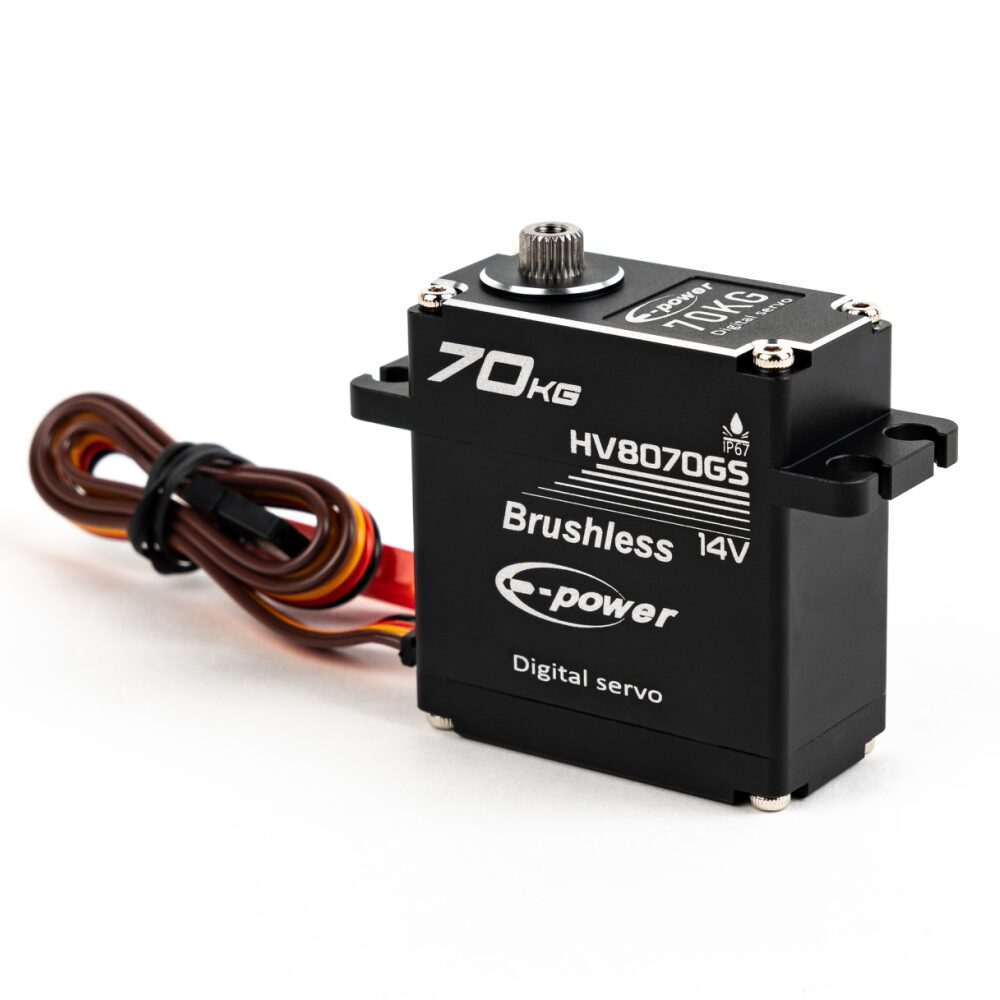

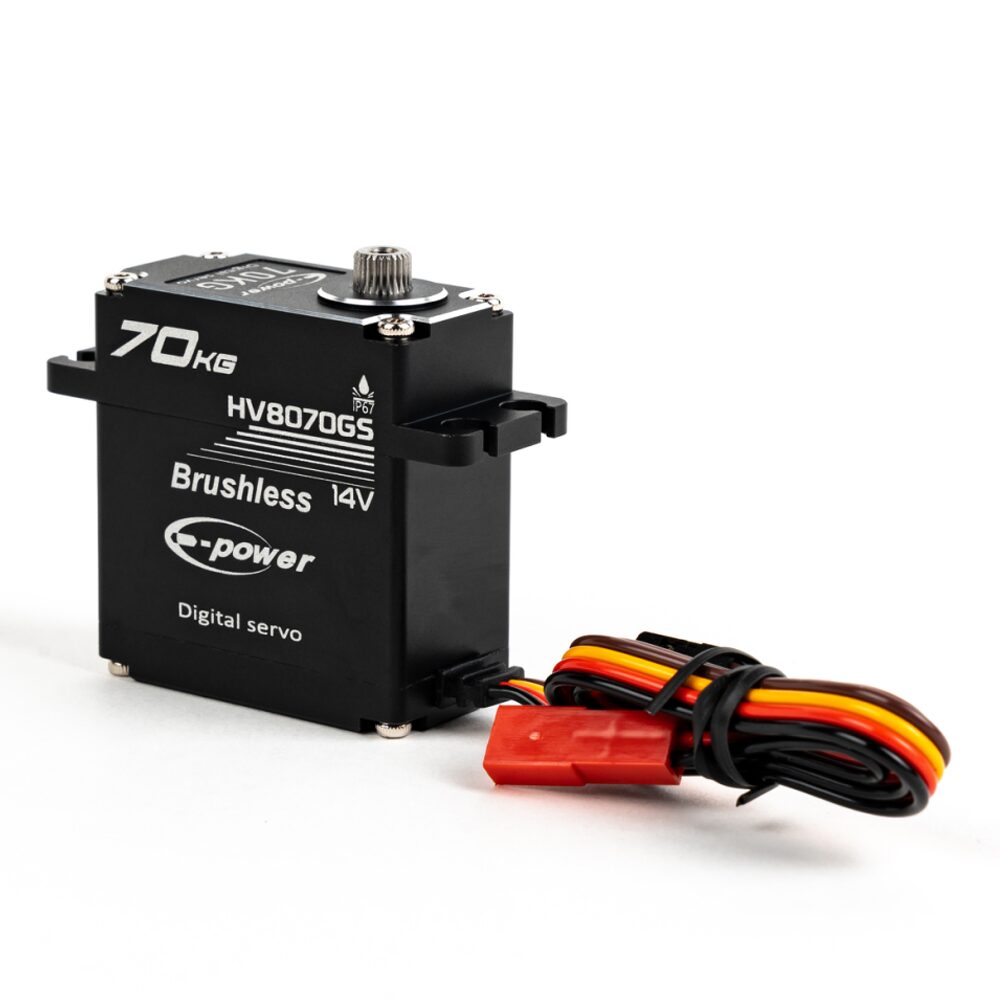

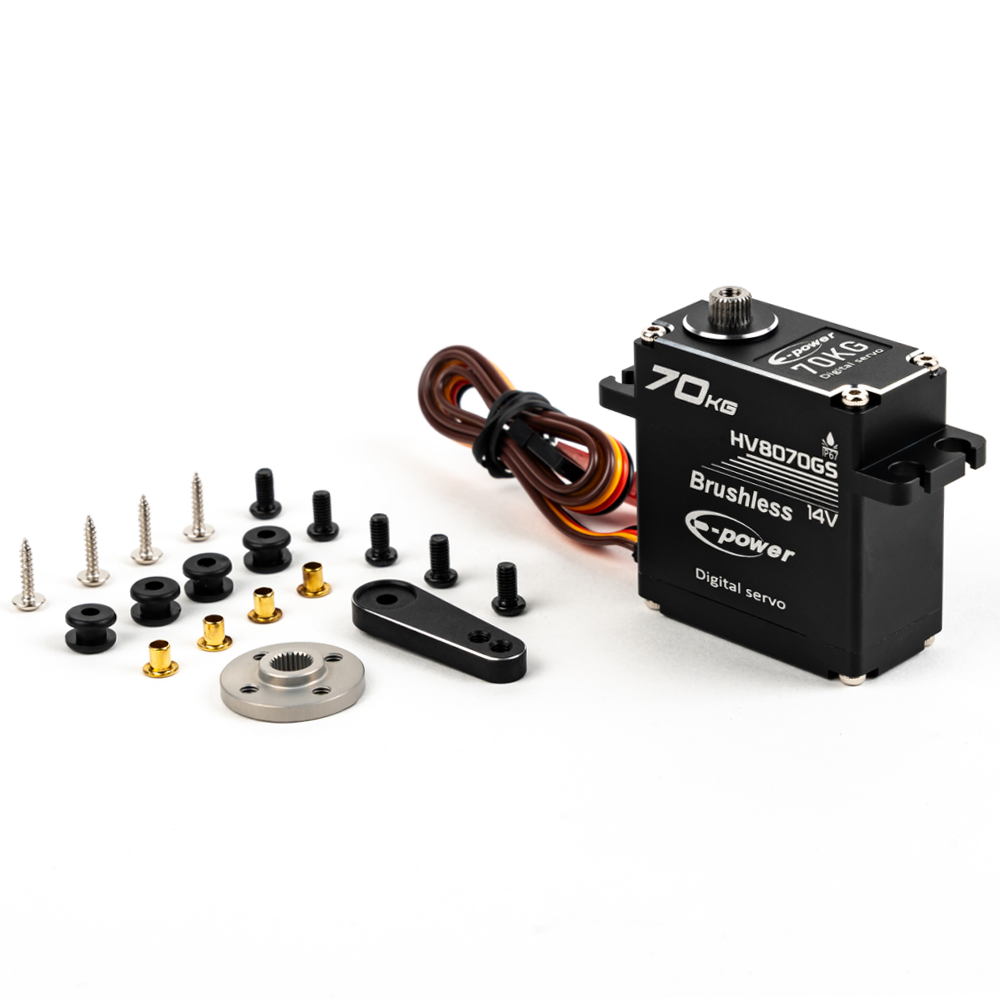

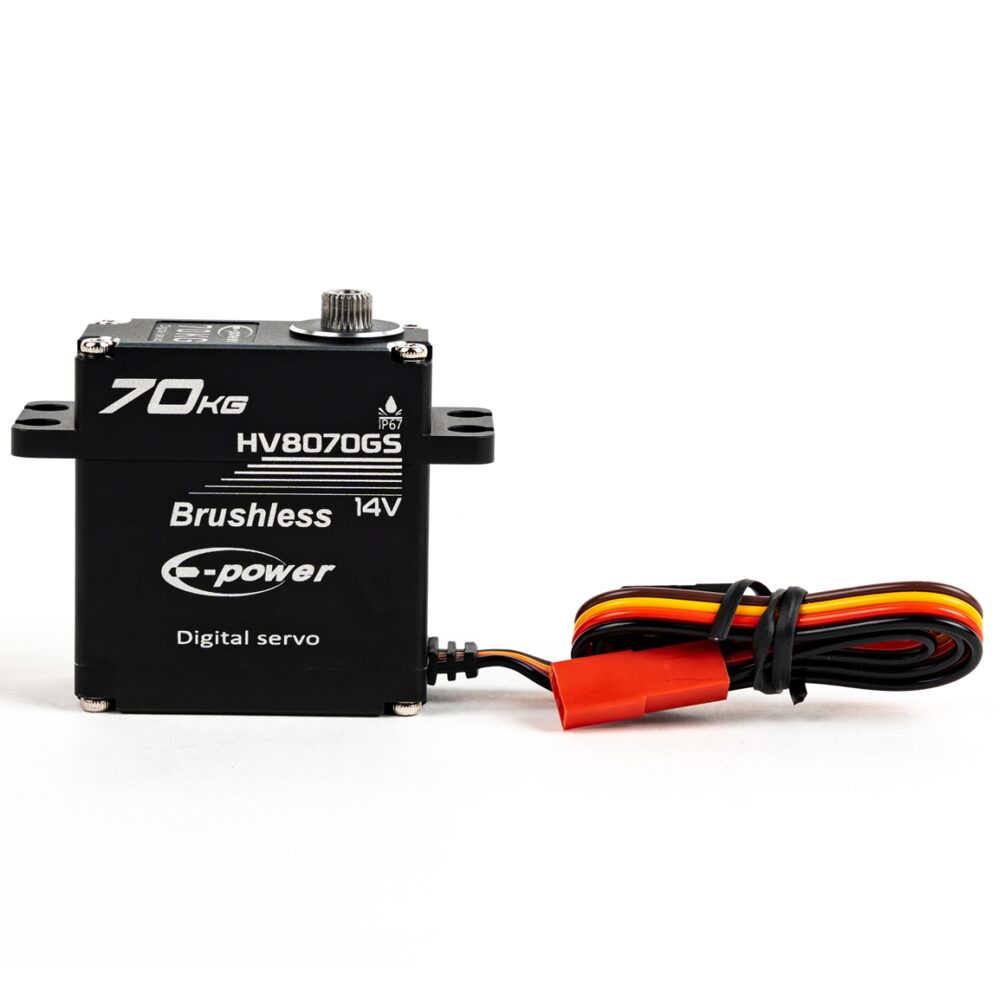

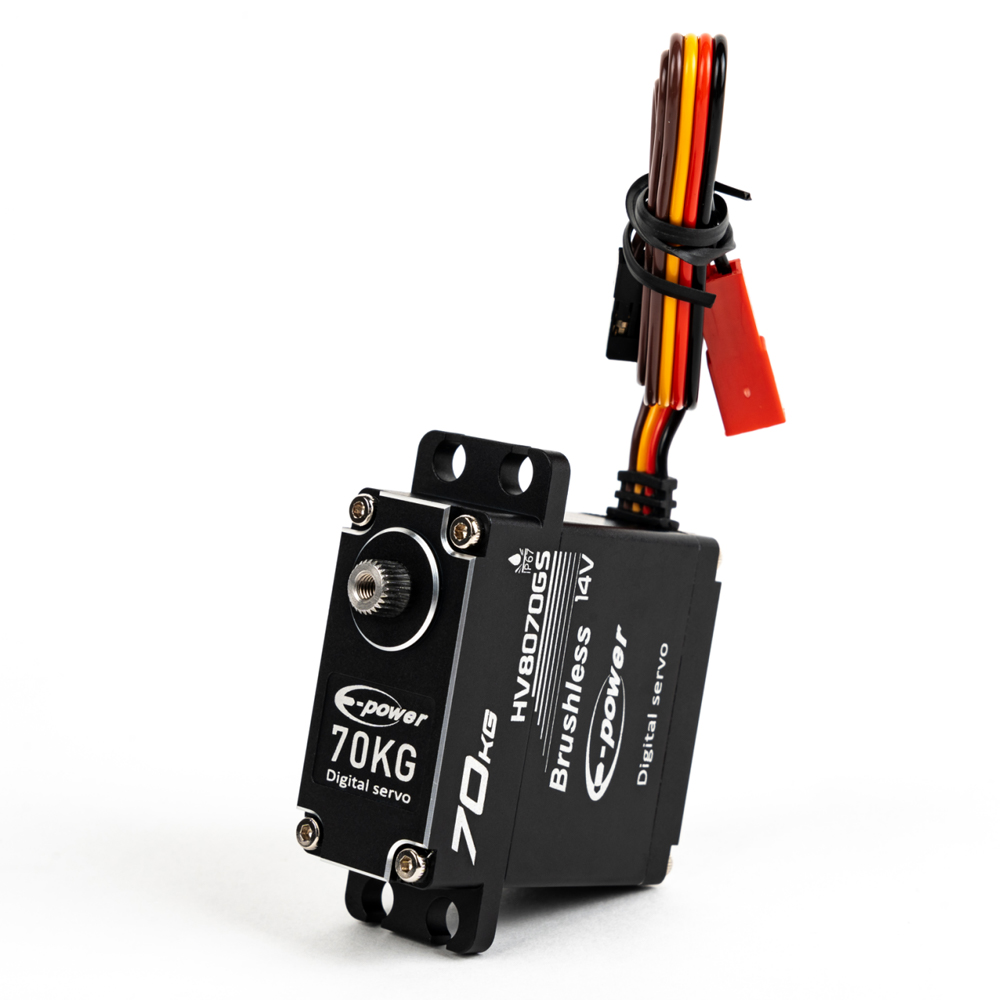

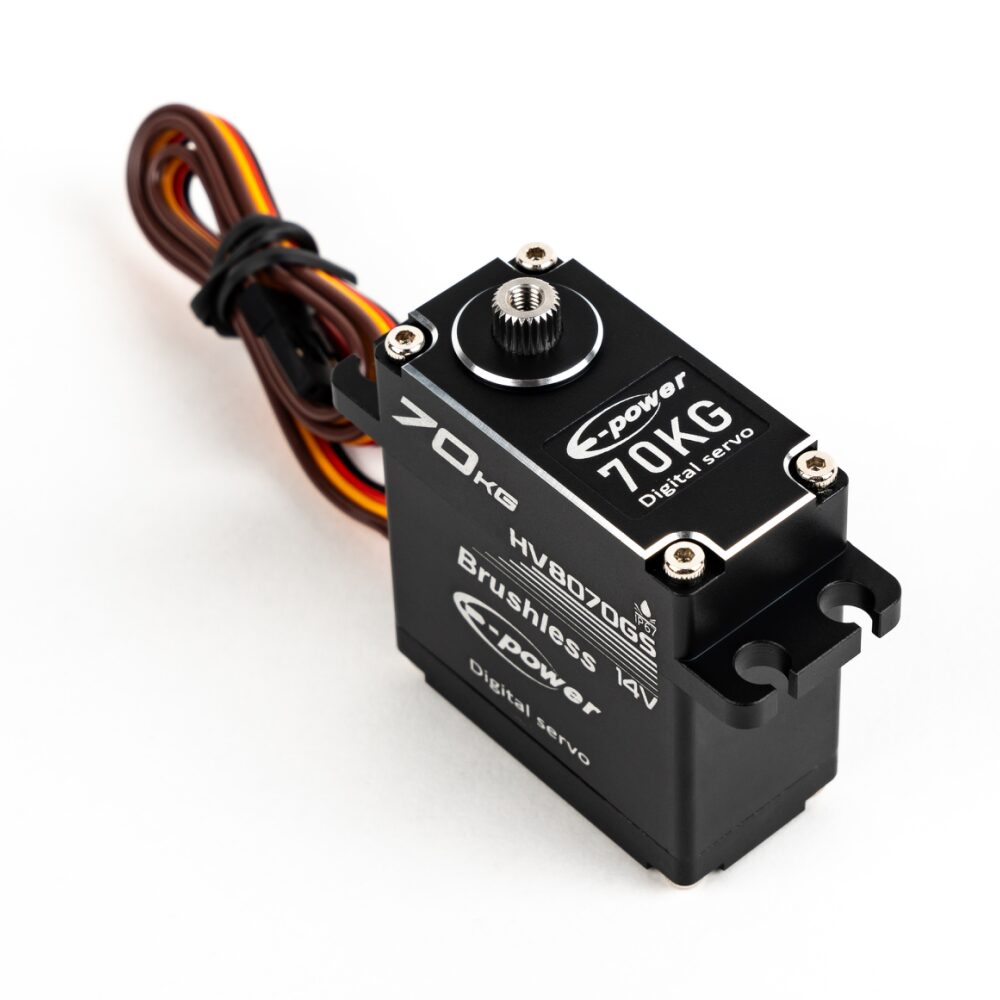

HB8070GS 70KG High Voltage Brushless Waterproof Digital Servo
70kg·cm high voltage brushless digital servo, metal gear, aluminum case, 10-15V, waterproof magnetic design. Ideal for RC cars and UAVs.
THE BENEFITS OF CHOOSING US
Description
The HB8070GS 70KG High Voltage Brushless Waterproof Digital Servo delivers 70kg·cm with a High Speed transit time, running on 10V~15V.

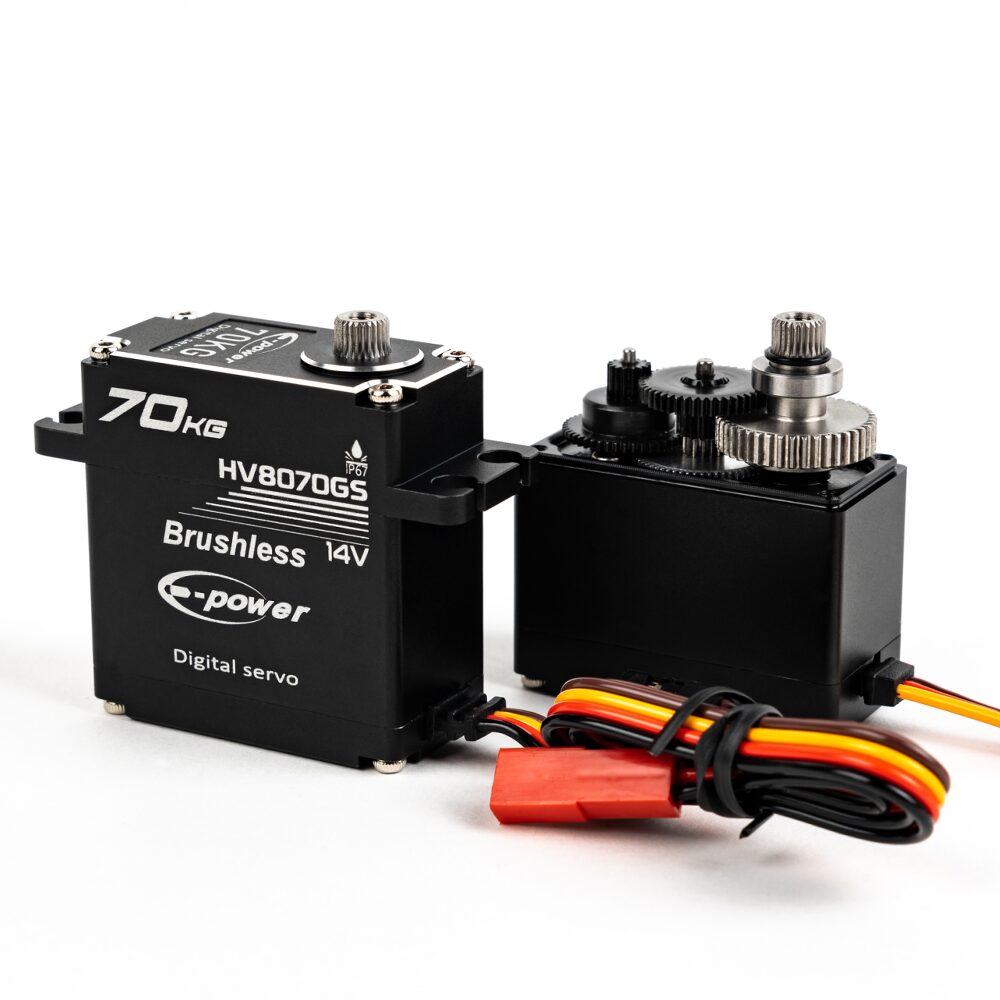

It is built with a Metal Gear train, Aluminum Alloy case, dual ball bearings (2BB), waterproof construction, 89g weight, 40x20x40.5mm body, JR JST 300mm connector as standard.
A brushless motor removes the brushes entirely, which means less internal wear and more consistent torque over a long service life.
Rated for 10V~15V: confirm that your BEC or receiver pack can supply the stall current of this servo before you install it, especially if you are driving several servos from one source.
Operating angle is available in 180°/270°/360° Optional, so the same body can be ordered for standard control-surface work or for winch and robot-joint applications that need more than 180°.
This is a heavy-duty industrial class servo – large-scale RC, agricultural machinery and robot joints where stall torque, not speed, is the limiting factor.
Ordering for a build or a distribution line? Tell us the torque, voltage range and connector you need and we will quote it. See also the full Yadovex range and our guides on choosing 6S long-range motors and 7-inch vs 9-inch propulsion.
Key specifications
| Torque | 70kg·cm |
| Speed | High Speed |
| Voltage Range | 10V~15V |
| Operating Angle | 180°/270°/360° Optional |
| Motor Type | Brushless Motor |
| Gear Material | Metal Gear |
| Case Material | Aluminum Alloy |
| Bearing | 2BB |
| Waterproof Rating | Waterproof |
| Weight | 89g |
| Dimensions | 40x20x40.5mm |
| Connector | JR JST 300mm |
The HB8070GS brushless digital servo delivers 70kg·cm of torque with a waterproof high-speed magnetic design, engineered for RC cars, trucks, crawlers, boats and UAV applications. Its coreless brushless motor with MOS drive and digital control offers fast response, smooth operation and strong holding power.
Built with a full metal gear train, aluminum alloy case and dual ball bearings (2BB), it features a 1usec dead band for sharp, accurate response. Control angle options of 180°, 270° and 360° are available to match your project needs.
Specifications
- Model: HB8070GS
- Ball Bearing: 2BB
- Driver Type: MOS Drive
- Motor Type: Brushless motor
- Potentiometer Type: Direct Drive
- Amplifier Type: Digital Control
- Dead Band Width: 1 usec
- Gear Material: Metal Gear
- Case Material: Aluminum Case
- Operation Voltage Range: 10V ~ 15V
- Operation Temperature Range: -20°C ~ +60°C
- Control Angle: 180°/270°/360° Optional
- Direction: Re-clockwise / Pulse Travel 500→2500 usec
- Control System: PWM Control (1500usec at center)
- Cycle Life: More than 100 million times without load
- Operation Travel: 60°±1
- Limit Angle: 180°/270°/360°±1 selectable
- Dimensions: 40 x 20 x 40.5 mm
- Weight: 89g (without servo horn)
- Standing Torque: 0.13sec/60°, 56kg·cm @10V; 0.1sec/60°, 65kg·cm @12V; 0.09sec/60°, 70kg·cm @14V
- Idle Current: 400mA @10V; 450mA @12V; 550mA @14V
- Running Current: 5500mA @10V; 6800mA @12V; 8000mA @14V
- Connector Wire Length: 300mm, JR JST plug
- Connector Wire Gauge: 22AWG
- Wire Info (Brown): Negative
- Wire Info (Red): Positive
- Wire Info (Black): Negative
- Wire Info (Yellow): Signal
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Same series: HB25KG 25KG Brushless Wate | HB35KG 35KG Brushless Wate | HB45KG 45KG Brushless Wate
Browse: High Voltage Servos | all RC servos
Related ranges: brushless waterproof servos | robot arm and bionic hand servos | micro servos
Read: Brushless vs Brushed Motors for Drones
Frequently asked questions
What torque does the 70kg servo deliver?
It is rated at 70kg-cm. Transit time is High Speed. This is a heavy-duty class servo for large-scale RC, agricultural machinery and robot joints.
What voltage does this servo need?
It runs 10V-15V. Check that your BEC or receiver pack can supply the stall current before you install it.
Is this servo waterproof?
Yes, it is rated waterproof, which makes it suitable for cars, boats and outdoor robots.
Do you supply these servos in bulk?
Yes. We supply samples for validation and then repeat bulk orders with custom wiring, connectors and OEM packaging.
