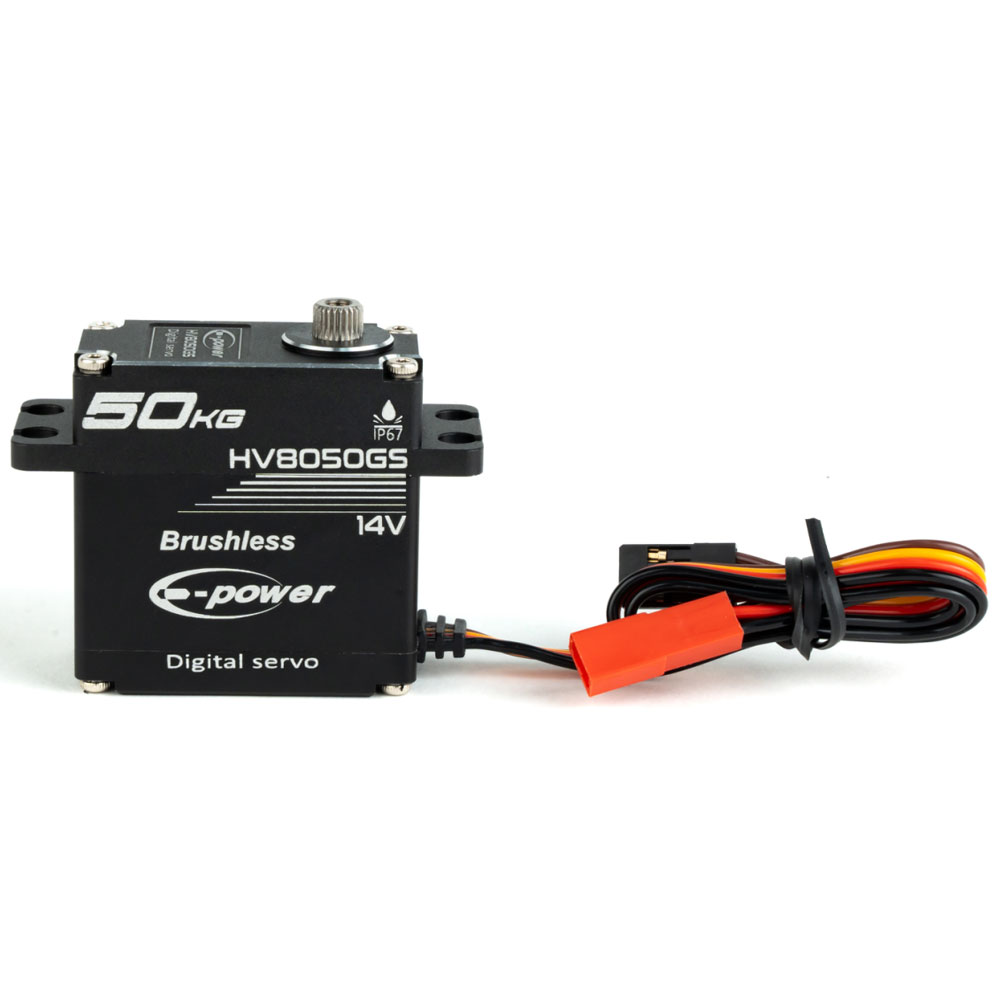

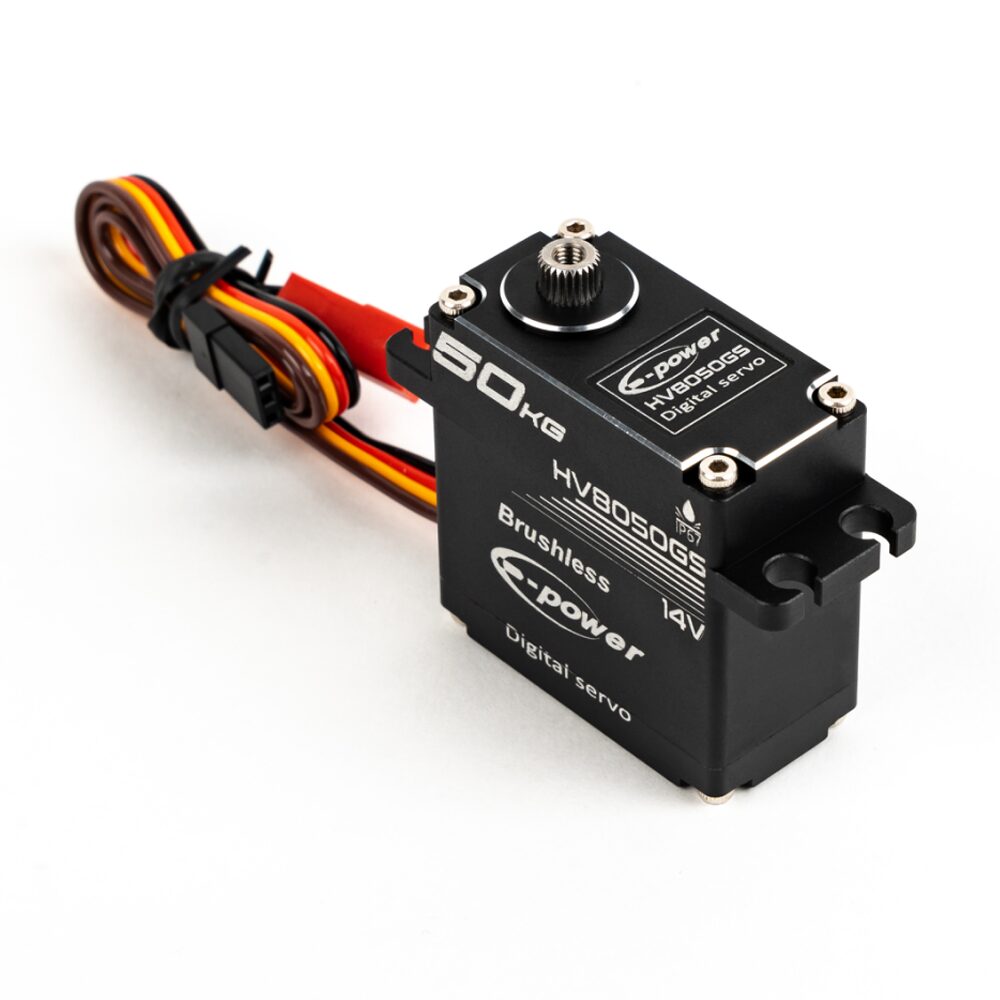

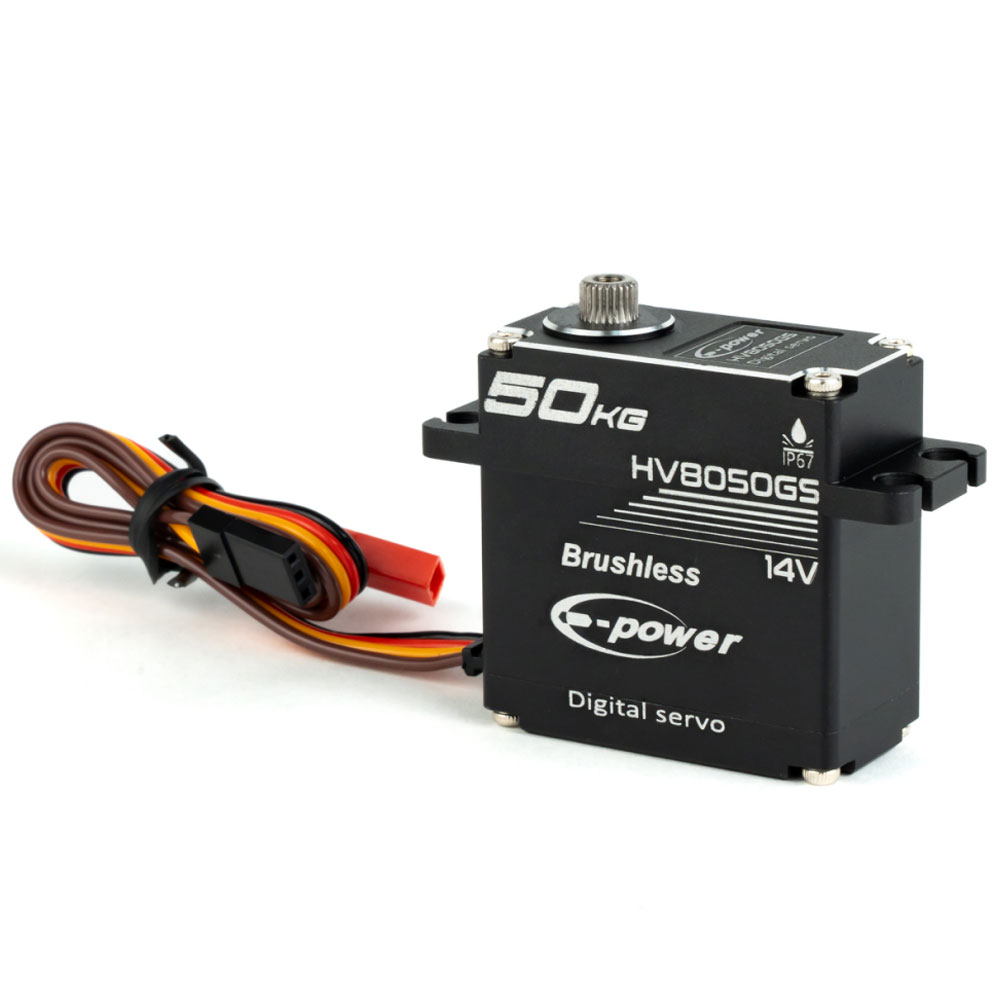

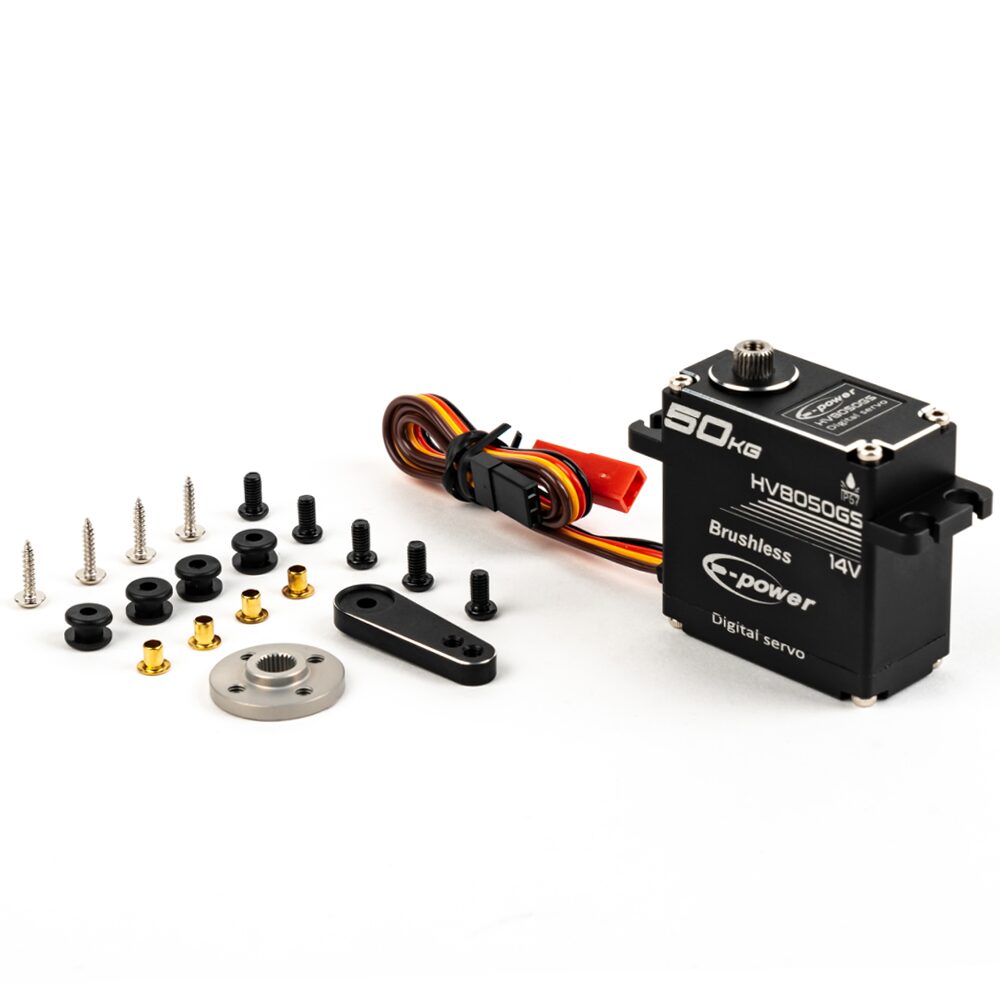

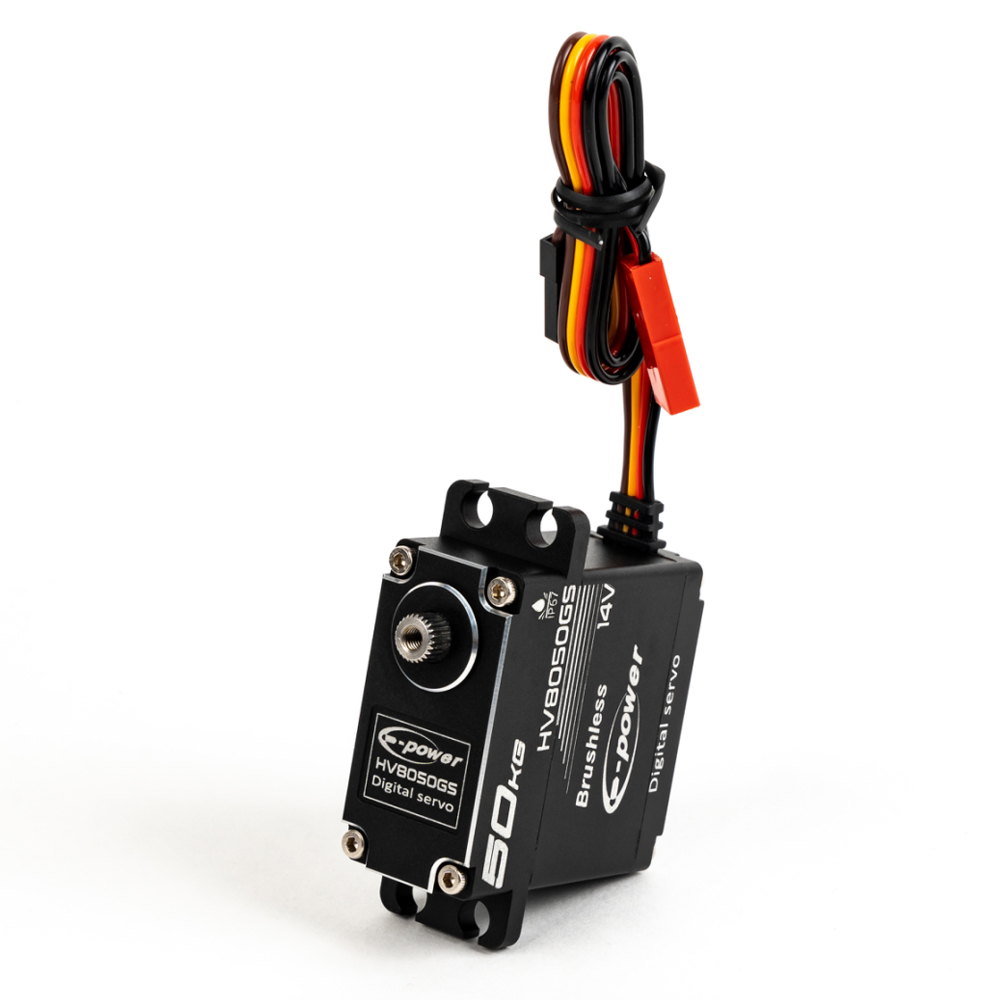

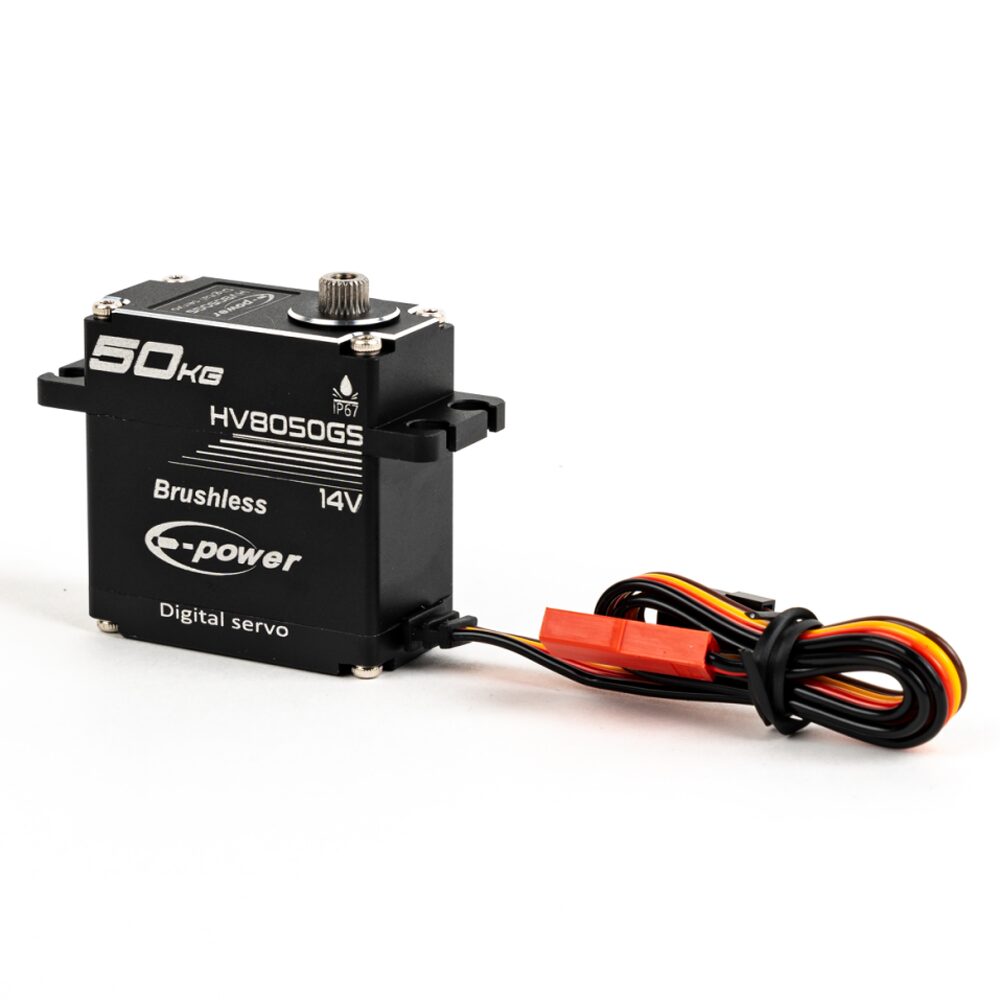

HV8050GS 50KG High Voltage Brushless Waterproof Digital Servo

Description

The HV8050GS 50KG High Voltage Brushless Waterproof Digital Servo delivers 50kg·cm with a High Speed transit time, running on 10V~15V.

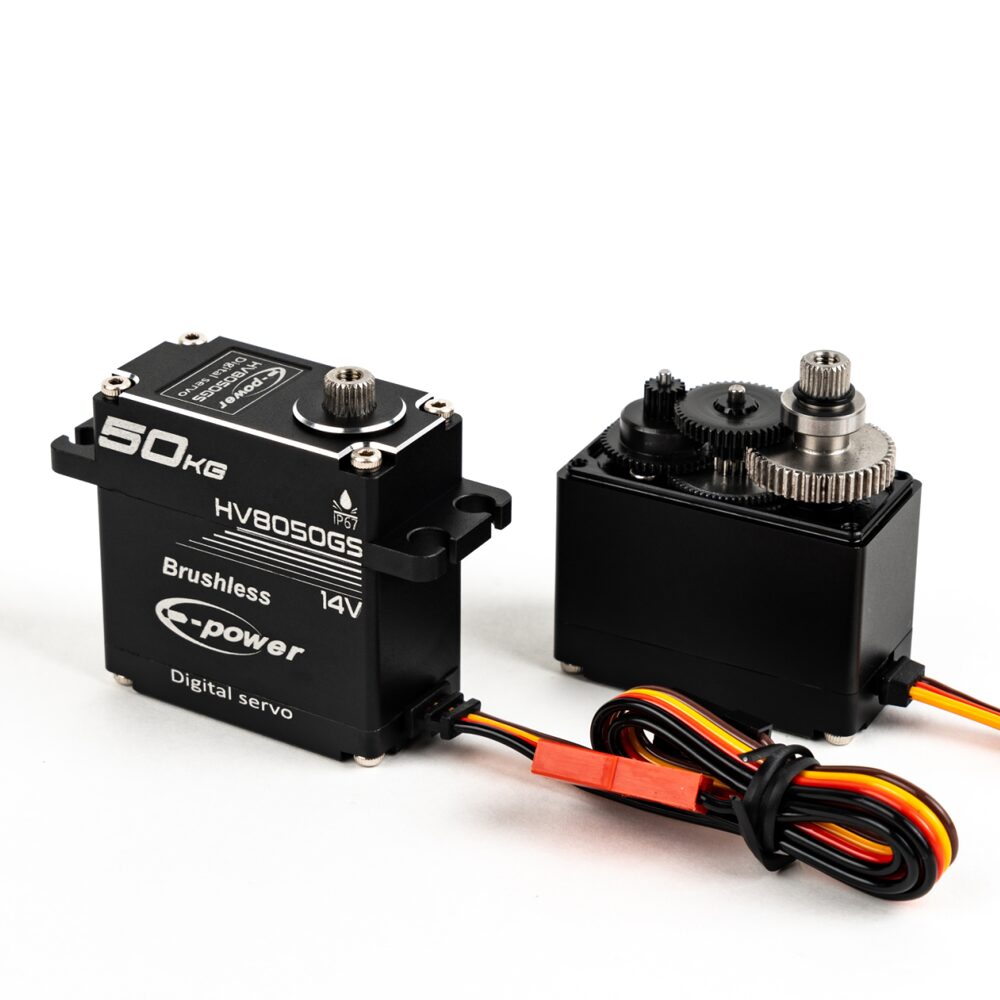

It is built with a Metal Gear train, Aluminum Alloy case, dual ball bearings (2BB), waterproof construction, 83g weight, 40x20x40.5mm body, JR JST 300mm connector as standard.

A brushless motor removes the brushes entirely, which means less internal wear and more consistent torque over a long service life.

Rated for 10V~15V: confirm that your BEC or receiver pack can supply the stall current of this servo before you install it, especially if you are driving several servos from one source.

Operating angle is available in 180°/270°/360° Optional, so the same body can be ordered for standard control-surface work or for winch and robot-joint applications that need more than 180°.

This is large-scale territory: 1:5 vehicles, industrial robot joints and UAV applications that need strong holding torque and a fast transit time.

Ordering for a build or a distribution line? Tell us the torque, voltage range and connector you need and we will quote it. See also the full Yadovex range and our guides on choosing 6S long-range motors and 7-inch vs 9-inch propulsion.

Key specifications

The HV8050GS brushless digital servo delivers 50kg·cm of torque with a waterproof high-speed magnetic design, engineered for RC cars, trucks, crawlers, boats and UAV applications. Its coreless brushless motor with MOS drive and digital control offers fast response, smooth operation and strong holding power.

Built with a full metal gear train, aluminum alloy case and dual ball bearings (2BB), it features a 1usec dead band for sharp, accurate response. Control angle options of 180°, 270° and 360° are available to match your project needs.

Specifications

• Model: HV8050GS
• Ball Bearing: 2BB
• Driver Type: MOS Drive
• Motor Type: Brushless motor
• Potentiometer Type: Direct Drive
• Amplifier Type: Digital Control
• Dead Band Width: 1 usec
• Gear Material: Metal Gear
• Case Material: Aluminum Case
• Operation Voltage Range: 10V ~ 15V
• Operation Temperature Range: -20°C ~ +60°C
• Control Angle: 180°/270°/360° Optional
• Direction: Re-clockwise / Pulse Travel 500→2500 usec
• Control System: PWM Control (1500usec at center)
• Cycle Life: More than 100 million times without load
• Operation Travel: 60°±1
• Limit Angle: 180°/270°/360°±1 selectable
• Dimensions: 40 x 20 x 40.5 mm
• Weight: 83g (without servo horn)
• Standing Torque: 0.09sec/60°, 37kg·cm @10V; 0.08sec/60°, 50kg·cm @14V
• Idle Current: 300mA @10V; 400mA @14V
• Running Current: 4000mA @10V; 5500mA @14V
• Connector Wire Length: 300mm, JR JST plug
• Connector Wire Gauge: 22AWG
• Wire Info (Brown): Negative
• Wire Info (Red): Positive
• Wire Info (Black): Negative
• Wire Info (Yellow): Signal

Related models and guides

Same series: HV8055GS 55KG High Voltage | HV8051GS 51KG High Voltage

Browse: High Voltage Servos | all RC servos

Related ranges: brushless waterproof servos | robot arm and bionic hand servos | micro servos

Read: Brushless vs Brushed Motors for Drones

Frequently asked questions

What torque does the 50kg servo deliver?

It is rated at 50kg-cm. Transit time is High Speed. This is large-scale territory: 1:5 vehicles, industrial robot joints and UAV applications.

What voltage does this servo need?

It runs 10V-15V. Check that your BEC or receiver pack can supply the stall current before you install it.

Is this servo waterproof?

Yes, it is rated waterproof, which makes it suitable for cars, boats and outdoor robots.

Do you supply these servos in bulk?

Yes. We supply samples for validation and then repeat bulk orders with custom wiring, connectors and OEM packaging.
