iFlight XING2 2207 FPV Racing Motor (1855KV / 2755KV)
$17.00
THE BENEFITS OF CHOOSING US
Description

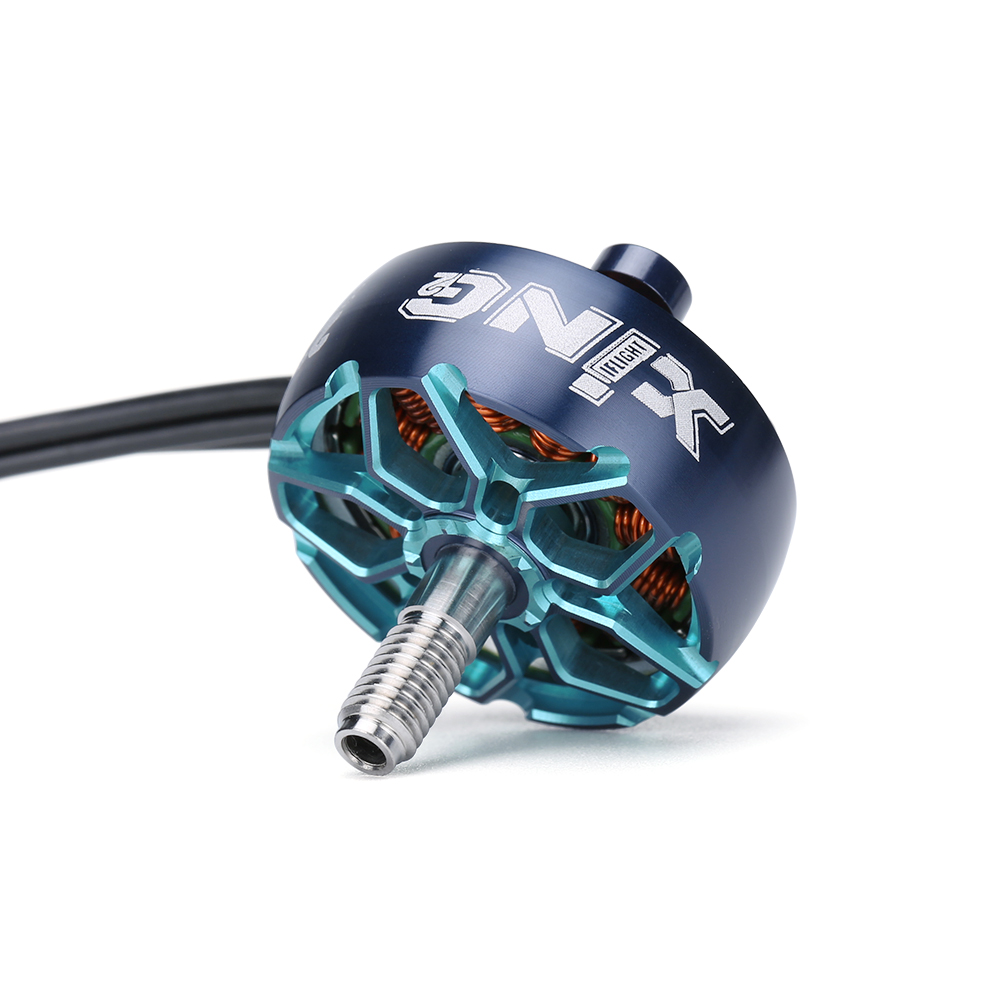

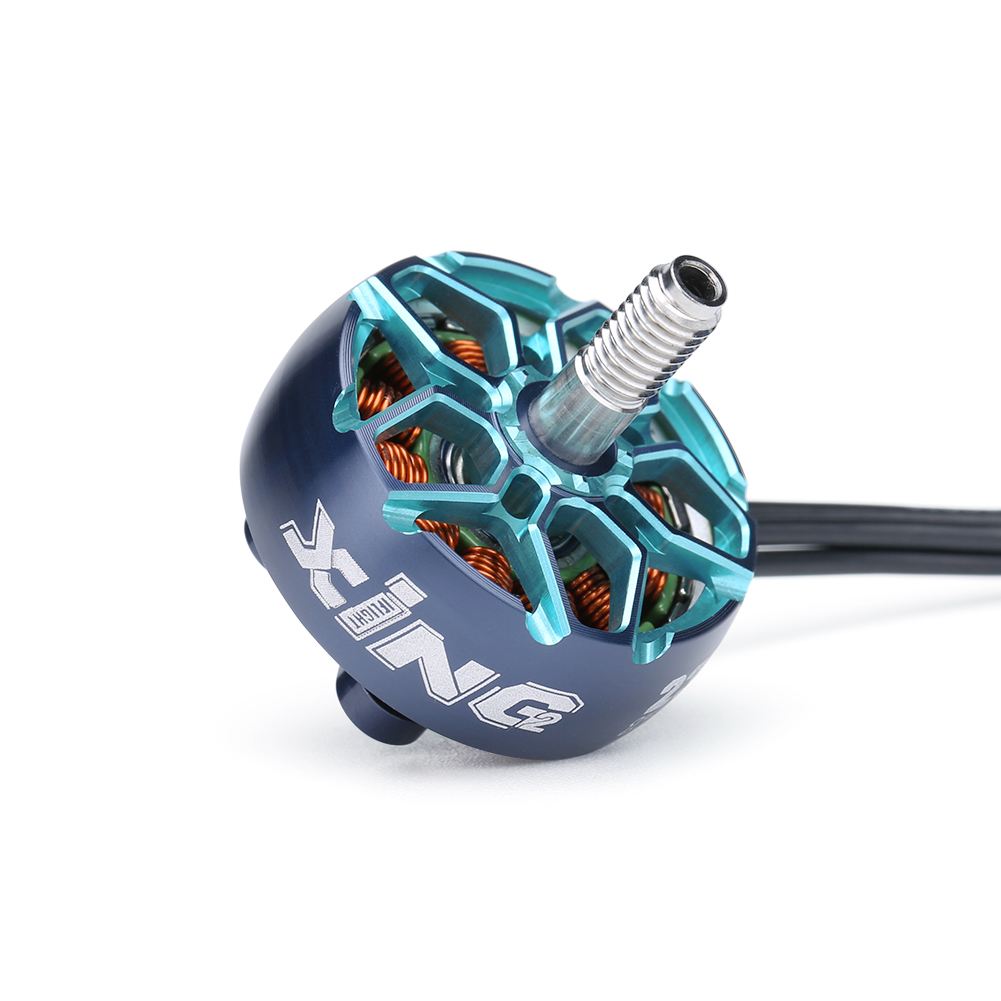

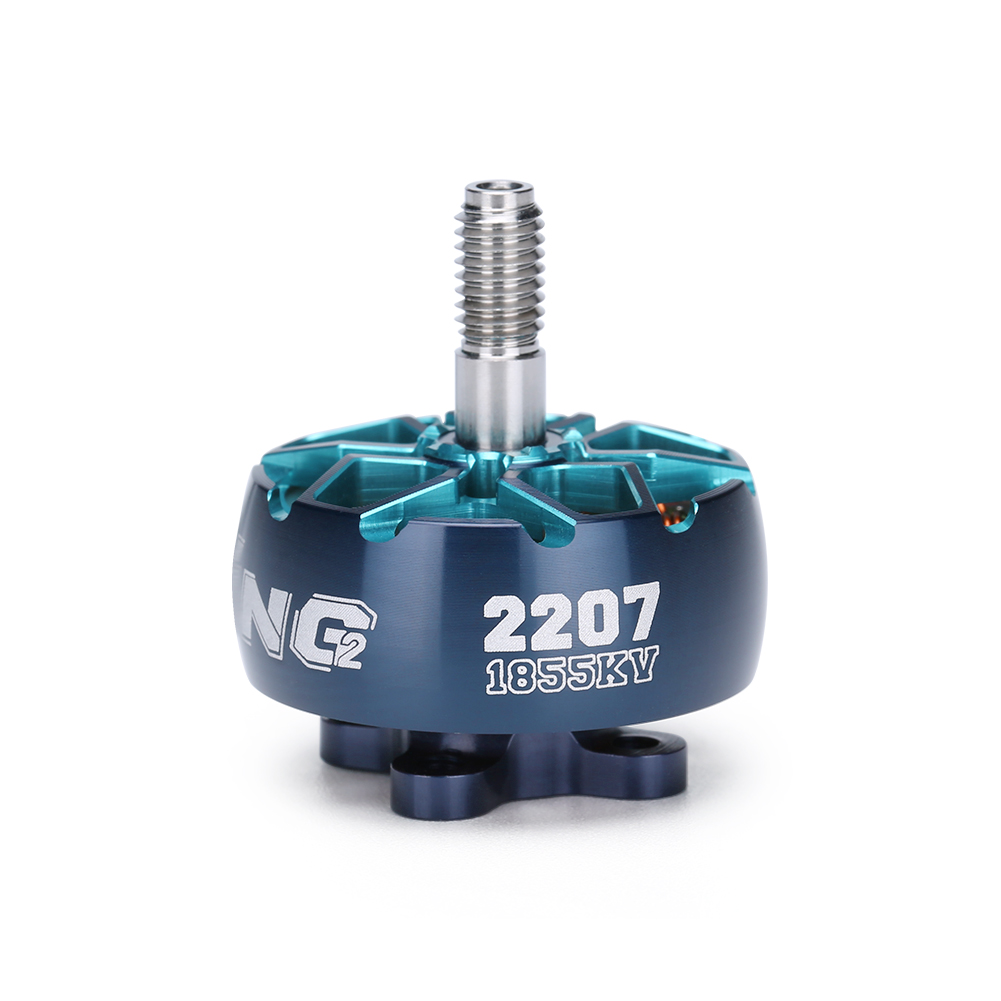

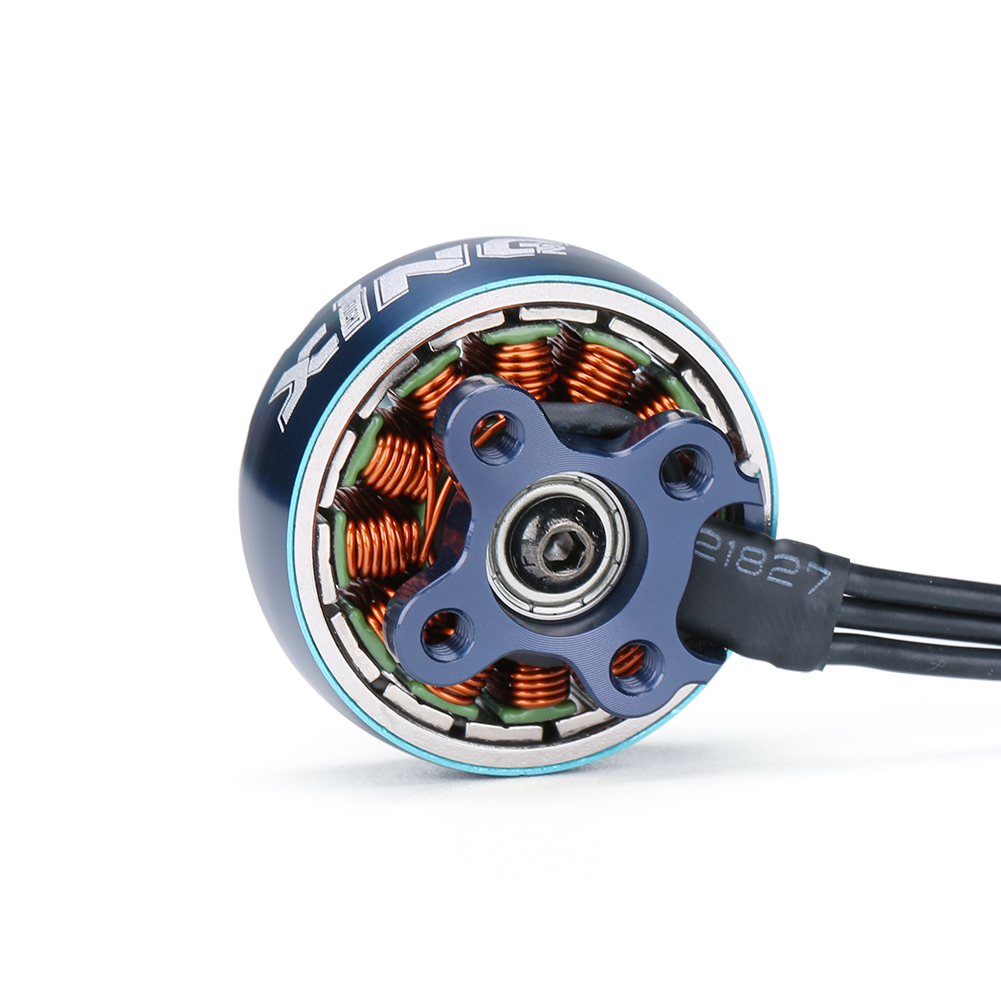

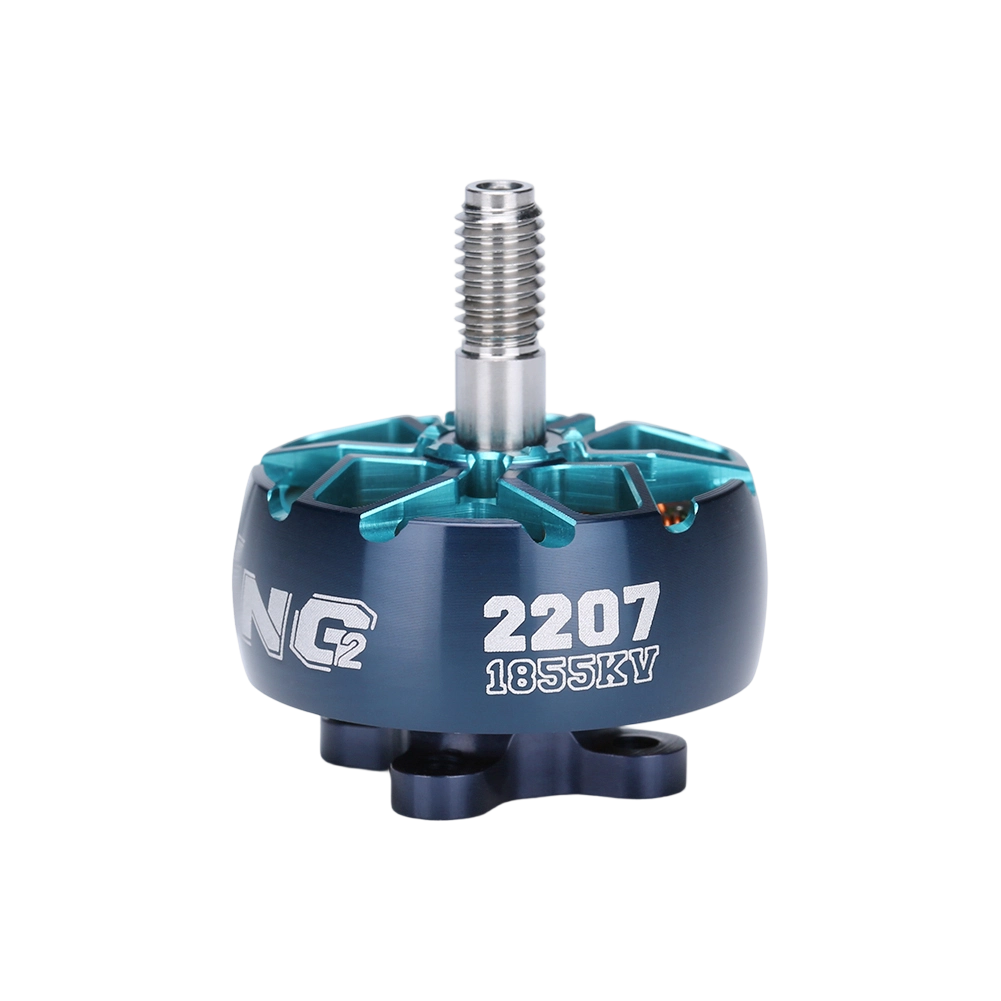

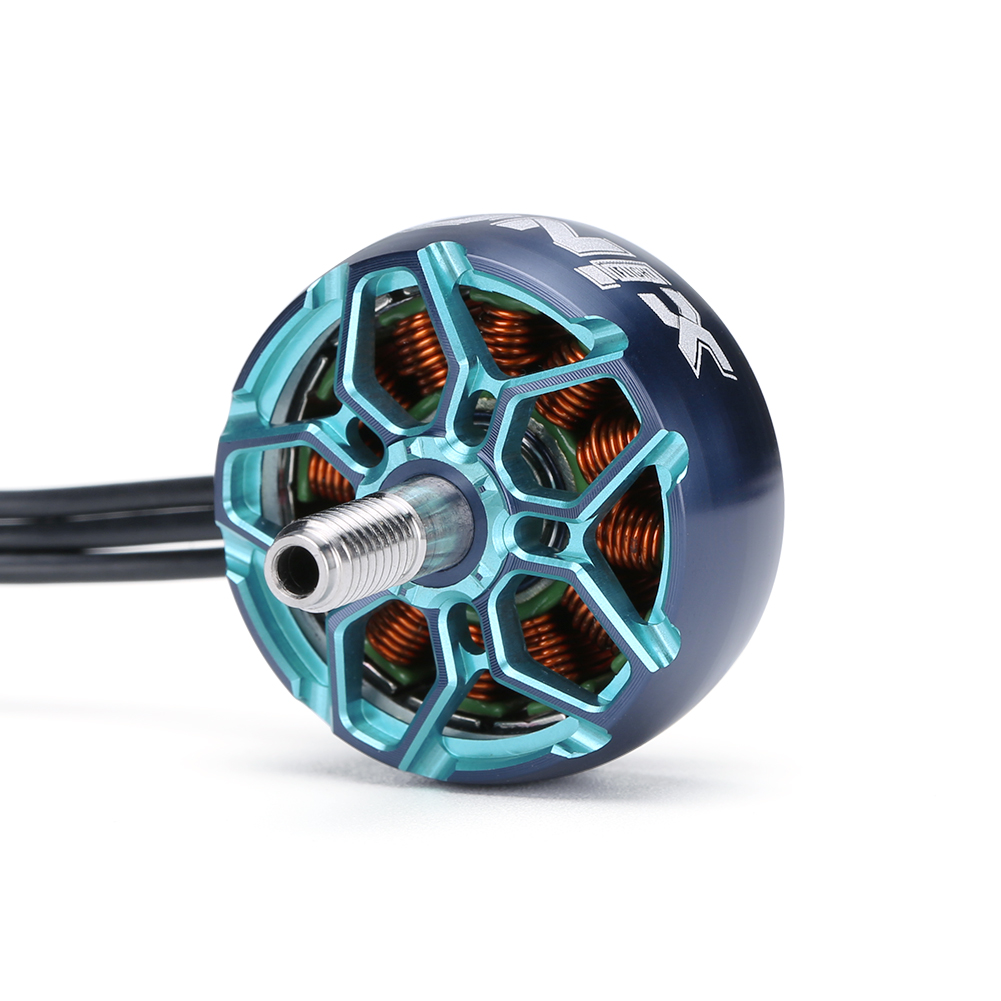

iFlight XING2 2207 Motor (1855KV / 2755KV) – genuine iFlight XING2 series FPV racing motor with dual KV options and NSK bearings for high-performance freestyle and racing drones.
Specifications
| Model | XING2 2207 |
| KV Rating | 1855KV / 2755KV |
| Weight | 31.6g |
| Dimensions | Ф29.08 x 32.6mm |
| Internal Resistance | 41.5mΩ |
| Input Voltage | 24V / 16V |
| Max Current | 35.08A / 40.35A |
| Max Power | 841.90W / 645.60W |
| Mounting | 4-hole, Ф16mm PCD, Ф3mm holes |
| Shaft | 5mm x 13.5mm |
| Lead Wire | 160mm / 20AWG |
| Magnet | N52H Arc Magnet |
| Structure | 12N14P |
| Bearing | NSK 9x4x4mm |

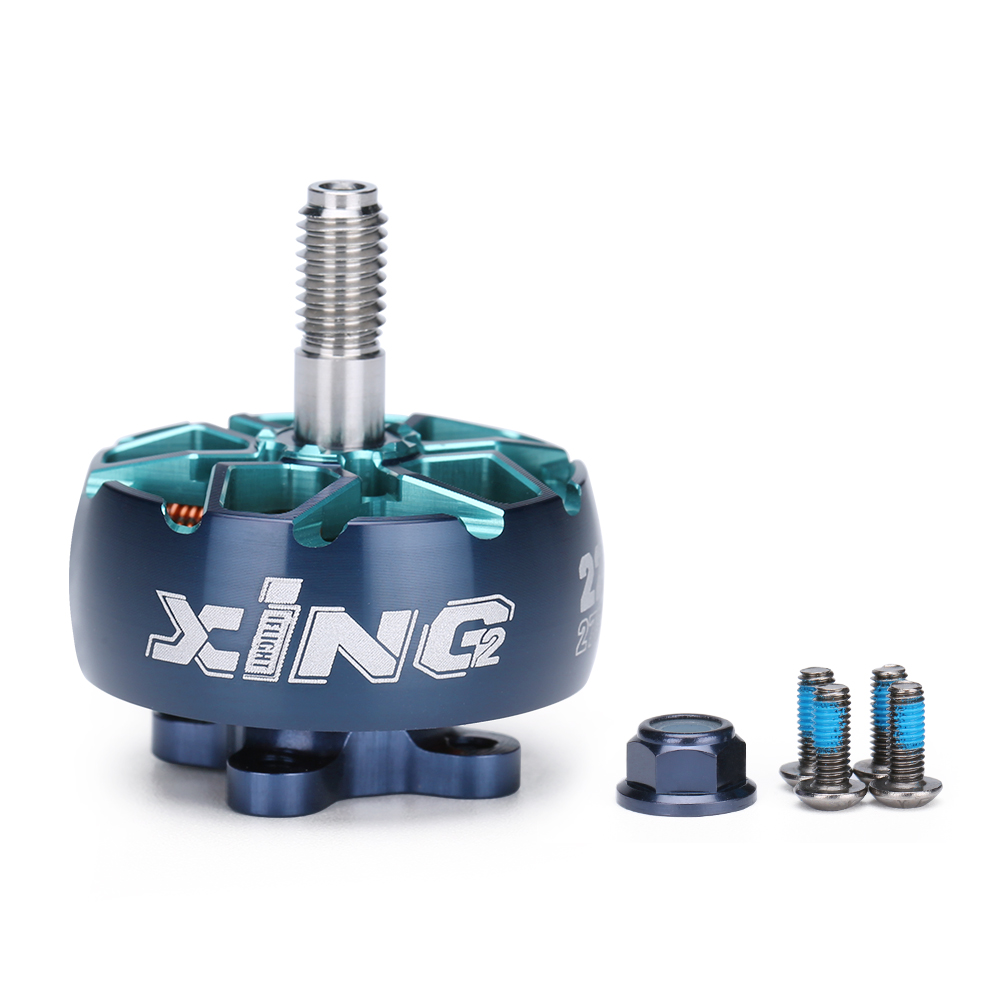

Package includes: 1x motor, 4x nickel-plated M3*8 screws, 1x M5 black flange nut.
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Related models: Wei2207 2300KV | Shu2306 freestyle
Browse: FPV racing and freestyle motors | all drone motors
Read: How to Choose FPV Drone Motors for 6S Long-Range Drones
Read: Outrunner vs Inrunner Brushless Motors | Brushless vs Brushed Motors for Drones
Frequently asked questions
What does 2207 mean in a motor model number?
2207 describes the stator: 22 mm diameter and 7 mm stack height. A larger stator gives more torque and heat capacity, which is what lets the motor turn a bigger propeller.

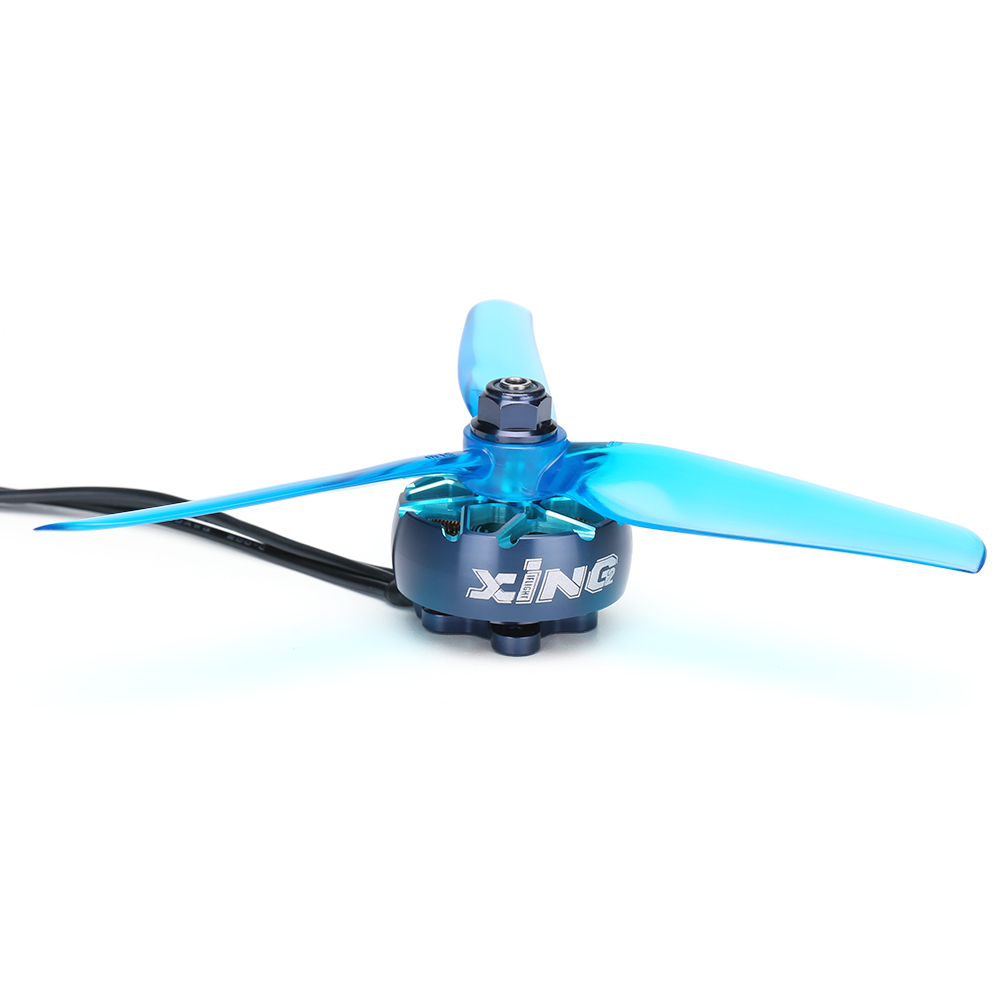

What prop for a 2207 1855KV motor?
5-inch tri-blade propellers such as 5x4.3x3 on 6S.
1855KV or 2755KV: which one?
1855KV suits 6S racing and freestyle; 2755KV is for 4S builds.
Is the XING2 2207 good for freestyle?
Yes, the 2207 stator gives smooth mid-range control on 5-inch props.
Do you sell 2207 motors in bulk?
Yes, with OEM marking and packaging.
Related products in this range
3115 900KV Long Range FPV Brushless Motor | X4108 380KV Heavy Lift Brushless Motor | X4215 400KV Heavy Lift Brushless Motor
Additional information
| Model | XING2 2207 |
|---|---|
| KV Rating | 1855KV / 2755KV |
| Weight | 31.6g |
| Dimensions | Ф29.08 x 32.6mm |
| Internal Resistance | 41.5mΩ |
| Input Voltage | 24V / 16V |
| Max Current | 35.08A / 40.35A |
| Max Power | 841.90W / 645.60W |
Quick Comparison
| iFlight XING2 2207 FPV Racing Motor (1855KV / 2755KV) remove | 2807 1300KV FPV Racing Brushless Motor remove | T4125 Heavy Lift Brushless Motor (440KV / 520KV) remove | X4108 380KV Heavy Lift Brushless Motor remove | X4320 350KV Heavy Lift Brushless Motor remove | X4215 400KV Heavy Lift Brushless Motor remove | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | iFlight XING2 2207 FPV Racing Motor (1855KV / 2755KV) remove | 2807 1300KV FPV Racing Brushless Motor remove | T4125 Heavy Lift Brushless Motor (440KV / 520KV) remove | X4108 380KV Heavy Lift Brushless Motor remove | X4320 350KV Heavy Lift Brushless Motor remove | X4215 400KV Heavy Lift Brushless Motor remove | ||||||||||||||||||||||||||||||||
| Image |  |  |  |  |  |  | ||||||||||||||||||||||||||||||||
| SKU | IFLIGHT-XING2-2207 | 2807-1300KV | T4125-440KV | X4108-380KV | X4320-350KV | X4215-400KV | ||||||||||||||||||||||||||||||||
| Rating | ||||||||||||||||||||||||||||||||||||||
| Price | $17.00 | $8.10 | $34.20 | $30.10 | ||||||||||||||||||||||||||||||||||
| Stock | ||||||||||||||||||||||||||||||||||||||
| Weight | N/A | 0.0564 kg | N/A | N/A | N/A | N/A | ||||||||||||||||||||||||||||||||
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A | ||||||||||||||||||||||||||||||||
| Additional information |
|
|
|
| ||||||||||||||||||||||||||||||||||
| Description | 2807-1300KV Brushless Motor – Compact Power for FPV The 2807-1300KV is a compact brushless motor built for 6–7 inch FPV platforms. With a Φ33.3×35.5mm form factor and 56.4g weight, it delivers 1085W max power — ideal for freestyle, racing, and general FPV builds. M5 shaft, 4-6S compatible. Custom specs available — contact us. | The Yadovex T4125 Brushless Motor (440KV/520KV) is designed for fixed-wing aircraft, FPV planes, 16 inch props. OEM/ODM customization and bulk supply are available. | 4108 Brushless Motor — Large torque, low noise, multi-rotor outrunner motor. Available in 380KV / 600KV. Precision-balanced, all-metal construction, ideal for multirotors, RC helicopters, and gimbal applications. | The Yadovex X4320 350KV Brushless Motor is designed for FPV drones, aerial photography, heavy-lift multirotors. OEM/ODM customization and bulk supply are available. | 4215 Brushless Motor — Heavy-duty metal outrunner motor for 13-inch FPV drones. Available in 400KV / 650KV. 224g all-metal construction, 3S–8S compatible, built for high-performance and heavy-lift applications. | |||||||||||||||||||||||||||||||||
| Add to cart |
