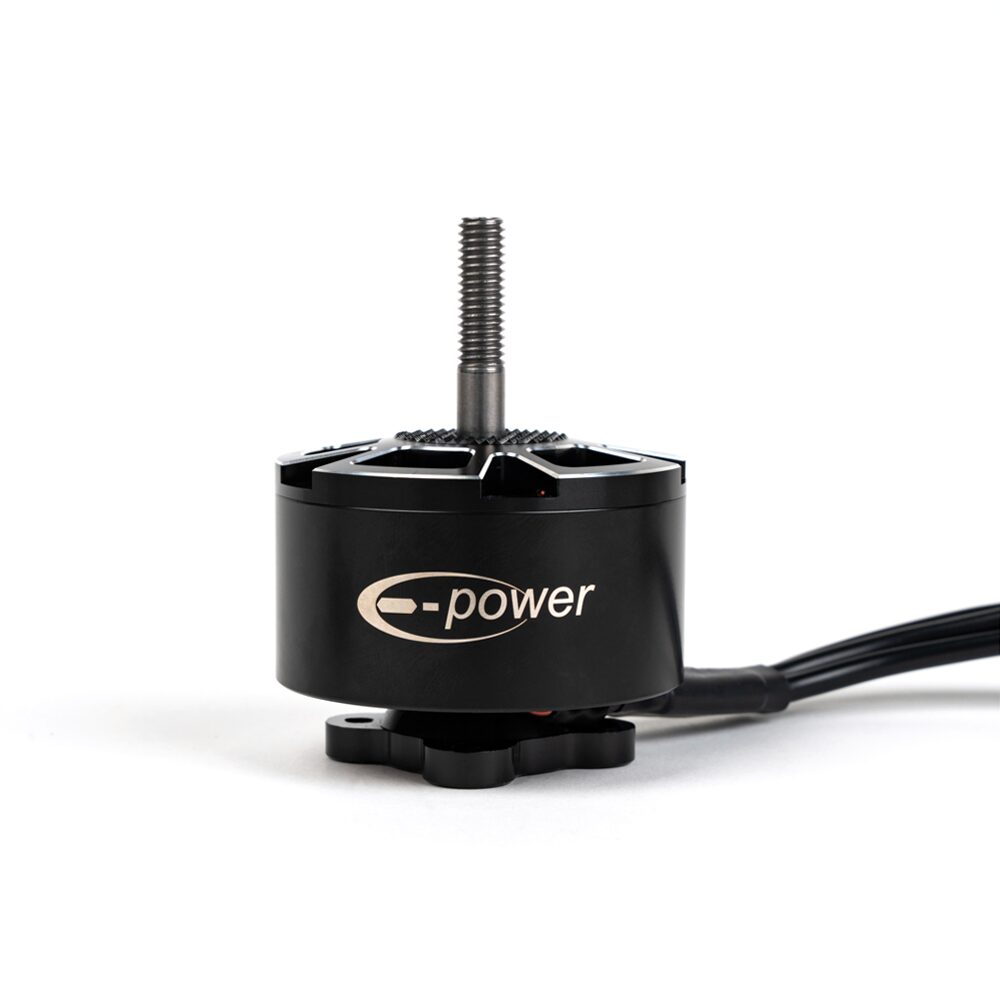

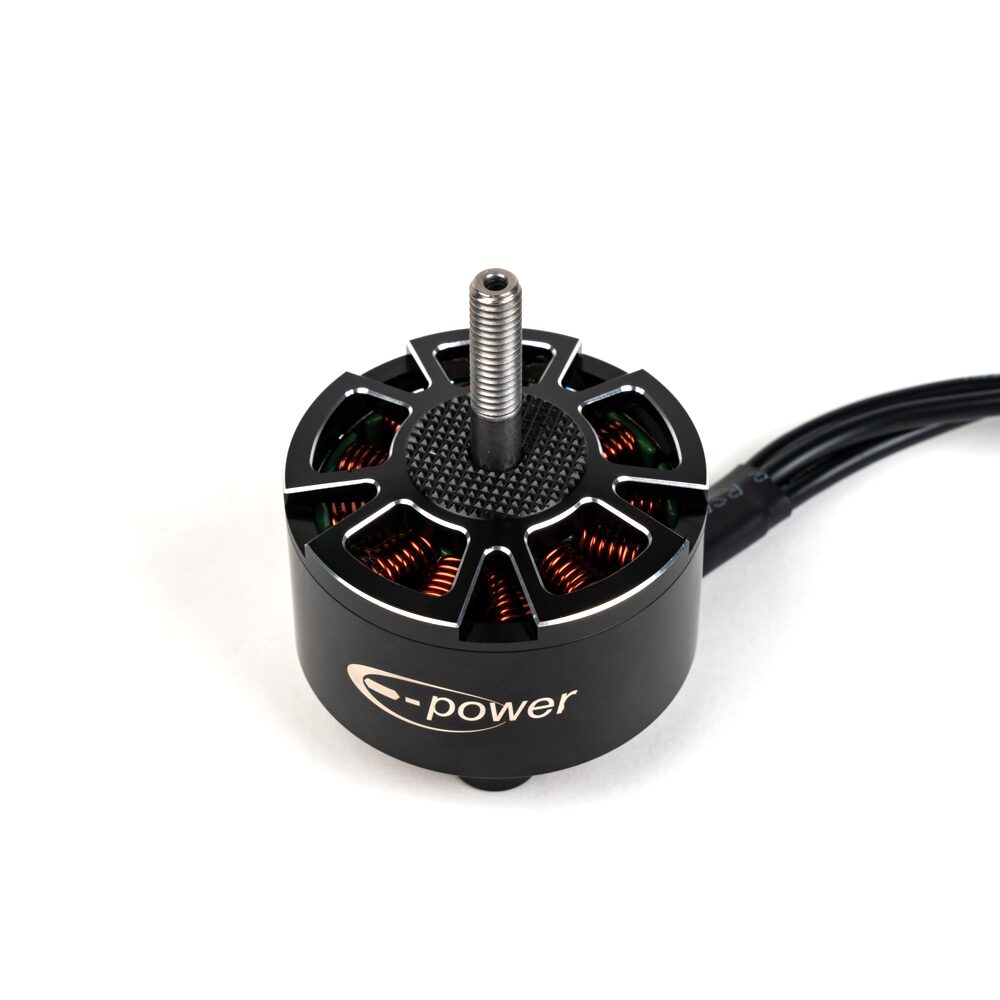

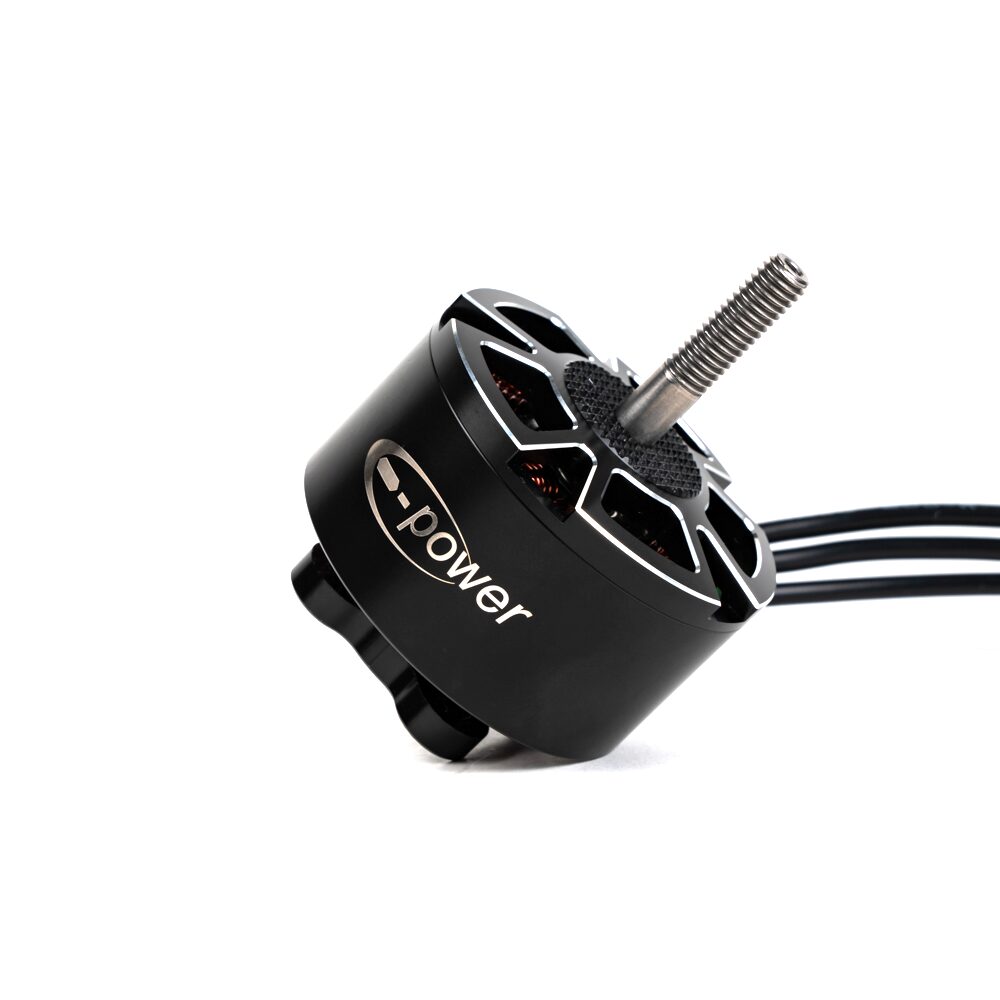

X4320 350KV Heavy Lift Brushless Motor
The Yadovex X4320 350KV Brushless Motor is designed for FPV drones, aerial photography, heavy-lift multirotors. OEM/ODM customization and bulk supply are available.
THE BENEFITS OF CHOOSING US
Description
The Yadovex X4320 350KV Brushless Motor is a high-performance brushless motor designed for FPV drones, aerial photography, heavy-lift multirotors. Built for reliable power output and stable operation, it delivers consistent thrust with low noise and high efficiency.
Engineered with precision winding and quality materials, this motor offers smooth startup, strong torque, and durable construction for demanding flight conditions. It is suitable for both sample testing and bulk production needs.
Specifications
| Model | X4320 350KV |
| KV Rating | 350KV |
| Voltage Range | 3S-12S LiPo |
| Motor Weight | 297g |
| Shaft Diameter | 6.0mm |
| Max Power | 3683W |
| Peak Current | 80A |
| Propeller | AHQ15x7-3 |
| Motor Dimensions | 51 x 40.5mm |
| Configuration | 12N14P |
| Lead Wire | 14#AWG 400mm |
| Idle Current | 1.4A |
Yadovex supports OEM and ODM customization, including motor KV, shaft size, cable length, connector type, propeller adapter, logo marking, packaging, and bulk order requirements.
Need a custom solution or bulk quotation? We support OEM/ODM customization, sample testing, and bulk supply for drone motors and UAV parts. Contact us: sales@yadovex.com | WhatsApp: +86 134 3230 0164
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Same range: X4108 380KV Heavy Lift Bru | X4215 400KV Heavy Lift Bru | BE4108 580KV Heavy Lift Br
Browse: Cinelifter & Heavy Lift Motors | all drone motors
Read: 7-Inch vs 9-Inch Long-Range Drone Motors
Read: Outrunner vs Inrunner Brushless Motors | Brushless vs Brushed Motors for Drones
Frequently asked questions
What does the 4320 in X4320 mean?
4320 describes the stator: 43 mm diameter and 20 mm stack height. A larger stator gives more torque and heat capacity, which is what lets the motor turn a bigger propeller.
What propellers suit the X4320 350KV motor?
It is designed for AHQ15x7-3. Check the thrust table for your exact propeller and cell count before you size the power system.
What battery does the X4320 350KV run on?
3S-12S LiPo. Confirm the pack continuous rating covers the hover current with margin.
What ESC does the X4320 350KV need?
Size the ESC above 80A and leave headroom for heat, especially in a confined frame.
Do you supply the X4320 350KV in bulk?
Yes. We supply samples for validation and then repeat bulk orders with custom KV, cable length, connectors and OEM packaging.
