X5215 Heavy Lift Brushless Motor
The X5215 brushless motor series is designed for heavy-lift drones, agricultural drones, and large UAV platforms. Available in 340KV and 500KV variants, it delivers up to 9.8kg thrust with stable, low-noise operation. OEM/ODM customization and bulk supply are available.
THE BENEFITS OF CHOOSING US
Description

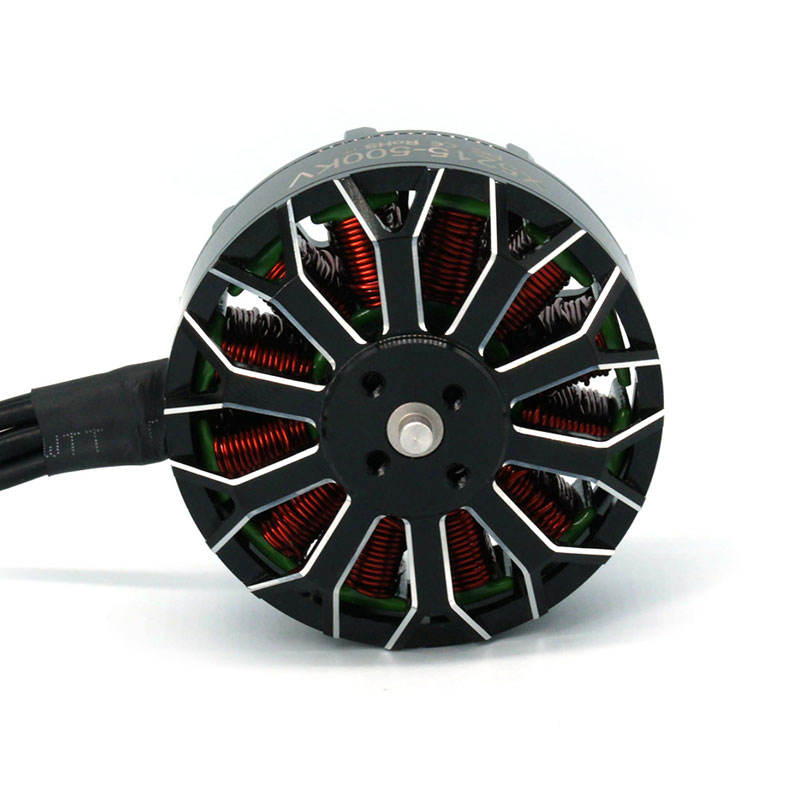

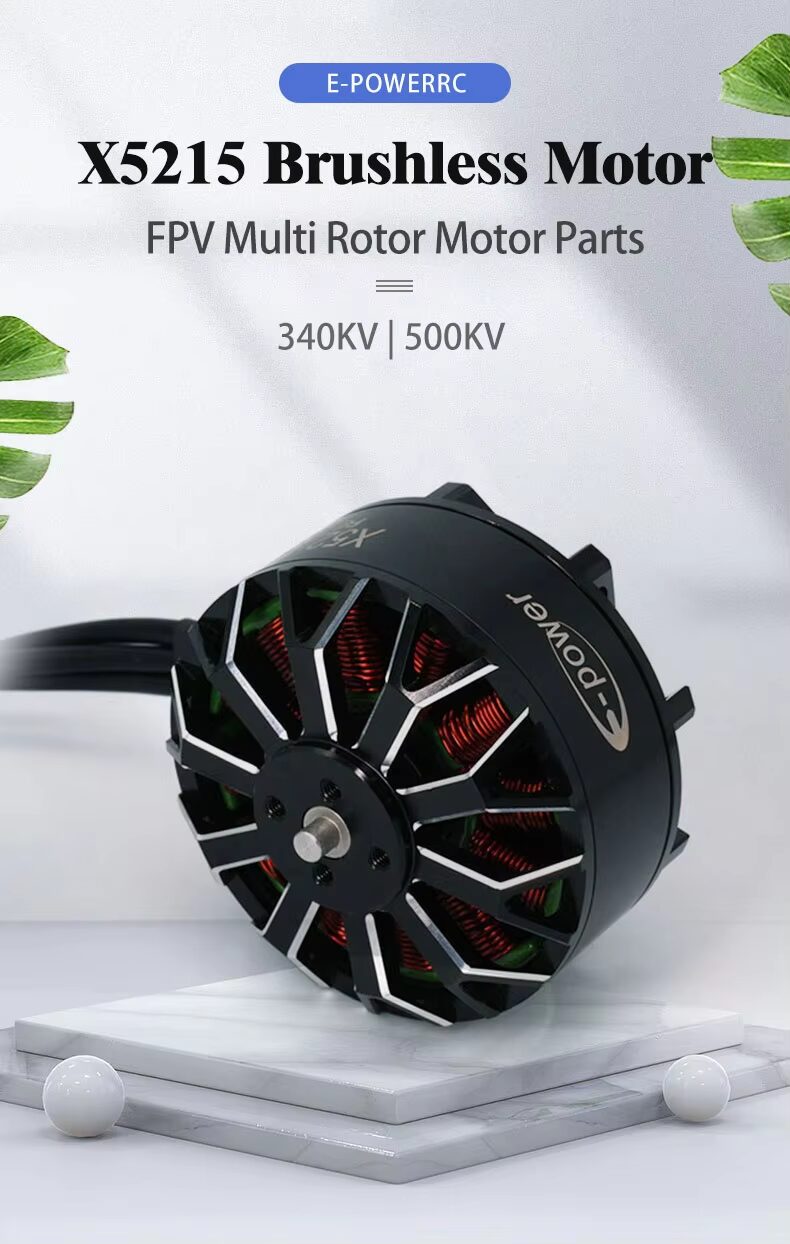

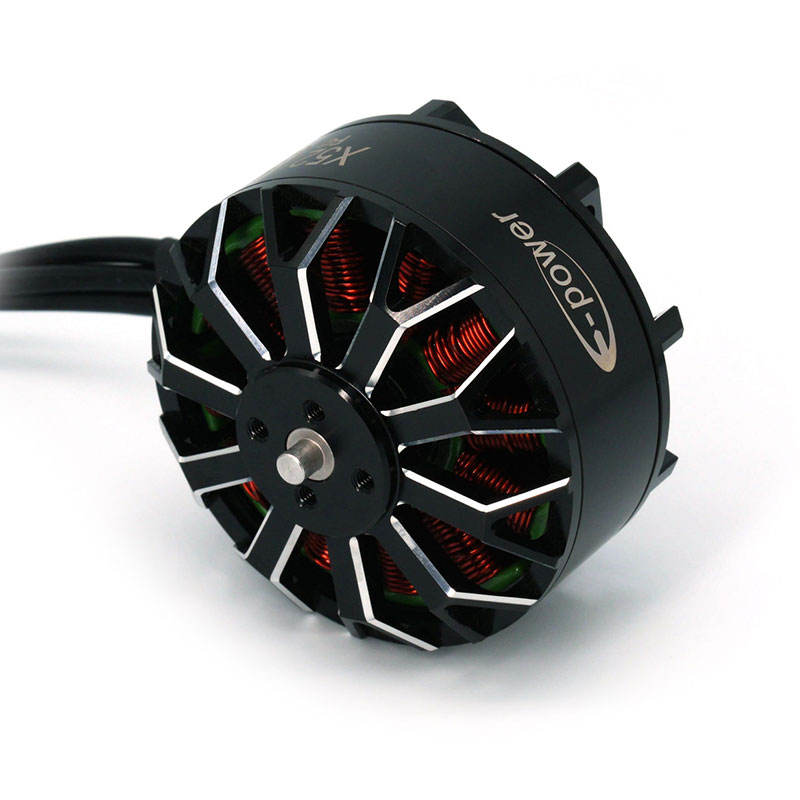

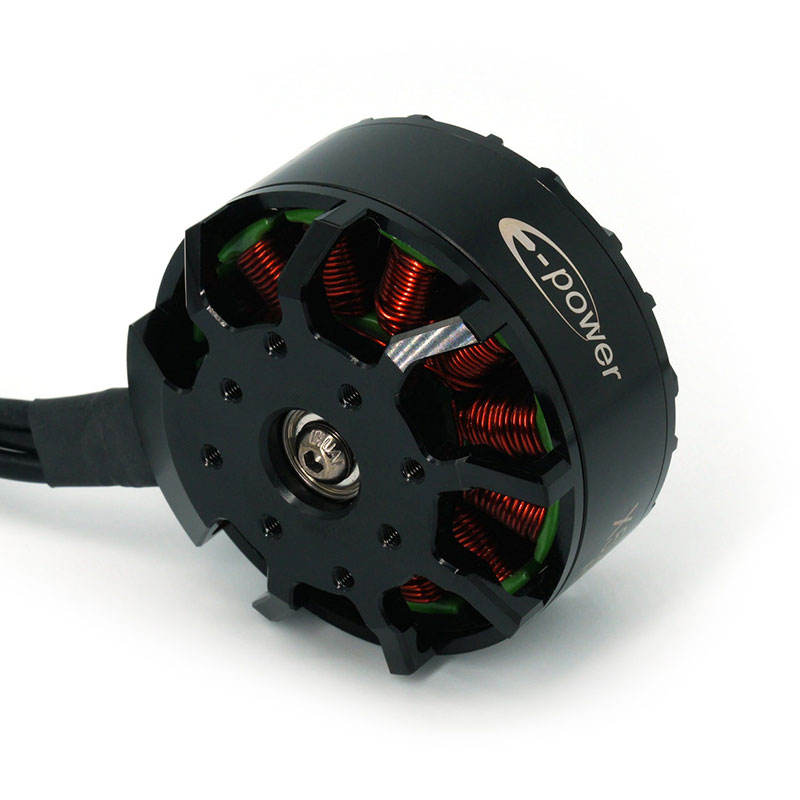

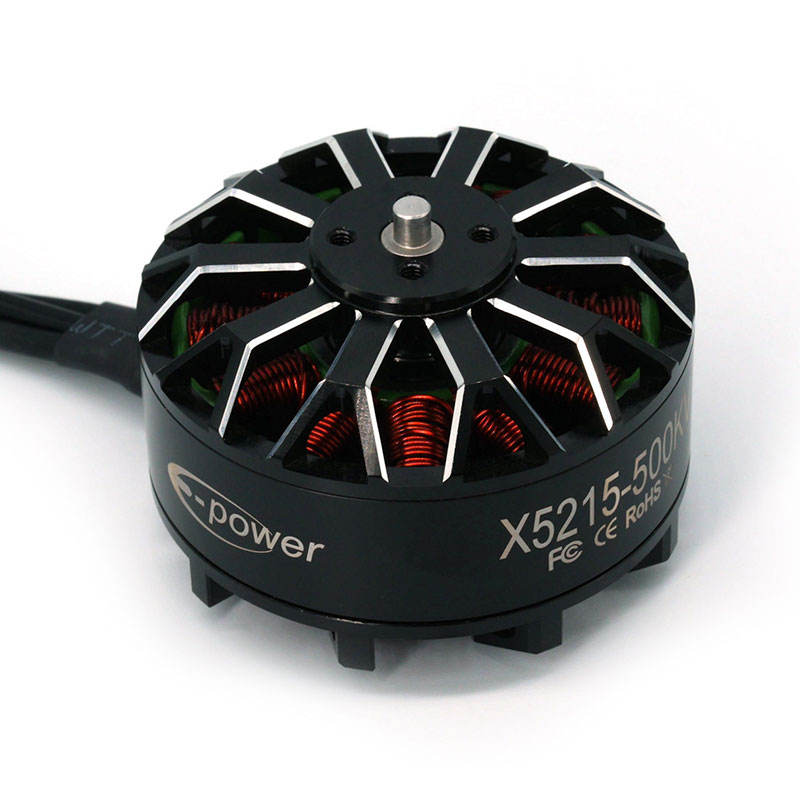

The Yadovex X5215 brushless motor is a high-performance heavy-lift multi-rotor motor series designed for large drones, UAV platforms, agricultural drones, aerial photography rigs, and custom multirotor applications. Available in 340KV and 500KV variants, it delivers up to 9.8kg thrust and 3603W max power, making it well-suited for projects that demand high lifting capacity and reliable in-flight performance.

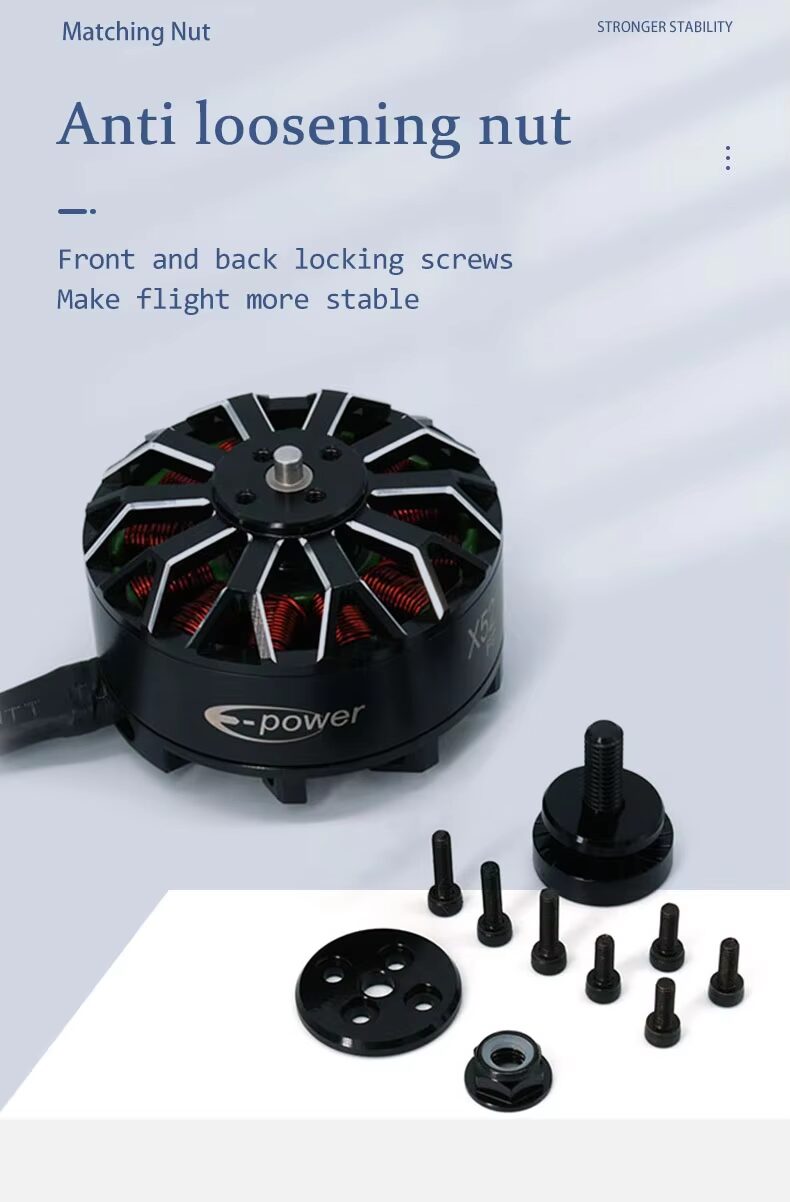

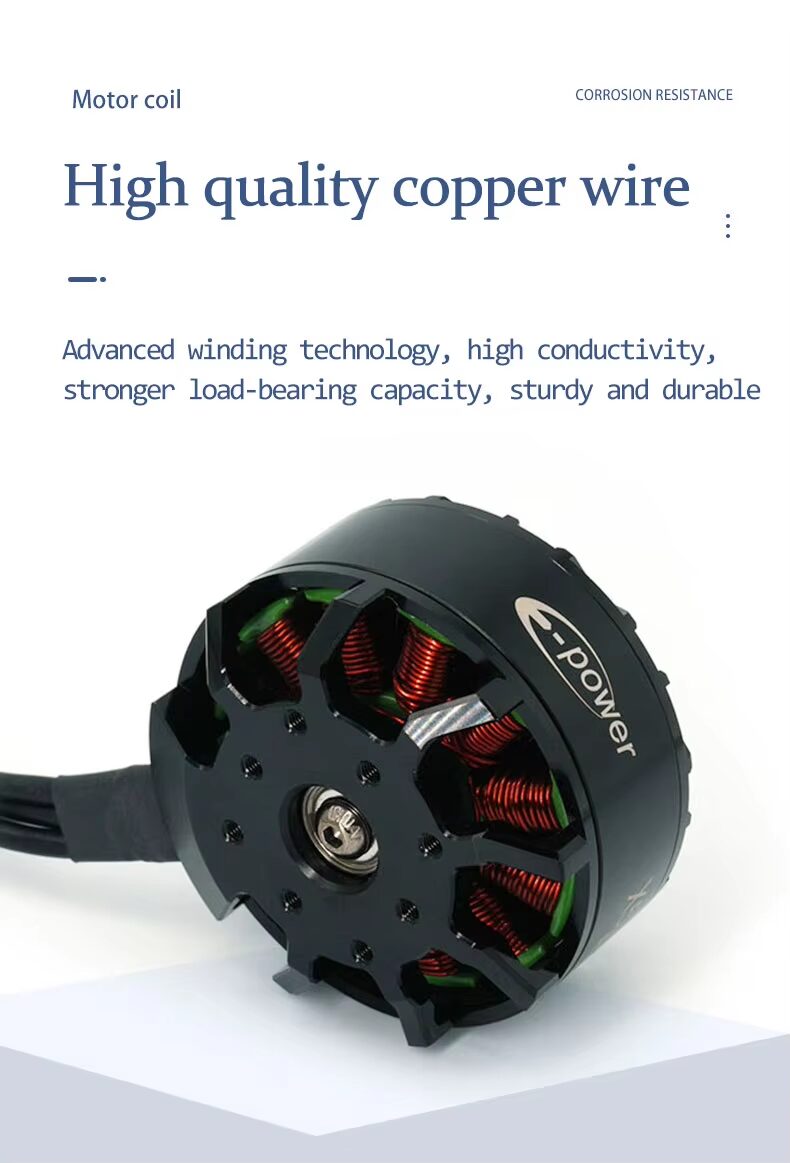

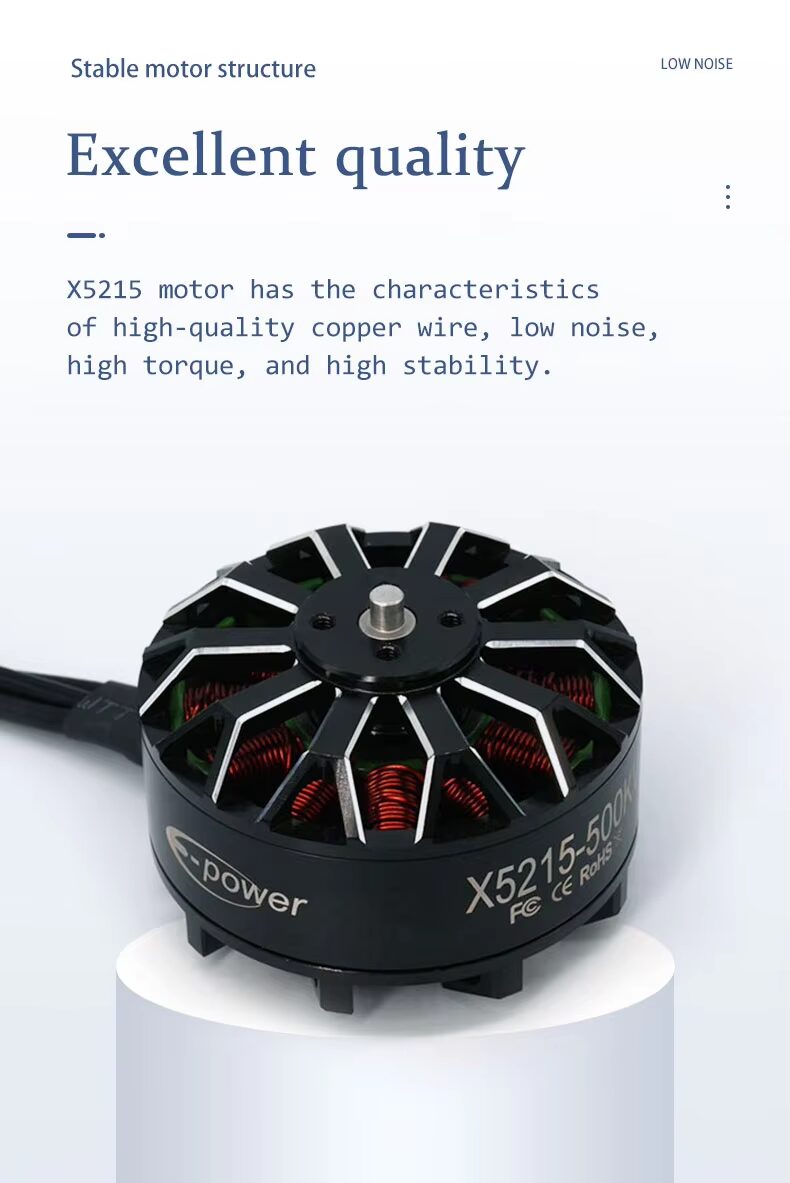

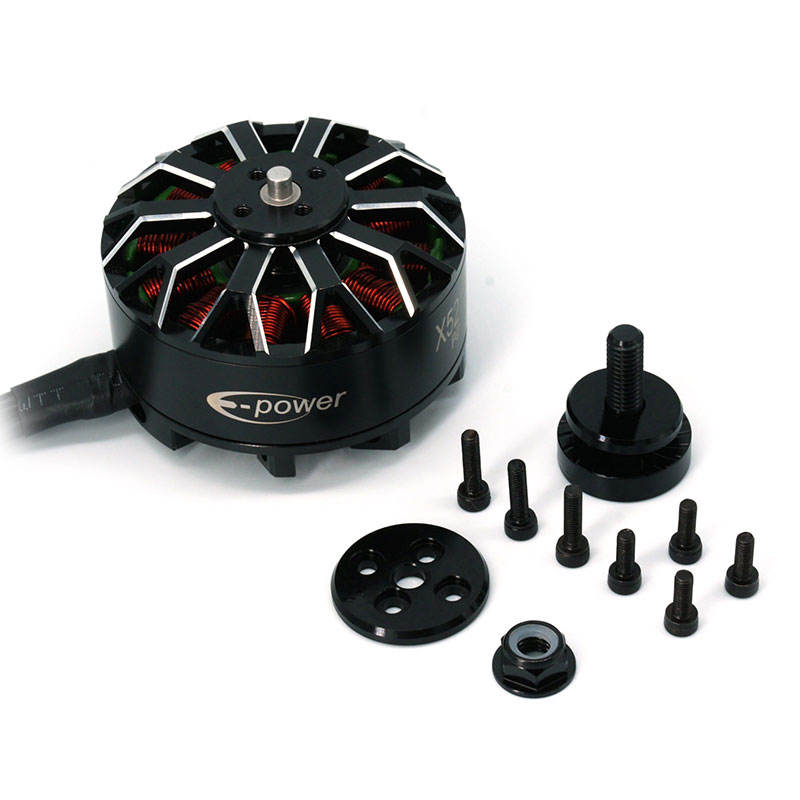

Built with a 52.8mm stator diameter, 15.0mm stator length, 60.8 x 40.0mm motor dimensions, and 12N14P configuration, this motor features high-quality copper wire with advanced winding technology for high conductivity and corrosion resistance. The 4mm bearing shaft, 14AWG x 400mm connector wire, and front and back anti-loosening nuts with matching locking screws ensure durable, stable, and low-noise operation.
With a 4-8S LiPo voltage range and 22 inch propeller support, the X5215 series provides strong power output and stable operation for heavy-lift drones, agricultural spraying drones, aerial photography and cinematography platforms, long-endurance UAVs, multi-rotor aircraft, and replacement or upgrade projects. It is suitable for both sample testing and bulk production needs.
Yadovex supports OEM and ODM customization, including motor KV, shaft size, cable length, connector type, propeller adapter, logo marking, packaging, and bulk order requirements. If you need a reliable heavy-lift brushless motor for production, repair, or distribution, we can help match the right configuration based on your application.
Need a custom solution or bulk quotation?
We support OEM/ODM customization, sample testing, and bulk supply for drone motors, servos, propellers, frames, and related UAV parts. Please contact us for product selection, pricing, and customization details.
WhatsApp: +86 134 3230 0164
WeChat: 13432300164
Product Details
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Same range: X4108 380KV Heavy Lift Bru | X4215 400KV Heavy Lift Bru | BE4108 580KV Heavy Lift Br
Browse: Cinelifter & Heavy Lift Motors | all drone motors
Read: 7-Inch vs 9-Inch Long-Range Drone Motors
Read: Outrunner vs Inrunner Brushless Motors | Brushless vs Brushed Motors for Drones
Frequently asked questions
What does the 5215 in X5215 mean?
5215 describes the stator: 52 mm diameter and 15 mm stack height. A larger stator gives more torque and heat capacity, which is what lets the motor turn a bigger propeller.
What propellers suit the 5215 340KV motor?
It is designed for 13 to 16 inch propellers. Check the thrust table for your exact propeller and cell count before you size the power system.
What battery does the 5215 340KV run on?
4-8S LiPo. Confirm the pack continuous rating covers the hover current with margin.
What ESC does the 5215 340KV need?
Size the ESC above the maximum current in the thrust table, with headroom for heat.
Do you supply the 5215 340KV in bulk?
Yes. We supply samples for validation and then repeat bulk orders with custom KV, cable length, connectors and OEM packaging.
Related products in this range
3115 900KV Long Range FPV Brushless Motor | 3515 400KV Cinelifter Brushless Motor | 2807 1300KV FPV Racing Brushless Motor

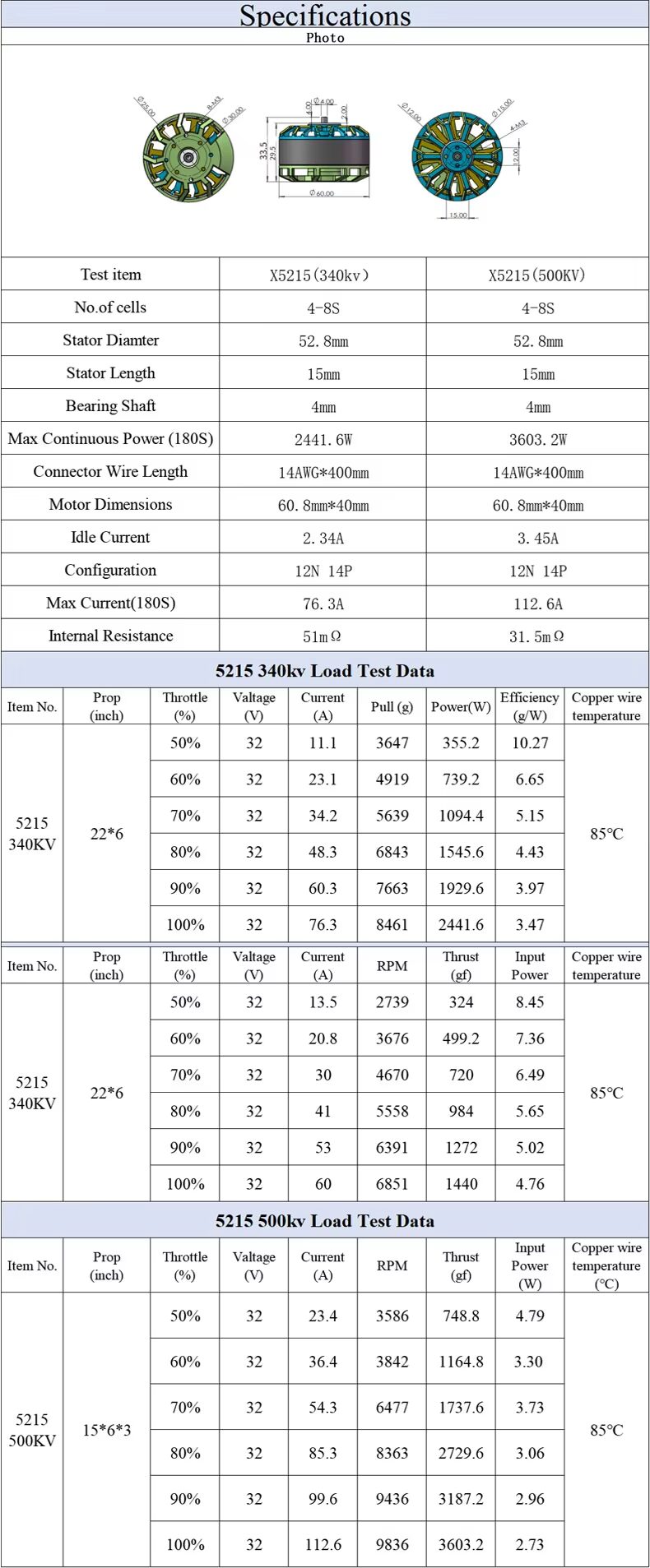

Additional information
| KV Rating | 340KV, 500KV |
|---|---|
| Motor Size | 5215 |
| Configuration | 12N14P |
| Stator Diameter | 52.8mm |
| Stator Length | 15.0mm |
| Voltage Range | 4-8S LiPo |
| Motor Dimensions | 60.8 x 40.0mm |
| Bearing Shaft | 4mm |
