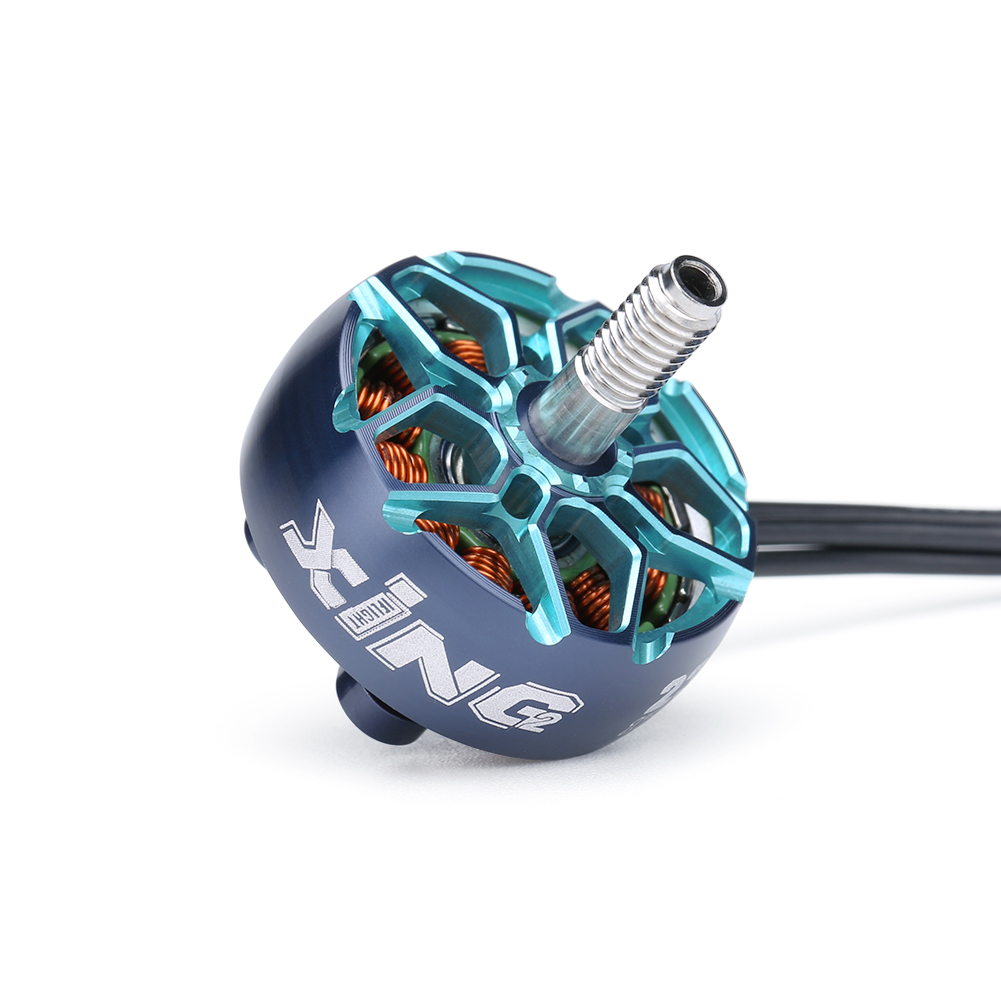

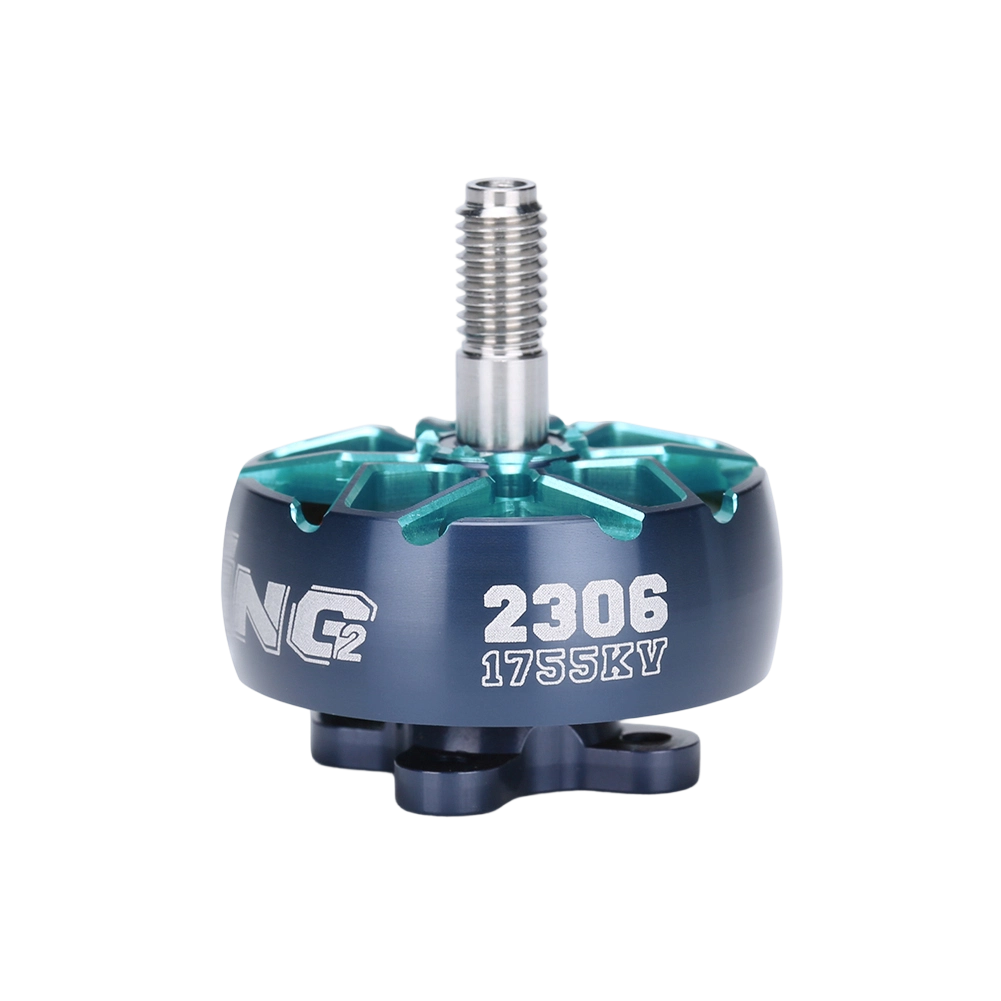

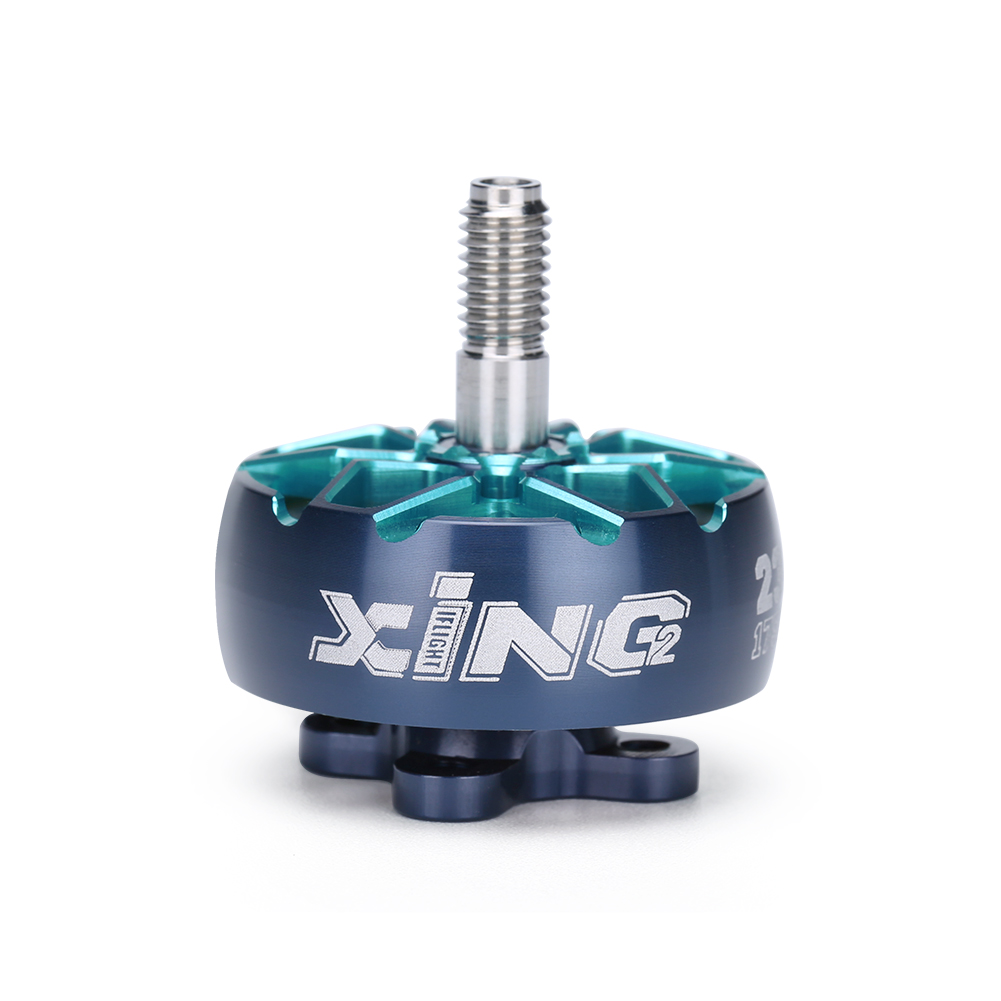

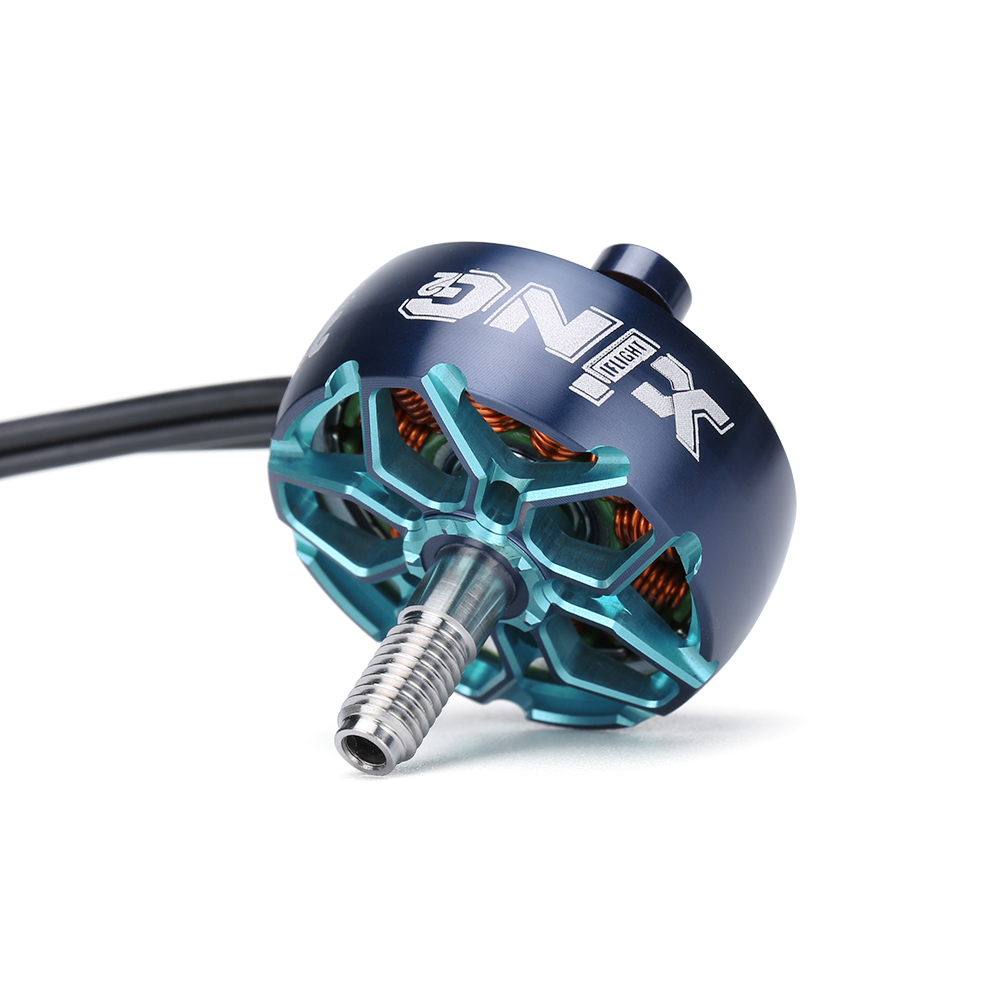

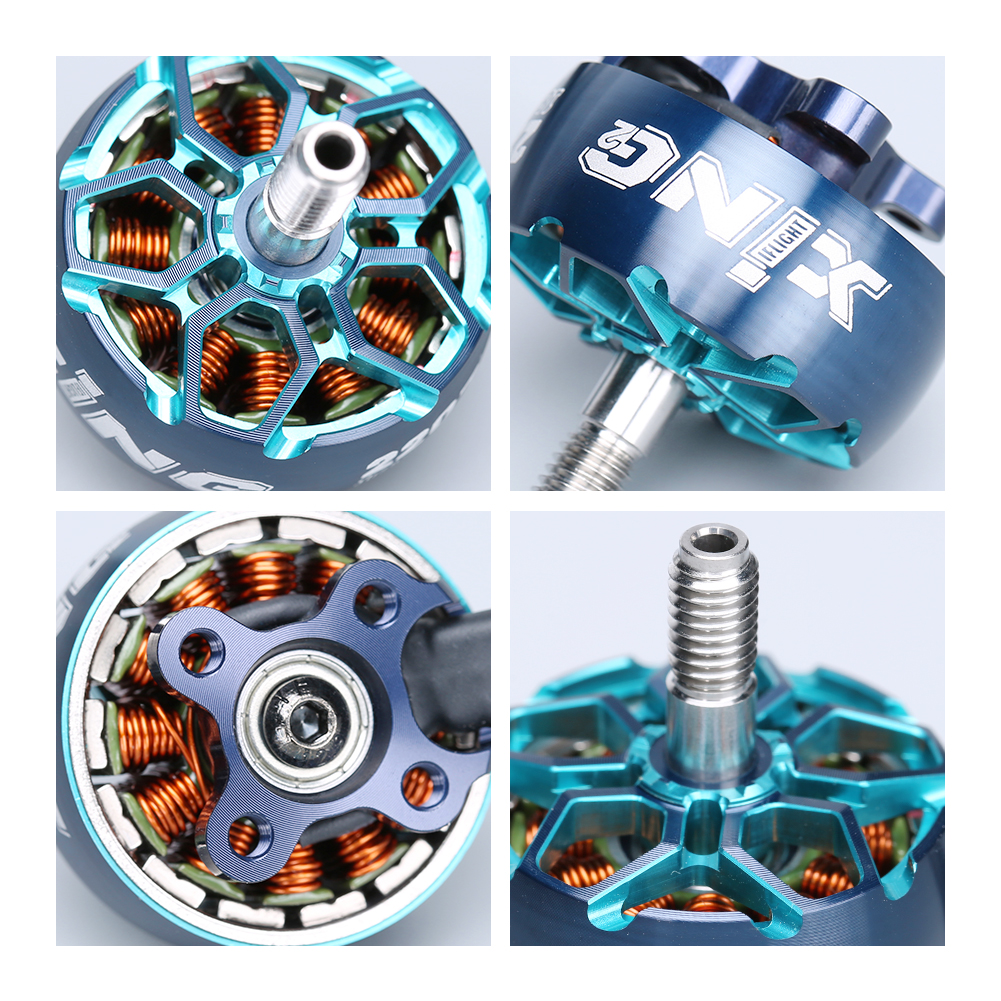

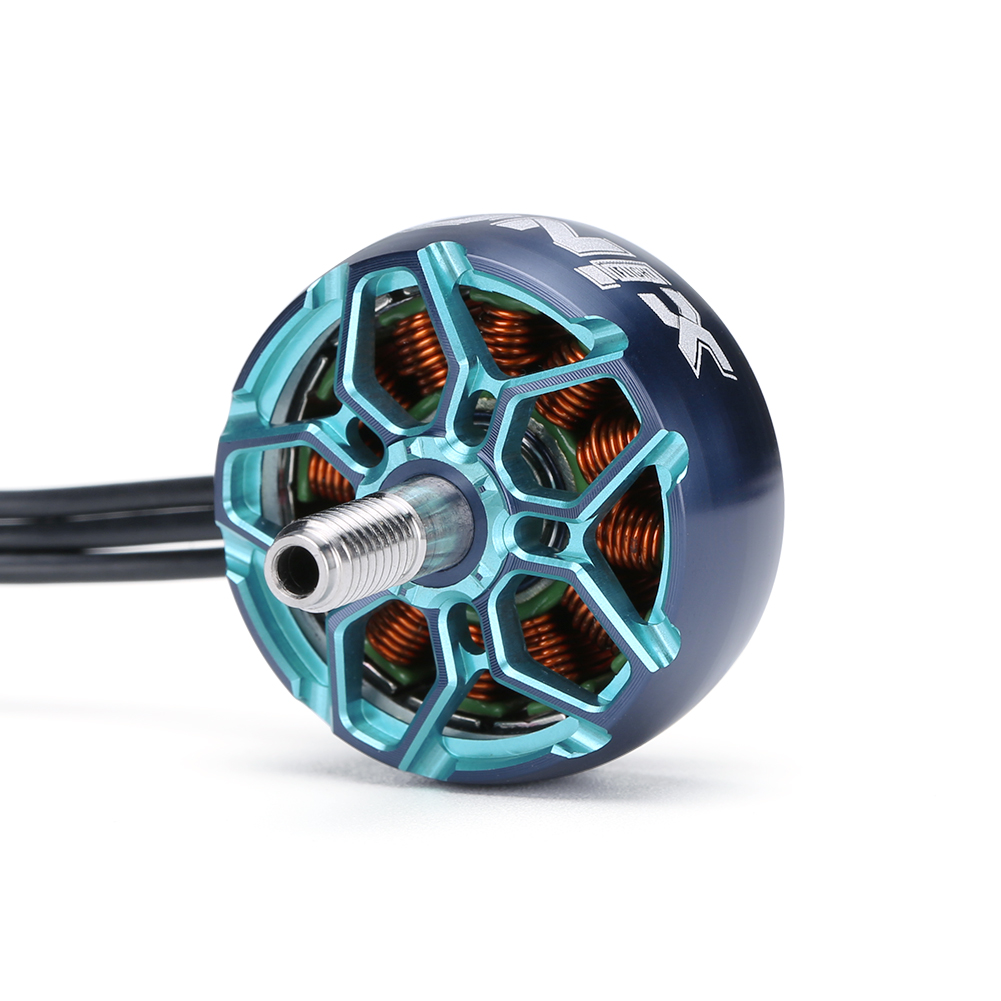

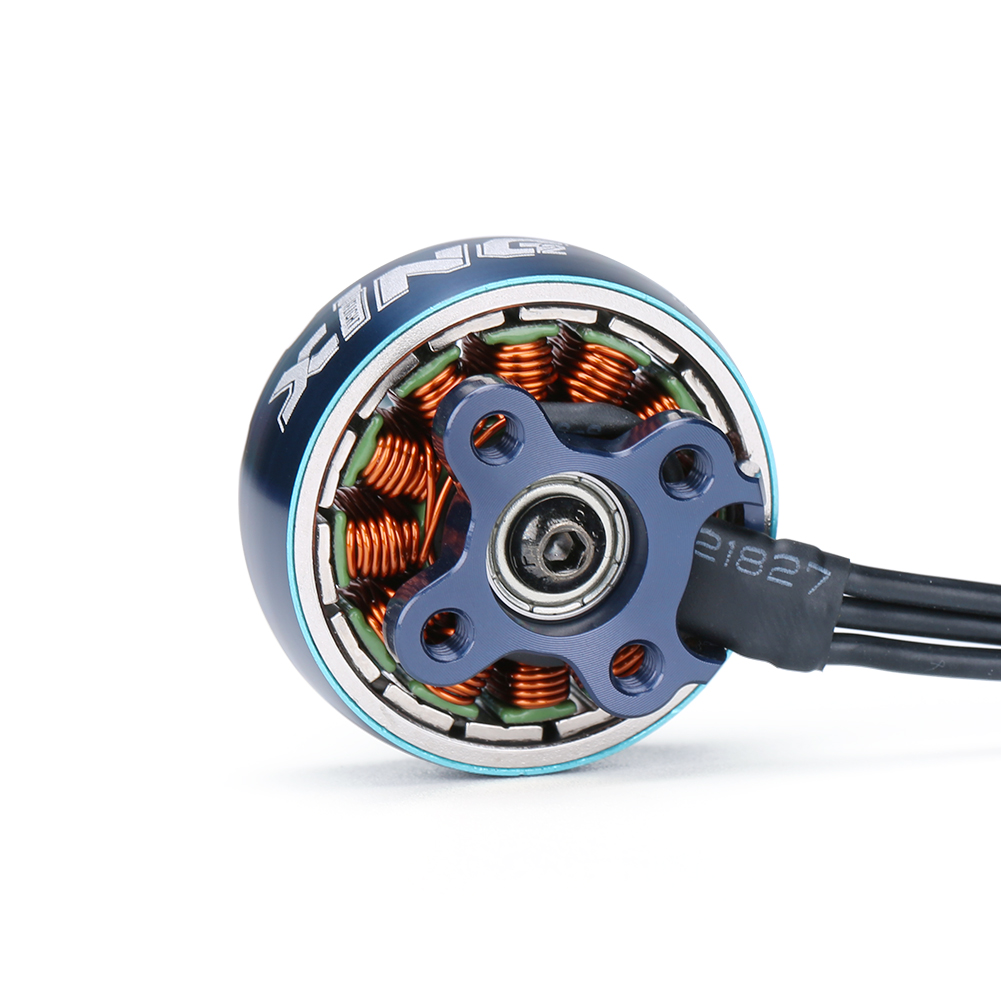

iFlight XING2 2306 FPV Racing Motor (1755KV / 2555KV)
$17.00
THE BENEFITS OF CHOOSING US
Description
iFlight XING2 2306 Motor (1755KV / 2555KV) – genuine iFlight XING2 series FPV racing motor with dual KV options and NSK bearings for high-performance freestyle and racing drones.
Specifications
| Model | XING2 2306 |
| KV Rating | 1755KV / 2555KV |
| Weight | 32.5g |
| Dimensions | Ф30 x 32.2mm |
| Internal Resistance | 76.4mΩ / 50mΩ |
| Input Voltage | 24V / 16V |
| Max Current | 36.21A / 51.30A |
| Max Power | 869W / 820.80W |
| Mounting | 4-hole, Ф16mm PCD, Ф3mm holes |
| Shaft | 5mm x 13.5mm |
| Lead Wire | 160mm / 20AWG |
| Magnet | N52H Arc Magnet |
| Structure | 12N14P |
| Bearing | NSK 9x4x4mm |

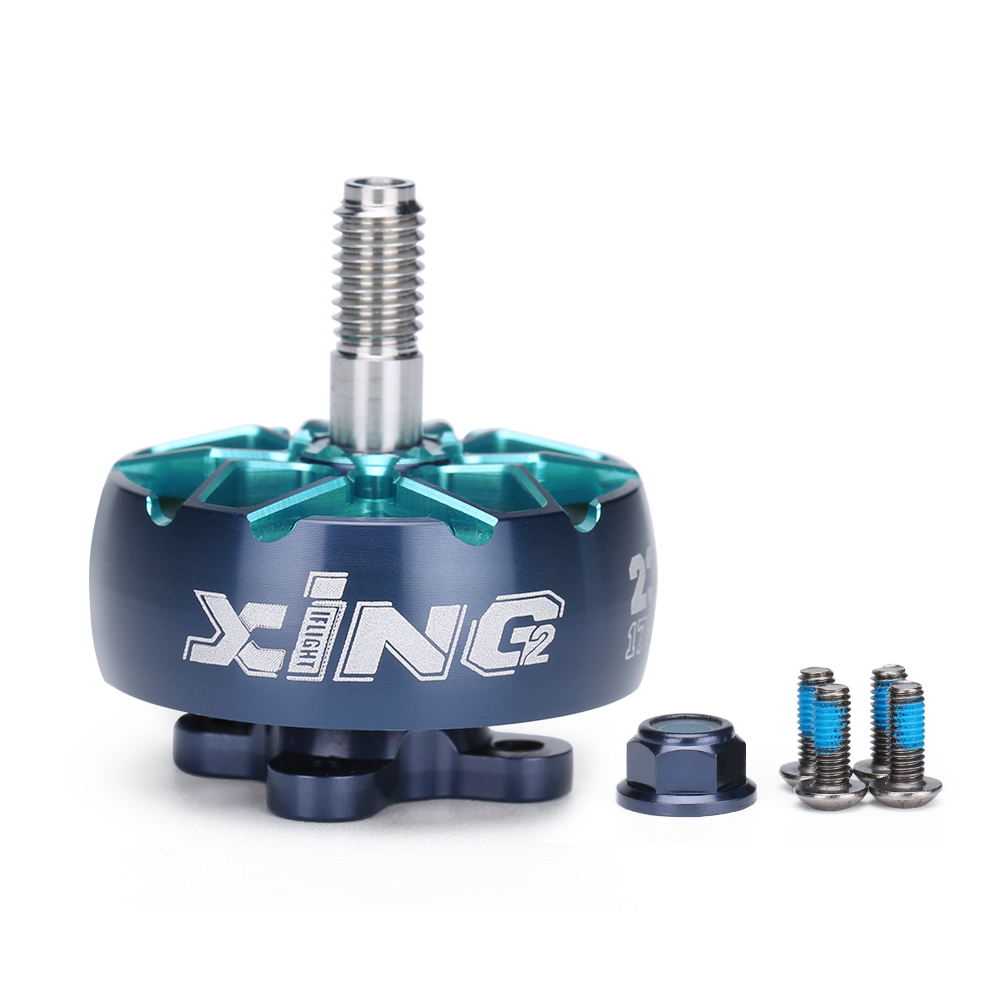

Package includes: 1x motor, 4x nickel-plated M3*8 screws, 1x M5 black flange nut.
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Same range: 2807 1300KV FPV Racing Bru | SF2306 1750KV FPV Racing B | Shu2306 FPV Freestyle Brus
Browse: FPV Racing & Freestyle Motors | all drone motors
Read: How to Choose FPV Drone Motors for 6S Long-Range Drones
Read: Outrunner vs Inrunner Brushless Motors | Brushless vs Brushed Motors for Drones
Frequently asked questions
What does 2306 mean in a motor model number?
2306 describes the stator: 23 mm diameter and 6 mm stack height. A larger stator gives more torque and heat capacity, which is what lets the motor turn a bigger propeller.
What propellers suit the XING2 2306 1755KV motor?
It is designed for 5-inch tri-blade propellers. Check the thrust table for your exact propeller and cell count before you size the power system.
What battery does the XING2 2306 1755KV run on?
4S to 6S LiPo. Confirm the pack continuous rating covers the hover current with margin.
What ESC does the XING2 2306 1755KV need?
Size the ESC above 36A and leave headroom for heat, especially in a confined frame.
Do you supply the XING2 2306 1755KV in bulk?
Yes. We supply samples for validation and then repeat bulk orders with custom KV, cable length, connectors and OEM packaging.
