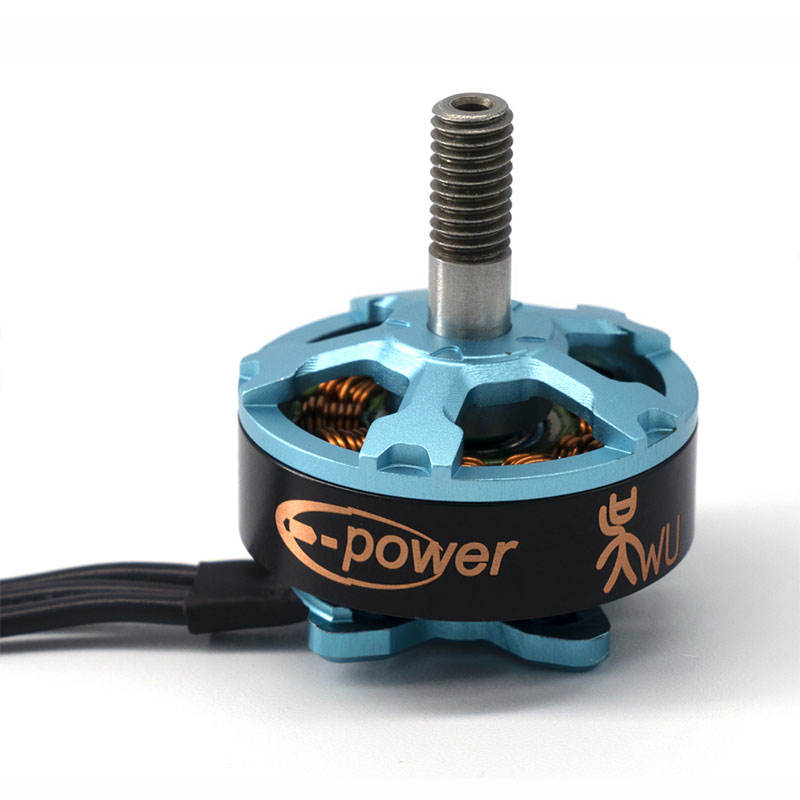

Wu2206 2400KV FPV Racing Brushless Motor
The Wu2206 2400KV brushless motor is designed for FPV racing drones, freestyle quadcopters, RC aircraft, and multi-rotor platforms. It delivers high torque, low noise, and reliable performance for drone assembly, repair, and upgrade projects. OEM/ODM customization and bulk supply are available.
THE BENEFITS OF CHOOSING US
Description

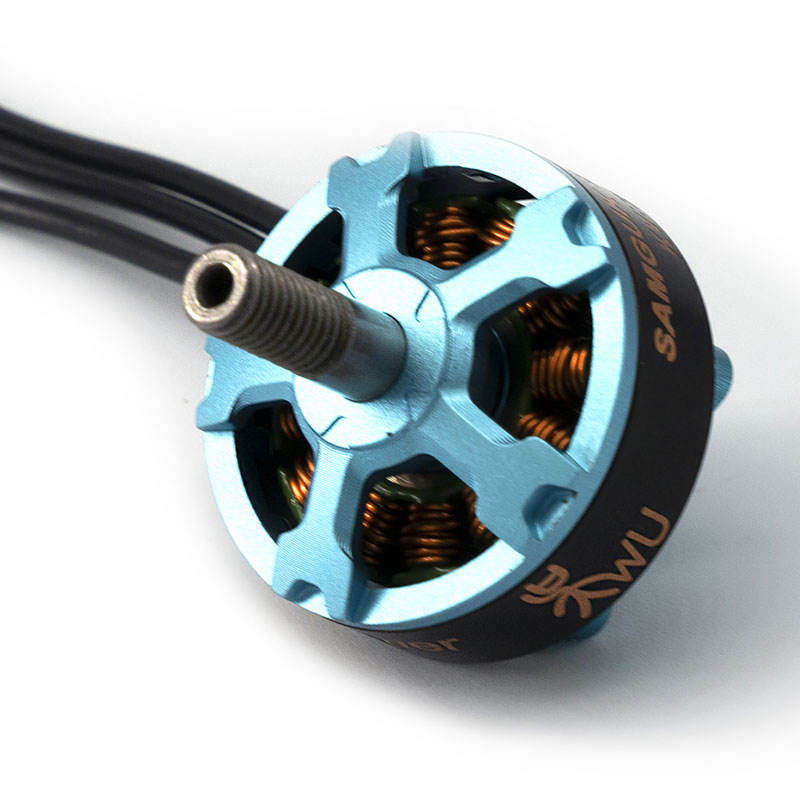

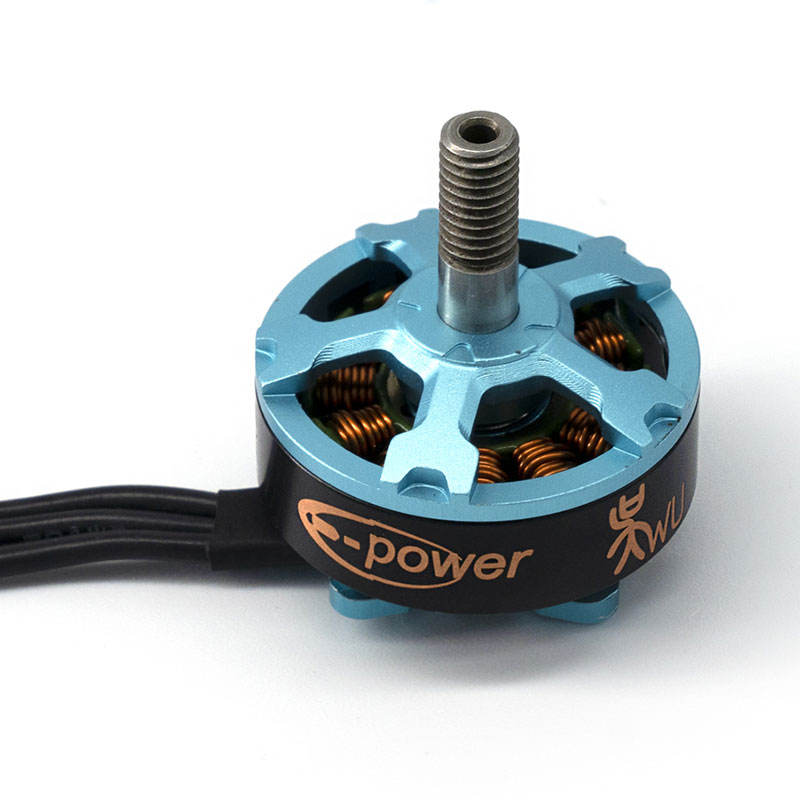

The Yadovex Wu2206 2400KV brushless motor is a high-performance FPV multi-rotor motor from the Samguk Series, designed for RC drones, racing quadcopters, and custom UAV applications. Featuring high torque output, low noise operation, and precision-built metal construction, it delivers stable and reliable performance for racing, freestyle, and general flight missions.

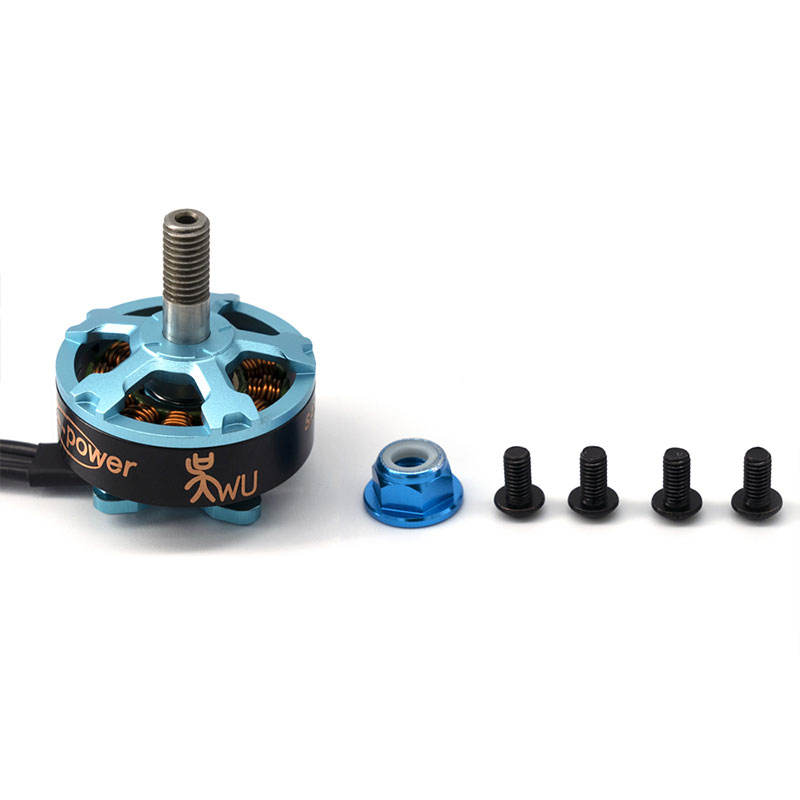

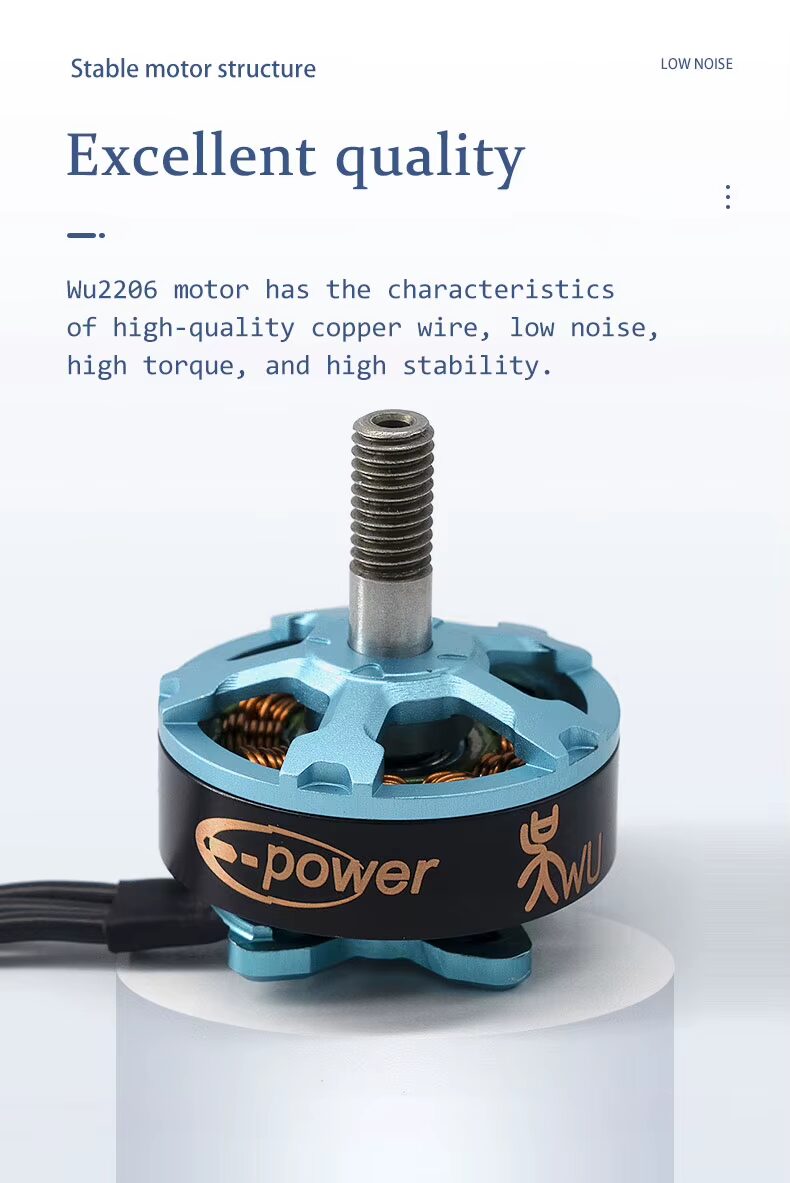

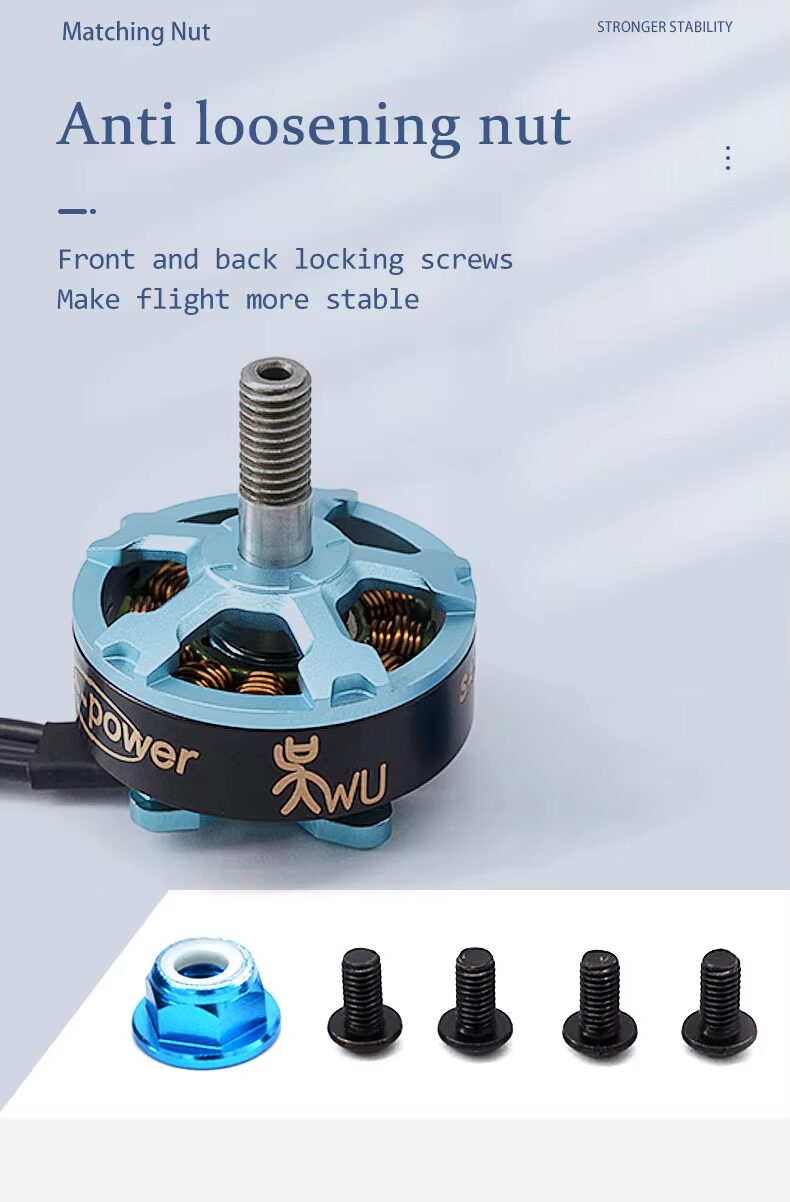

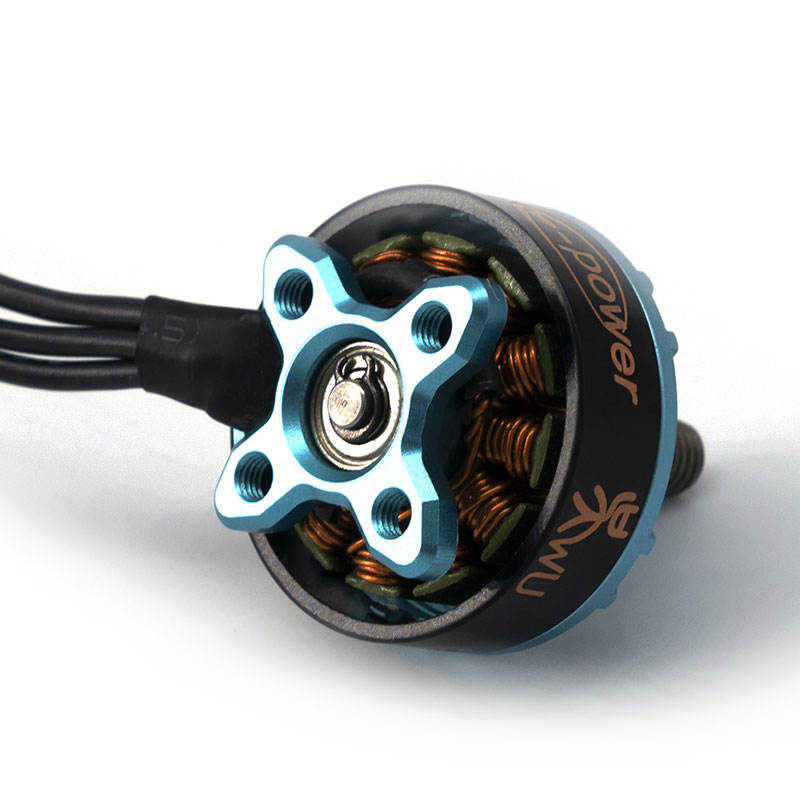

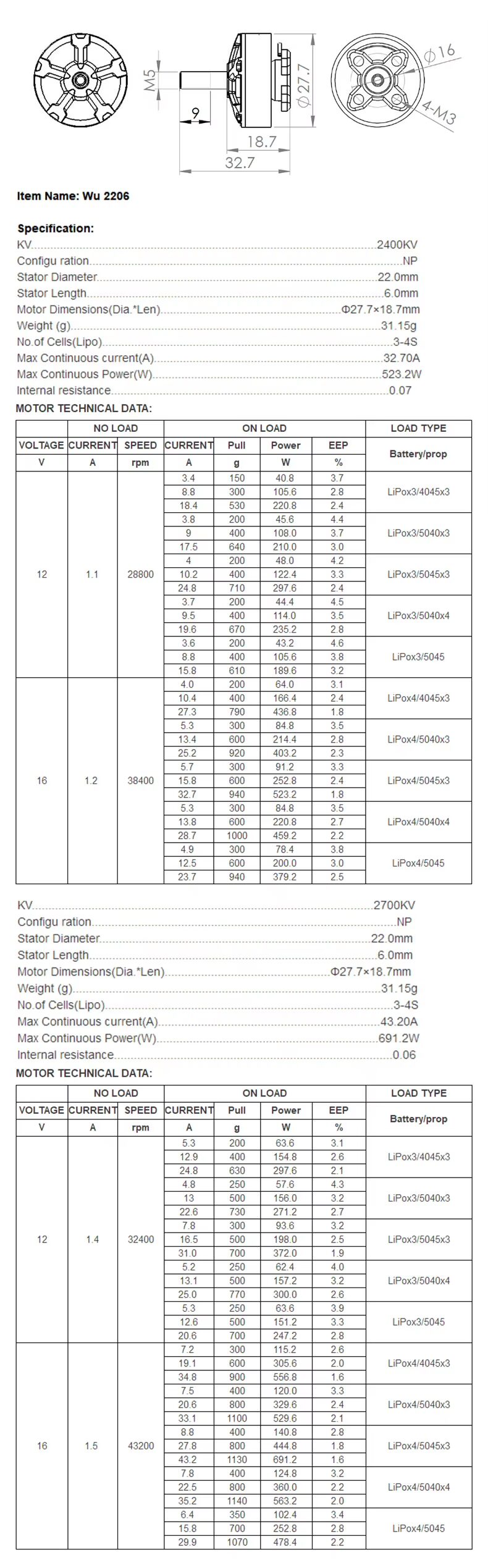

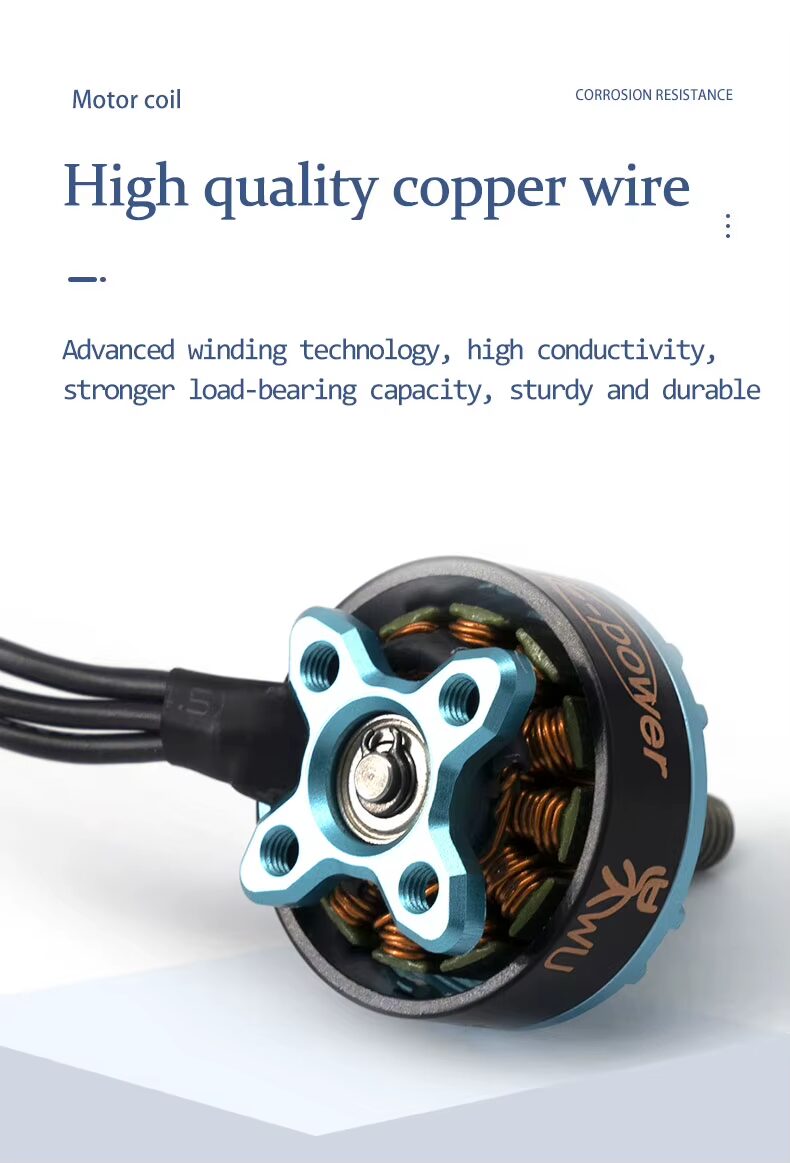

Built with a 22.0mm stator diameter, 6.0mm stator length, 27.7 x 18.7mm motor dimensions, and 31.1g weight, this motor features high-quality copper wire with advanced winding technology for high conductivity and corrosion resistance. Front and back anti-loosening nuts with matching locking screws ensure stable flight, while the durable metal parts and laser-engraved logo support brand customization for bulk orders.

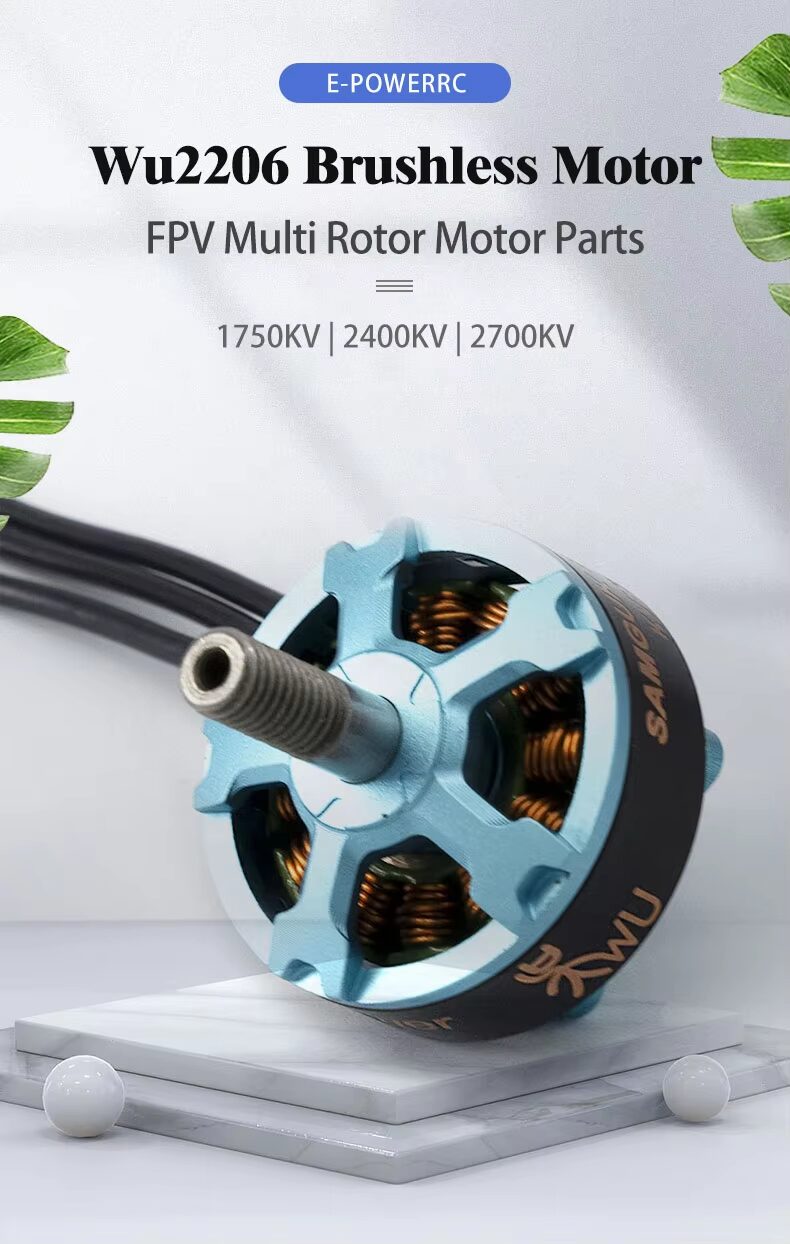

With a 2400KV rating and 3-4S LiPo battery compatibility, this motor provides strong power output and quick response for FPV racing drones, freestyle quadcopters, RC aircraft, multi-rotor platforms, DIY drone builds, and replacement or upgrade projects. The Samguk Series Wu2206 is also available in 1750KV and 2700KV versions to match different prop and battery configurations.
Yadovex supports OEM and ODM customization, including motor KV, shaft size, cable length, connector type, propeller adapter, logo marking, packaging, and bulk order requirements. If you need a reliable 2400KV brushless motor for production, repair, or distribution, we can help match the right configuration based on your application.
Need a custom solution or bulk quotation?
We support OEM/ODM customization, sample testing, and bulk supply for drone motors, servos, propellers, frames, and related UAV parts. Please contact us for product selection, pricing, and customization details.
WhatsApp: +86 134 3230 0164
WeChat: 13432300164
Product Details
This product is intended for lawful use only (aerial photography, agriculture, industrial inspection, education, and recreational FPV / RC applications). Please check and comply with all applicable local, national, and international laws and regulations in your country/region before purchase and use, including drone, aviation, export, and import regulations.
By purchasing, you confirm the product will be used for legal purposes only. Yadovex reserves the right to decline orders that we believe may be used for prohibited purposes. For our full policy, see our Disclaimer and Compliance & Export Control Policy.
Related models and guides
Same range: 2807 1300KV FPV Racing Bru | SF2306 1750KV FPV Racing B | Shu2306 FPV Freestyle Brus
Browse: FPV Racing & Freestyle Motors | all drone motors
Read: How to Choose FPV Drone Motors for 6S Long-Range Drones
Read: Outrunner vs Inrunner Brushless Motors | Brushless vs Brushed Motors for Drones
Frequently asked questions
What does the 2206 in Wu2206 mean?
2206 describes the stator: 22 mm diameter and 6 mm stack height. A larger stator gives more torque and heat capacity, which is what lets the motor turn a bigger propeller.
What propellers suit the 2206 2400KV motor?
It is designed for 5-inch tri-blade propellers. Check the thrust table for your exact propeller and cell count before you size the power system.
What battery does the 2206 2400KV run on?
3-4S LiPo. Confirm the pack continuous rating covers the hover current with margin.
What ESC does the 2206 2400KV need?
Size the ESC above 33A and leave headroom for heat, especially in a confined frame.
Do you supply the 2206 2400KV in bulk?
Yes. We supply samples for validation and then repeat bulk orders with custom KV, cable length, connectors and OEM packaging.
Related products in this range
3115 900KV Long Range FPV Brushless Motor | X4108 380KV Heavy Lift Brushless Motor | X4215 400KV Heavy Lift Brushless Motor

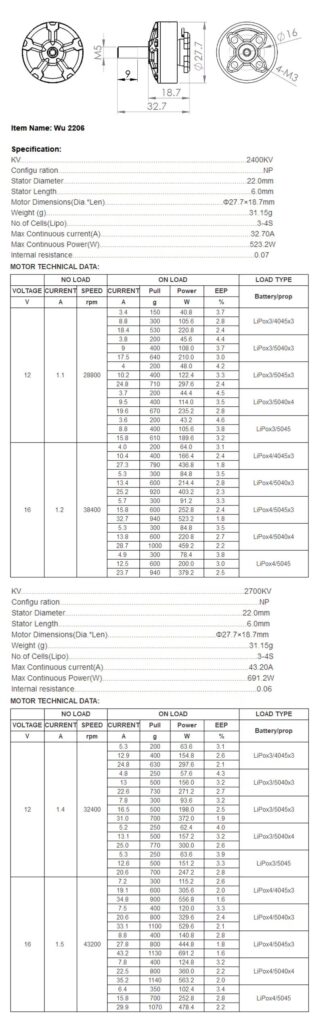

Additional information
| KV Rating | 2400KV |
|---|---|
| Motor Size | 2206 |
| Stator Diameter | 22.0mm |
| Stator Length | 6.0mm |
| Motor Weight | 31.1g |
| Voltage Range | 3-4S LiPo |
| Max Continuous Power | 523.2W |
| Max Continuous Current | 32.7A |
Quick Comparison
| Wu2206 2400KV FPV Racing Brushless Motor remove | 2807 1300KV FPV Racing Brushless Motor remove | X4215 400KV Heavy Lift Brushless Motor remove | 3112 900KV Long Range FPV Brushless Motor remove | X4320 350KV Heavy Lift Brushless Motor remove | X4315 Heavy Lift Brushless Motor (400KV / 500KV / 600KV) remove | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Wu2206 2400KV FPV Racing Brushless Motor remove | 2807 1300KV FPV Racing Brushless Motor remove | X4215 400KV Heavy Lift Brushless Motor remove | 3112 900KV Long Range FPV Brushless Motor remove | X4320 350KV Heavy Lift Brushless Motor remove | X4315 Heavy Lift Brushless Motor (400KV / 500KV / 600KV) remove | ||||||||||||||||||||||||||||||||
| Image |  |  |  |  |  |  | ||||||||||||||||||||||||||||||||
| SKU | WU2206-2400KV | 2807-1300KV | X4215-400KV | 3112-900KV | X4320-350KV | X4315-400KV | ||||||||||||||||||||||||||||||||
| Rating | ||||||||||||||||||||||||||||||||||||||
| Price | $8.10 | $30.10 | $9.60 | |||||||||||||||||||||||||||||||||||
| Stock | ||||||||||||||||||||||||||||||||||||||
| Weight | N/A | 0.0564 kg | N/A | N/A | N/A | N/A | ||||||||||||||||||||||||||||||||
| Dimensions | N/A | N/A | N/A | N/A | N/A | N/A | ||||||||||||||||||||||||||||||||
| Additional information |
|
|
|
| ||||||||||||||||||||||||||||||||||
| Description | The Wu2206 2400KV brushless motor is designed for FPV racing drones, freestyle quadcopters, RC aircraft, and multi-rotor platforms. It delivers high torque, low noise, and reliable performance for drone assembly, repair, and upgrade projects. OEM/ODM customization and bulk supply are available. | 2807-1300KV Brushless Motor – Compact Power for FPV The 2807-1300KV is a compact brushless motor built for 6–7 inch FPV platforms. With a Φ33.3×35.5mm form factor and 56.4g weight, it delivers 1085W max power — ideal for freestyle, racing, and general FPV builds. M5 shaft, 4-6S compatible. Custom specs available — contact us. | 4215 Brushless Motor — Heavy-duty metal outrunner motor for 13-inch FPV drones. Available in 400KV / 650KV. 224g all-metal construction, 3S–8S compatible, built for high-performance and heavy-lift applications. | The 3112-900KV is a high-performance brushless motor engineered for 7-9 inch FPV platforms. Its compact Φ37.5×42mm form factor and lightweight 86g design deliver an impressive 1454W max power output, making it an ideal choice for freestyle, racing, and mid-range cruiser builds | The Yadovex X4320 350KV Brushless Motor is designed for FPV drones, aerial photography, heavy-lift multirotors. OEM/ODM customization and bulk supply are available. | The Yadovex X4315 Brushless Motor (400KV/500KV/600KV) is designed for FPV drones, multirotors, UAV platforms. OEM/ODM customization and bulk supply are available. | ||||||||||||||||||||||||||||||||
| Add to cart |
